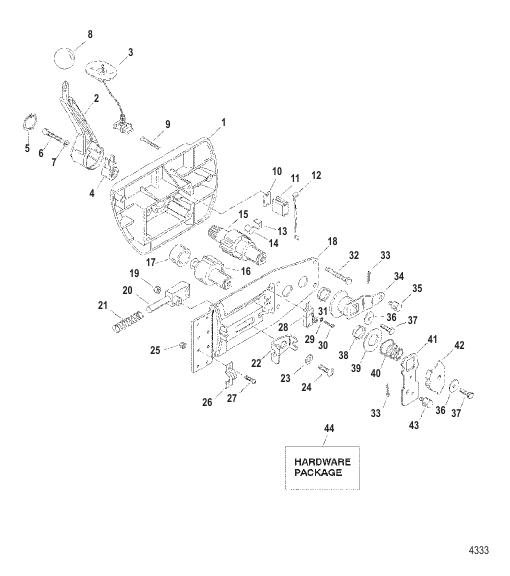

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
802755 |
REMOTE CONTROL ASSEMBLY Complete
|
1 |
disc.
|
| 10 |
NSS |
NOT SOLD SEPARATE Stop Insert - NOTE: Order 802755 Complete Control Assembly
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Retainer - NOTE: Order 802755 Complete Control Assembly
|
1 |
|
| 12 |
NSS |
NOT SOLD SEPARATE Detent Spring - NOTE: Order 802755 Complete Control Assembly
|
1 |
|
| 13 |
NSS |
NOT SOLD SEPARATE Detent Shoe - NOTE: Order 802755 Complete Control Assembly
|
1 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Detent Roller - NOTE: Order 802755 Complete Control Assembly
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Throttle Shaft - NOTE: Order 802755 Complete Control Assembly
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE Clutch Gear - NOTE: Order 802755 Complete Control Assembly
|
1 |
|
| 17 |
NSS |
NOT SOLD SEPARATE Gear Bushing - NOTE: Order 802755 Complete Control Assembly
|
1 |
|
| 18 |
803653 |
HANGER ASSEMBLY
|
1 |
disc.
|
| 19 |
13438 |
NUT (.250-28)
|
1 |
superseded
|
| 2 |
803647 |
LEVER ASSEMBLY Hand
|
1 |
disc.
|
| 20 |
820688 |
BLOCK Dwell
|
1 |
disc.
|
| 21 |
820689 |
SPRING Dwell Block
|
1 |
disc.
|
| 22 |
820687 |
SWIVEL BRACKET
|
1 |
disc.
|
| 23 |
820686 |
WASHER
|
1 |
disc.
|
| 24 |
820685 |
SCREW (.250-28 x .875)
|
1 |
disc.
|
| 25 |
852097 |
NUT (#10-24)
|
2 |
disc.
|
| 26 |
852095 |
CLAMP Cable
|
1 |
disc.
|
| 27 |
852094 |
SCREW (#10-24 x .500)
|
2 |
|
| 28 |
820693 |
SWITCH ASSEMBLY
|
1 |
disc.
|
| 29 |
820694 |
LOCKWASHER Internal (#4)
|
2 |
disc.
|
| 3 |
NSS |
NOT SOLD SEPARATE Shift Lever Assembly
|
1 |
|
| 30 |
803654 |
SCREW (#4 x .625)
|
2 |
disc.
|
| 31 |
803655 |
BUSHING
|
1 |
disc.
|
| 32 |
803656 |
SCREW
|
4 |
disc.
|
| 33 |
F17149 |
COTTER PIN
|
2 |
disc.
|
| 34 |
820692 |
ARM Throttle Output
|
1 |
disc.
|
| 35 |
F17016 |
PIVOT Cable Terminal - Brass
|
1 |
disc.
|
| 36 |
F17036 |
WASHER
|
2 |
disc.
|
| 37 |
852092 |
SCREW (.250-28 x .500)
|
2 |
disc.
|
| 38 |
803655 |
BUSHING
|
1 |
disc.
|
| 39 |
803657 |
WASHER Thrust
|
1 |
disc.
|
| 4 |
NSS |
NOT SOLD SEPARATE Interlock Insert
|
1 |
|
| 40 |
803658 |
SPRING
|
1 |
disc.
|
| 41 |
820690 |
ARM Shift
|
1 |
disc.
|
| 42 |
820691 |
CAM Switch Actuation
|
1 |
disc.
|
| 43 |
852096 |
PIVOT Cable Terminal - Stainless Steel
|
1 |
disc.
|
| 44 |
803659 |
HARDWARE PACKAGE With Template
|
1 |
disc.
|
| 5 |
803648 |
INSERT Hub
|
1 |
disc.
|
| 6 |
803649 |
SCREW
|
1 |
disc.
|
| 7 |
803650 |
WASHER
|
1 |
disc.
|
| 8 |
F17081 |
BALL Black
|
1 |
disc.
|
| 9 |
803651 |
SCREW (#10 x 1.250)
|
2 |
disc.
|
| 9 |
803652 |
SCREW (#10 x 1.500)
|
1 |
disc.
|
