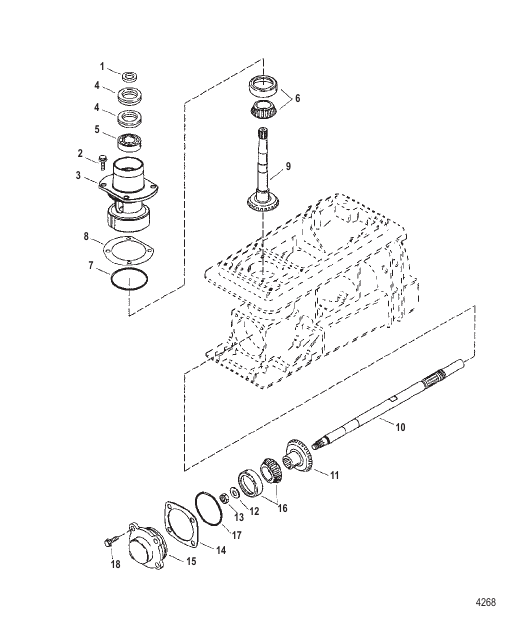

| # | Part Number | Description | Qty | Status |
|---|
| - |
889424A1 |
SEAL/GASKET SET Jet Drive Housing - NOTE: See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown
|
1 |
|
| - |
878228A2 |
HOUSING ASSEMBLY Jet Drive - Complete - NOTE: No Impeller
|
1 |
disc.
|
| 1 |
30271 |
RING Rubber
|
1 |
superseded
|
| 10 |
888499T |
SHAFT Impeller
|
1 |
|
| 11 |
881927 |
GEAR Impeller Shaft
|
1 |
|
| 12 |
832812 |
WASHER
|
1 |
|
| 13 |
818591 |
NUT (M14)
|
1 |
|
| 14 |
878064002 |
SHIM (.002)
|
AR |
|
| 14 |
878064004 |
SHIM (.004)
|
AR |
|
| 14 |
878064005 |
SHIM (.005)
|
AR |
|
| 14 |
878064007 |
SHIM (.0075)
|
AR |
|
| 14 |
878064010 |
SHIM (.010)
|
AR |
|
| 15 |
830878A1 |
COVER ASSEMBLY Impeller Shaft
|
1 |
|
| 16 |
38356A1 |
BEARING SET Cup And Cone
|
1 |
|
| 17 |
841807 |
O-RING (3.500 x .103)
|
1 |
|
| 18 |
4010725 |
SCREW (M8 x 25)
|
4 |
|
| 2 |
4010725 |
SCREW (M8 x 25)
|
4 |
|
| 3 |
881217A1 |
HOUSING ASSEMBLY Pinion Shaft
|
1 |
|
| 4 |
826210 |
SEAL Pinion Shaft Housing
|
2 |
|
| 5 |
820292 |
BEARING Ball
|
1 |
|
| 6 |
38356A1 |
BEARING SET Cup And Cone
|
1 |
|
| 7 |
54030 |
O-RING (2.987 x .103)
|
1 |
|
| 8 |
877623002 |
SHIM (.002)
|
AR |
|
| 8 |
877623004 |
SHIM (.004)
|
AR |
|
| 8 |
877623005 |
SHIM (.005)
|
AR |
|
| 8 |
877623007 |
SHIM (.0075)
|
AR |
|
| 8 |
877623010 |
SHIM (.010)
|
AR |
|
| 9 |
881928T |
GEAR/SHAFT ASSEMBLY Pinion
|
1 |
|
