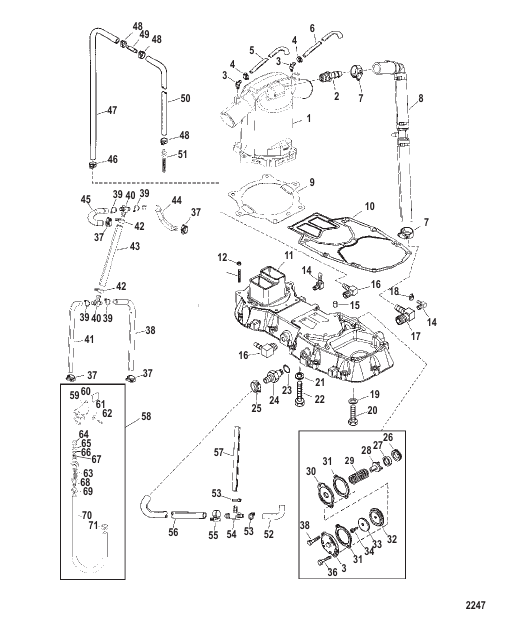

| # | Part Number | Description | Qty | Status |
|---|
| - |
889439A01 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| - |
889424A1 |
SEAL/GASKET SET Jet Drive Housing - NOTE: See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown
|
1 |
|
| - |
889437A2 |
POWERHEAD ASSEMBLY
|
1 |
disc.
|
| 1 |
879890A3 |
CHAMBER KIT Expansion
|
1 |
|
| 10 |
884428 |
GASKET Block To Adaptor Plate
|
1 |
superseded
|
| 11 |
880040 |
ADAPTOR Engine
|
1 |
|
| 12 |
826365 |
NUT (M8)
|
6 |
|
| 13 |
884824 |
STUD (M8 x 50)
|
6 |
|
| 14 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
2 |
|
| 15 |
43044 |
PIN Dowel - Without Hole (.375 x .625) Locating
|
2 |
|
| 16 |
8533394 |
FITTING 90 Degree
|
2 |
|
| 17 |
8603462 |
ELBOW 90 Degree
|
1 |
|
| 18 |
815504104 |
CLAMP Worm Gear
|
1 |
|
| 19 |
4002319 |
WASHER
|
8 |
|
| 2 |
42683 |
CONNECTOR (.750-14)
|
1 |
|
| 20 |
40001209 |
SCREW (M10 x 60)
|
8 |
|
| 21 |
4002319 |
WASHER
|
2 |
|
| 22 |
40001228 |
SCREW (M10 x 120)
|
2 |
|
| 23 |
45711 |
O-RING (.612 x .103) Strainer Fitting
|
1 |
|
| 24 |
884491 |
FITTING Strainer
|
1 |
disc.
|
| 25 |
815504206 |
CLAMP Worm Gear
|
1 |
|
| 26 |
814190 |
CARRIER
|
1 |
|
| 27 |
814191 |
GROMMET
|
1 |
|
| 28 |
814189 |
POPPET
|
1 |
|
| 29 |
64878 |
SPRING (Black)
|
1 |
|
| 3 |
884591 |
FITTING 45 Degree (1.25-27)
|
2 |
|
| 30 |
65664A1 |
PLATE ASSEMBLY Relief Valve
|
1 |
|
| 31 |
88907 |
GASKET
|
2 |
superseded
|
| 32 |
648771 |
DIAPHRAGM
|
1 |
|
| 33 |
76451 |
WASHER
|
1 |
|
| 34 |
69570 |
SCREW (#10-16 x .750)
|
1 |
|
| 35 |
65663A2 |
COVER ASSEMBLY Relief Valve - Includes One Gasket #31
|
1 |
superseded
|
| 36 |
81893435 |
SCREW (M8 x 35)
|
2 |
|
| 37 |
888988014 |
CLAMP (25.6 mm)
|
4 |
superseded
|
| 38 |
888154 |
HOSE Molded
|
1 |
disc.
|
| 39 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
| 4 |
815504104 |
CLAMP Worm Gear
|
2 |
|
| 40 |
887775 |
FITTING Tee
|
2 |
disc.
|
| 41 |
888155 |
HOSE Molded
|
1 |
disc.
|
| 42 |
815504310 |
CLAMP Worm Gear
|
2 |
|
| 43 |
4285069 |
HOSE (44.00 Inches Bulk) Cut 11.500 Inches
|
1 |
superseded
|
| 44 |
888152 |
HOSE Molded
|
1 |
disc.
|
| 45 |
888153 |
HOSE Molded
|
1 |
|
| 46 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 47 |
85861079 |
HOSE (9.00 Feet Bulk) Cut 42.00 Inches - Siphon
|
1 |
disc.
|
| 48 |
816311T |
TIE STRAP (8.00 Inches)
|
3 |
|
| 49 |
858456 |
SIPHON BREAK
|
1 |
|
| 5 |
885340 |
HOSE Molded (19.30 Inches)
|
1 |
disc.
|
| 50 |
85861079 |
HOSE (9.00 Feet Bulk) Cut 18.00 Inches - Siphon
|
1 |
disc.
|
| 51 |
8348084 |
STRAINER Siphon Hose
|
1 |
|
| 52 |
858807 |
HOSE To Fuel Rail Bottom
|
1 |
|
| 53 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 54 |
884273 |
CONNECTOR Tee
|
1 |
disc.
|
| 55 |
815504206 |
CLAMP Worm Gear
|
1 |
|
| 56 |
884496 |
HOSE Molded To Compressor
|
1 |
|
| 57 |
85833939 |
HOSE (17.00 Inches Bulk) Cut As Required - To Strainer Fitting
|
1 |
|
| 58 |
820543A6 |
ADAPTOR KIT Flushing Complete - NOTE: 250 DFI Models Only
|
1 |
|
| 59 |
850160 |
CLIP Flushing Assembly Holder
|
1 |
disc.
|
| 6 |
885341 |
HOSE Molded (10.24 Inches)
|
1 |
disc.
|
| 60 |
850390 |
DECAL Flushing Adaptor
|
1 |
|
| 61 |
4002314 |
WASHER
|
3 |
|
| 62 |
88417 |
SCREW (#12-24 x .620)
|
3 |
|
| 63 |
820543A5 |
ADAPTER ASSEMBLY Flushing
|
1 |
|
| 64 |
821908 |
PLUG Top
|
1 |
|
| 65 |
821915 |
WASHER
|
1 |
|
| 66 |
30641 |
O-RING (.299 x .103)
|
1 |
|
| 67 |
8219631 |
CHECK VALVE
|
1 |
|
| 68 |
33066 |
CONNECTOR (.500-14) Straight - Brass
|
1 |
|
| 69 |
815504206 |
CLAMP Worm Gear
|
1 |
|
| 7 |
815504310 |
CLAMP Worm Gear
|
2 |
|
| 70 |
855258112 |
HOSE (60.00 Inches Bulk) Cut As Required
|
1 |
|
| 71 |
815504206 |
CLAMP Worm Gear
|
1 |
|
| 8 |
42850A3 |
HOSE ASSEMBLY
|
1 |
|
| 9 |
880738 |
GASKET Expansion Chamber To Adaptor
|
1 |
|
