| # | Part Number | Description | Qty | Status |
|---|
| - |
889439A01 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| - |
889437A2 |
POWERHEAD ASSEMBLY
|
1 |
disc.
|
| 1 |

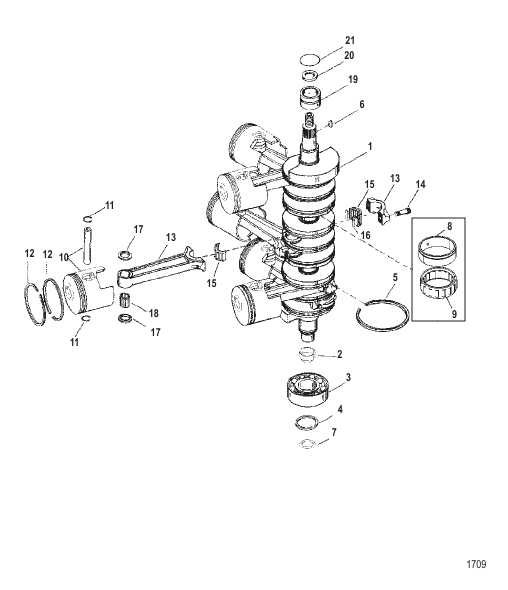

9784A11 |
CRANKSHAFT ASSEMBLY
|
1 |
|
| 10 |
881055T3 |
PISTON ASSEMBLY Standard - Starboard
|
3 |
superseded
|
| 10 |
881054T3 |
PISTON ASSEMBLY Standard - Port
|
3 |
superseded
|
| 11 |
841202 |
RING Lock
|
12 |
|
| 12 |
858772A12 |
RING SET Piston Standard
|
1 |
|
| 13 |
822373A7 |
CONNECTING ROD ASSEMBLY
|
6 |
superseded
|
| 14 |
94320 |
SCREW (.375-24 x 1.250)
|
12 |
|
| 15 |
43012A1 |
BEARING/CAGE KIT 2 Cages - 16 Rollers Per Kit
|
6 |
superseded
|
| 16 |
NSS |
NOT SOLD SEPARATE Needle Rollers
|
96 |
|
| 17 |
88263 |
THRUST WASHER
|
12 |
|
| 18 |
88258 |
NEEDLE Roller Bearing
|
204 |
superseded
|
| 19 |
816773A2 |
BEARING ASSEMBLY Main - Upper
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Wear Sleeve
|
1 |
|
| 20 |
859093 |
SEAL Oil
|
1 |
|
| 21 |
823683 |
O-RING (1.989 x .070)
|
1 |
|
| 3 |
67923T |
BEARING Ball Lower
|
1 |
|
| 4 |
67446 |
RING Retaining
|
1 |
|
| 5 |
816106 |
RING Seal
|
7 |
superseded
|
| 6 |
91800 |
KEY Woodruff
|
1 |
|
| 7 |
35126 |
O-RING (.859 x .139)
|
1 |
|
| 8 |
88270A1 |
RACE ASSEMBLY Bearing - Center Main
|
2 |
superseded
|
| 9 |
88269T |
BEARING ASSEMBLY Rollers
|
2 |
|
