| # | Part Number | Description | Qty | Status |
|---|
| 1 |
889437A2 |
POWERHEAD ASSEMBLY Complete
|
1 |
disc.
|
| 1 |
9811T87 |

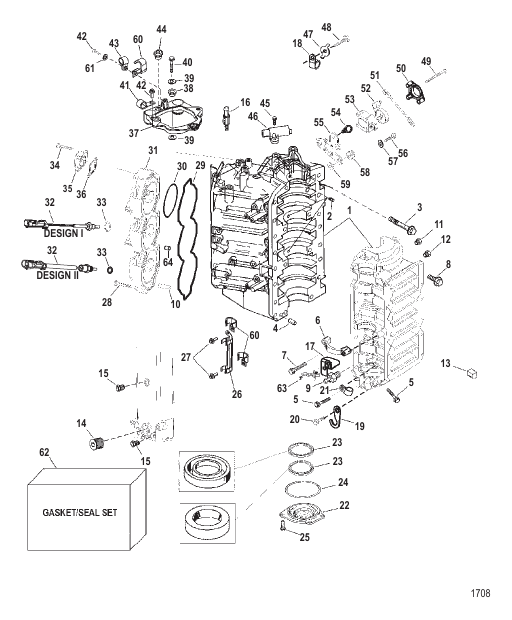

CYLINDER BLOCK ASSEMBLY
|
1 |
superseded
|
| 10 |
8248577 |
DEFLECTOR Water
|
6 |
|
| 11 |
36382 |
FITTING (.250-18 x .62) Brass
|
1 |
|
| 12 |
328022 |
PLUG Pipe (.125-27) Brass
|
1 |
|
| 13 |
850309 |
PLUG Stop
|
6 |
superseded
|
| 14 |
428611 |
FITTING Pipe - Brass (.750-14)
|
1 |
superseded
|
| 15 |
328022 |
PLUG Pipe (.125-27) Brass
|
2 |
|
| 16 |
8405101 |
PIN Special - Flywheel Cover
|
1 |
|
| 17 |
8589521 |
BRACKET Starter
|
1 |
disc.
|
| 18 |
858902 |
CLAMP Cable Support (.562)
|
1 |
|
| 19 |
8588641 |
RETAINER Oil Line
|
1 |
|
| 2 |
67296 |
PIN Center Main
|
3 |
superseded
|
| 20 |
81893420 |
SCREW (M8 x 20)
|
1 |
|
| 21 |
859172 |
CLAMP (.625)
|
2 |
|
| 22 |
9787A4 |
END CAP ASSEMBLY Lower
|
1 |
|
| 23 |
8308981 |
SEAL Oil
|
2 |
|
| 24 |
62700 |
O-RING (3.237 x .103)
|
1 |
|
| 25 |
82130020 |
SCREW (M6 x 20)
|
4 |
|
| 26 |
8266241 |
CLAMP Connector
|
1 |
|
| 27 |
82130012 |
SCREW (M6 x 12)
|
2 |
|
| 28 |
859096 |
SCREW (M8 x 50)
|
40 |
superseded
|
| 29 |
818574 |
SEAL Cylinder Head
|
2 |
|
| 3 |
82446180 |
SCREW (M10 x 80)
|
8 |
|
| 30 |
884391 |
SEAL Cylinder Bore
|
6 |
|
| 31 |
858485T05 |
CYLINDER HEAD ASSEMBLY - Starboard
|
1 |
|
| 31 |
858483T05 |
CYLINDER HEAD ASSEMBLY - Port
|
1 |
|
| 32 |
858535 |
SENSOR ASSEMBLY Temperature - Design I
|
2 |
superseded
|
| 32 |
885342001 |
SENSOR ASSEMBLY Temperature - Design II
|
2 |
superseded
|
| 33 |
62702 |
O-RING (.301 x .070) - Design I
|
2 |
superseded
|
| 33 |
888814 |
O-RING (.351 x .072) - Design II
|
1 |
superseded
|
| 34 |
82130025 |
SCREW (M6 x 25)
|
4 |
|
| 35 |
885562A1 |
COVER ASSEMBLY With Fitting - Port
|
1 |
disc.
|
| 35 |
885562A2 |
COVER ASSEMBLY With Fitting - Starboard
|
1 |
disc.
|
| 36 |
8503181 |
GASKET Cover
|
2 |
|
| 37 |
857186A1 |
PLATE ASSEMBLY Alternator
|
1 |
superseded
|
| 38 |
855729 |
MOUNT
|
3 |
|
| 39 |
855725 |
WASHER
|
6 |
|
| 4 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
1 |
|
| 40 |
82130145 |
SCREW (M10 x 45)
|
3 |
|
| 41 |
858951 |
J CLIP
|
1 |
|
| 42 |
82130012 |
SCREW (M6 x 12)
|
2 |
|
| 43 |
858424 |
CLAMP
|
1 |
|
| 44 |
19565 |
GROMMET Split
|
1 |
superseded
|
| 45 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
2 |
|
| 46 |
8283582 |
SENSOR Crankshaft Position
|
1 |
superseded
|
| 47 |
858950 |
WASHER
|
1 |
disc.
|
| 48 |
82130016 |
SCREW (M6 x 16)
|
1 |
|
| 49 |
40011113 |
SCREW (M5 x 45) Stainless Steel
|
3 |
|
| 5 |
82130012 |
SCREW (M6 x 12)
|
2 |
|
| 50 |
8582261 |
COVER Throttle Position Indicator
|
1 |
|
| 51 |
883082 |
LINK Throttle Position Indicator
|
1 |
superseded
|
| 52 |
883081 |
LEVER Throttle Position Indicator
|
1 |
|
| 53 |
83295211 |
INDICATOR Throttle Position
|
1 |
superseded
|
| 54 |
858932 |
CLIP
|
1 |
|
| 55 |
8544862 |
BRACKET
|
1 |
|
| 56 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
| 57 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 58 |
834985 |
GROMMET
|
3 |
superseded
|
| 59 |
856954 |
BUSHING
|
3 |
|
| 6 |
8569662 |
BRACKET Starter
|
2 |
superseded
|
| 60 |
65292 |
J CLIP
|
3 |
superseded
|
| 61 |
36001 |
WASHER
|
1 |
|
| 62 |
889439A01 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| 63 |
859736 |
CLIP Cable Support
|
1 |
|
| 64 |
63779 |
PIN Dowel (.250 x .625) If Required
|
4 |
|
| 7 |
81893440 |
SCREW (M8 x 40)
|
4 |
|
| 8 |
81893435 |
SCREW (M8 x 35)
|
14 |
|
| 9 |
8781051 |
CHECK VALVE
|
1 |
|
