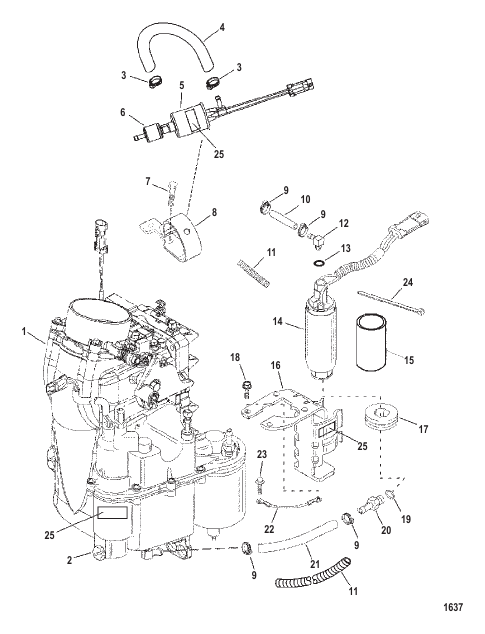

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
884826T01 |
AIR HANDLER ASSEMBLY - NOTE: See Air Handler Components Section For Parts Breakdown
|
1 |
disc.
|
| 10 |
889442 |
HOSE Molded
|
1 |
|
| 11 |
85686953 |
SLEEVE (27.00 Inches Bulk) Cut As Required - Insulation
|
AR |
disc.
|
| 12 |
883559 |
FITTING Elbow
|
1 |
|
| 13 |
883551 |
O-RING
|
1 |
|
| 14 |
883306 |
PUMP ASSEMBLY Fuel
|
1 |
disc.
|
| 15 |
NSS |
NOT SOLD SEPARATE Sleeve - Gray
|
1 |
|
| 16 |
855756A1 |
BRACKET KIT
|
1 |
disc.
|
| 17 |
856928 |
GROMMET
|
1 |
disc.
|
| 18 |
1993716 |
SCREW (M6 x 16)
|
3 |
|
| 19 |
880863 |
O-RING
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Vapor Seperator Assembly - NOTE: See Vapor Seperator Components Section For Parts Breakdown
|
1 |
|
| 20 |
883555 |
FITTING Straight
|
1 |
|
| 21 |
883553 |
HOSE Molded
|
1 |
disc.
|
| 22 |
881831 |
WIRE ASSEMBLY Ground
|
1 |
disc.
|
| 23 |
82130010 |
SCREW (M6 x 10)
|
1 |
|
| 24 |
61990 |
TIE STRAP (14.00 Inches)
|
1 |
|
| 25 |
NSS |
NOT SOLD SEPARATE Info Decal (SAE J1171 Marine)
|
3 |
|
| 3 |
880141 |
CLAMP (18.3)
|
2 |
|
| 4 |
87780049 |
HOSE (22.00 Inches Bulk) Cut As Required
|
AR |
|
| 5 |
885555A1 |
PUMP ASSEMBLY Fuel
|
1 |
superseded
|
| 6 |
884743 |
FILTER Fuel Pump
|
1 |
|
| 7 |
1993735 |
SCREW (M6 x 35 MM)
|
1 |
|
| 8 |
880757 |
BRACKET Fuel Pump Mount
|
1 |
disc.
|
| 9 |
880141 |
CLAMP (18.3)
|
4 |
|
