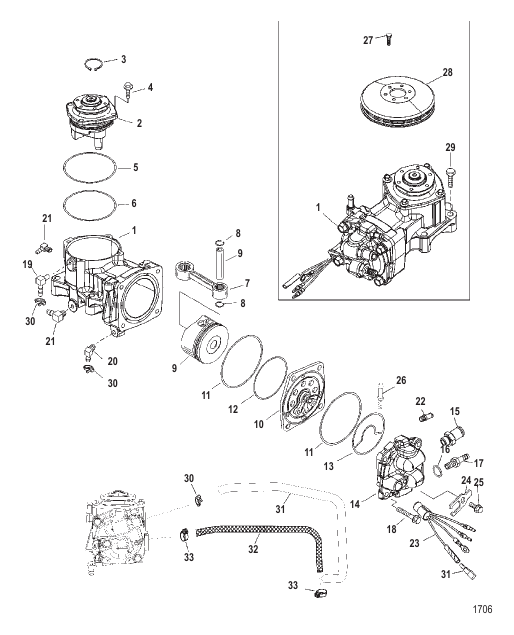

| # | Part Number | Description | Qty | Status |
|---|
| - |
832804A2 |
O-RING KIT Air Compressor
|
1 |
|
| 1 |
828123T29 |
COMPRESSOR ASSEMBLY Air - Design II [0E424584] THRU [0E434192]
|
1 |
superseded
|
| 10 |
835088A10 |
REED PLATE ASSEMBLY
|
1 |
|
| 11 |
67207 |
O-RING (3.489 x .070)
|
2 |
|
| 12 |
832804 |
O-RING (2.739 x .070)
|
1 |
|
| 13 |
828225 |
SEAL
|
1 |
|
| 14 |
835087A8 |
HEAD KIT Compressor
|
1 |
superseded
|
| 15 |
8812711 |
FITTING Straight
|
1 |
|
| 16 |
831985 |
O-RING (.468 x .078)
|
1 |
|
| 17 |
856744 |
FITTING Straight
|
1 |
|
| 18 |
82446035 |
SCREW (M8 x 35 MM)
|
4 |
|
| 19 |
151331 |
FITTING Elbow
|
1 |
|
| 2 |
828131A8 |
END CAP ASSEMBLY
|
1 |
superseded
|
| 20 |
996642 |
FITTING Elbow 90 Degree (.125-27 x .250) Nylon
|
1 |
|
| 21 |
428641 |
FITTING Check Valve
|
2 |
|
| 22 |
16604 |
FITTING Straight (.125-27)
|
1 |
|
| 23 |
13536A14 |
SENSOR ASSEMBLY Temperature
|
1 |
|
| 24 |
137151 |
RETAINER
|
1 |
|
| 25 |
81893414 |
SCREW (M8 x 14)
|
1 |
|
| 26 |
8215832 |
PIN Special (1.5 Inches)
|
1 |
|
| 27 |
85593912 |
SCREW (M6 x 12)
|
6 |
|
| 28 |
8328233 |
PULLEY
|
1 |
superseded
|
| 29 |
81893450 |
SCREW (M8 x 50)
|
4 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Retaining Ring
|
1 |
|
| 30 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
| 31 |
8812851 |
HOSE Molded To Air Filter In Attenuator
|
1 |
|
| 32 |
8567631 |
HOSE ASSEMBLY To Top Starboard Rail
|
1 |
|
| 33 |
856880 |
CLAMP Hose (15.3)
|
2 |
superseded
|
| 4 |
82130020 |
SCREW (M6 x 20)
|
4 |
|
| 5 |
832804 |
O-RING (2.739 x .070)
|
1 |
|
| 6 |
832804 |
O-RING (2.739 x .070)
|
1 |
|
| 7 |
833146T05 |
CONNECTING ROD ASSEMBLY With Bearings
|
1 |
superseded
|
| 8 |
8348101 |
RING Lock
|
2 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Piston Assembly
|
1 |
|
