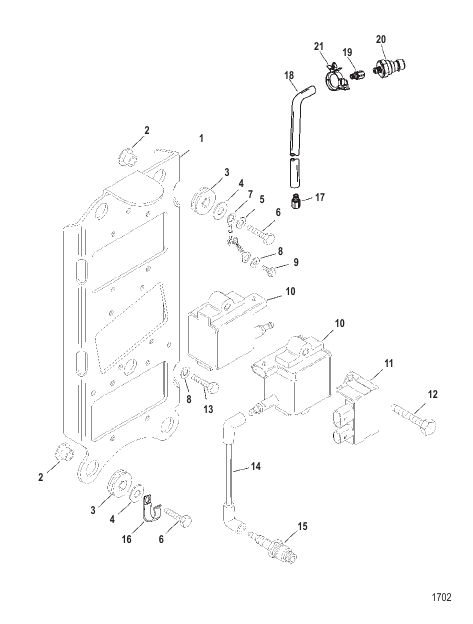

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
850295T4 |
PLATE Coil Mounting
|
1 |
|
| 10 |
856991A1 |
COIL KIT Ignition
|
6 |
|
| 11 |
859595T |
DRIVER Dual Coil
|
3 |
|
| 12 |
82129130 |
SCREW (M6 x 30)
|
12 |
|
| 13 |
82129114 |
SCREW (M6 x 14) Ground Cables
|
2 |
|
| 14 |
881908T |
CABLE SET Hi Tension
|
1 |
|
| 15 |
8556721 |
SPARK PLUG - Design I - Platinum Wire Tip - Gap 1.1 mm (NGK - PZFR5F-11)
|
6 |
superseded
|
| 15 |
889597001 |
SPARK PLUG - Design II - Iridium Wire Tip - Gap .8 mm (NGK - IZFR5G)
|
6 |
superseded
|
| 16 |
97224 |
J CLIP
|
2 |
|
| 17 |
881866 |
FITTING - NOTE: To Back Of Block - Lower Port Side
|
1 |
|
| 18 |
85978568 |
TUBING (44.00 Inches Bulk) Cut 18.00 Inches
|
1 |
superseded
|
| 19 |
859431 |
FITTING
|
1 |
superseded
|
| 2 |
8502341 |
BUSHING
|
4 |
|
| 20 |
881879A7 |
SENSOR KIT (0-50 PSI) Block Pressure
|
1 |
superseded
|
| 21 |
883066 |
CLIP (.865) Sensor Mount
|
1 |
|
| 3 |
833155 |
GROMMET
|
4 |
|
| 4 |
4002318 |
WASHER 8.90 x 24.0x 2.4 PL SS
|
4 |
|
| 5 |
36001 |
WASHER
|
2 |
|
| 6 |
81893435 |
SCREW (M8 x 35)
|
4 |
|
| 7 |
858414A1 |
CABLE ASSEMBLY Braided Ground
|
2 |
|
| 8 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
4 |
superseded
|
| 9 |
82129110 |
SCREW (M6 x 10)
|
2 |
|
