| # | Part Number | Description | Qty | Status |
|---|
| - |
MXC300442 |

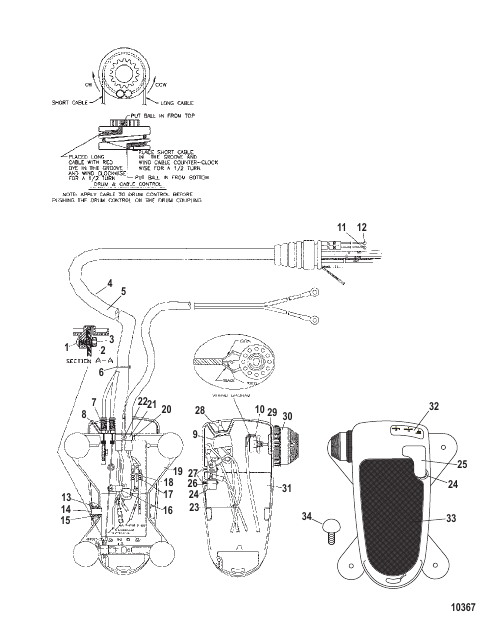

FOOT PEDAL ASSEMBLY Complete
|
1 |
superseded
|
| 1 |
MFM13304 |
SCREW (#10-32 x .625)
|
6 |
superseded
|
| 10 |
MAP16803 |
POTENTIOMETER ASSEMBLY
|
1 |
superseded
|
| 11 |
MPM02743 |
CABLE ASSEMBLY Steering - Short
|
1 |
superseded
|
| 12 |
MPM02744 |
CABLE ASSEMBLY Steering - Long
|
1 |
superseded
|
| 13 |
MBK04601 |
E RING
|
1 |
superseded
|
| 14 |
MPM10201 |
PIN Foot Pedal
|
1 |
superseded
|
| 15 |
26954 |
BUSHING
|
2 |
|
| 16 |
MAP03601 |
CLAMP Cable
|
1 |
superseded
|
| 17 |
MFM13303 |
SCREW (#10-32 x .375)
|
1 |
superseded
|
| 18 |
MFM02903 |
BLOCK Terminal
|
1 |
superseded
|
| 19 |
MPM003016 |
BASE Foot Pedal
|
1 |
disc.
|
| 2 |
MPM12101 |
PULLEY
|
2 |
superseded
|
| 20 |
MPM01901 |
GROMMET
|
1 |
disc.
|
| 21 |
MFM00601 |
COLLAR Retainer
|
1 |
superseded
|
| 22 |
MBK13602 |
SCREW (#8-32 x .375)
|
1 |
superseded
|
| 23 |
56762 |
TIE STRAP (4.00 Inches)
|
2 |
|
| 24 |
MAP15103S |
SWITCH KIT Micro
|
1 |
disc.
|
| 25 |
MPM02602 |
COVER Switch
|
1 |
superseded
|
| 26 |
MSP09802 |
NUT (#6-32)
|
2 |
superseded
|
| 27 |
MPM13501 |
SCREW (#6-32 x 1.12)
|
2 |
superseded
|
| 28 |
MFP17701 |
BOOT Toggle Switch
|
1 |
superseded
|
| 29 |
MLP04602 |
RING Retaining
|
1 |
superseded
|
| 3 |
MPM12201 |
PIVOT Pulley
|
2 |
superseded
|
| 30 |
MPM08201 |
KNOB ASSEMBLY Variable Speed
|
1 |
superseded
|
| 31 |
MPM10103 |
FOOT PEDAL
|
1 |
disc.
|
| 32 |
MPM05703 |
DECAL
|
1 |
superseded
|
| 33 |
MPM05401 |
PAD Foot Plate
|
1 |
superseded
|
| 34 |
MPM02301 |
BUMPER (#8-32) Rubber
|
4 |
superseded
|
| 4 |
MAP327482 |
CABLE ASSEMBLY Control (63.00 Inches)
|
1 |
superseded
|
| 5 |
MM900625 |
TUBING (25.00 Feet Bulk) Cut As Required
|
1 |
disc.
|
| 6 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 7 |
MPM01401 |
SPRING
|
2 |
superseded
|
| 8 |
MPM09802 |
NUT (.312-24)
|
2 |
superseded
|
| 9 |
MPM15303 |
SWITCH ASSEMBLY Toggle - Design I - With Soldered Wires
|
1 |
superseded
|
| 9 |
879330T33 |
SWITCH ASSEMBLY Toggle - Design II - Used With Terminals MBR16103
|
1 |
|
