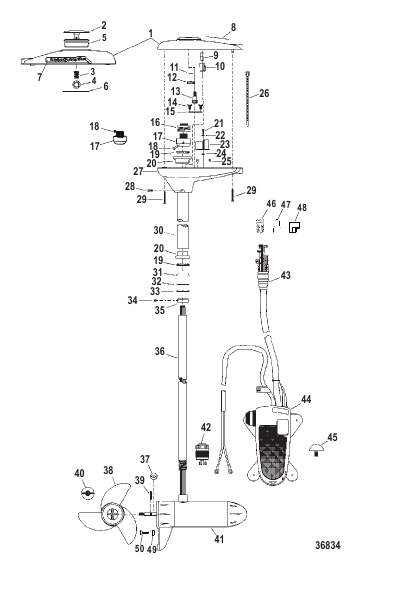

| # | Part Number | Description | Qty | Status |
|---|
| - |
MST921BF |
MOUNT ASSEMBLY Complete Model 21 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MST924BF |
MOUNT ASSEMBLY Complete Model 24 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 1 |
MAF053262 |
COVER ASSEMBLY Top - Design I - MotorGuide Tour
|
1 |
superseded
|
| 1 |
MM5911 |
COVER ASSEMBLY Top - Design II - MotorGuide Digital
|
1 |
|
| 10 |
MAF394012 |
HOLDER ASSEMBLY Lamp
|
1 |
superseded
|
| 11 |
MAK04601 |
E RING Stainless Steel
|
1 |
superseded
|
| 12 |
MAF06903 |
GEAR Idler - Nylon Nylon
|
1 |
superseded
|
| 13 |
MAF06902 |
GEAR Indicator - Nylon Nylon
|
1 |
superseded
|
| 14 |
MBK13602 |
SCREW (#8-32 x .375)
|
2 |
superseded
|
| 15 |
MAF315512 |
BRACKET ASSEMBLY
|
1 |
superseded
|
| 16 |
MFM06701 |
DRUM CONTROL - Design I - Used With Hole Drilled Type Column Only
|
1 |
superseded
|
| 16 |
879330T60 |
DRUM CONTROL - Design II - Used With Threaded Type Column Only
|
1 |
disc.
|
| 17 |
MFM06402 |
COUPLING Drum Control - Design I - Used With Hole Drilled Type Column Only
|
1 |
superseded
|
| 17 |
879330T59 |
COUPLING Drum Control - Design II - Used With Threaded Type Column Only
|
1 |
disc.
|
| 18 |
MLF11103 |
RIVET (.125 x .375) - Design I - Used With Hole Drilled Type Column Only
|
2 |
superseded
|
| 18 |
MAF14201B |
SET SCREW (.250-20 x .312) Hex Socket Head - Design II - Used With Threaded Type Column Only
|
1 |
superseded
|
| 19 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design I - Upper And Lower Column
|
2 |
superseded
|
| 19 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design II - Upper Column Only
|
1 |
superseded
|
| 19 |
MFM00502 |
BEARING Ball (1.477 Outside Diameter) Sealed Style - 41 Balls - Design II - Lower Column Only
|
1 |
superseded
|
| 2 |
MM5922 |
INDICATOR KIT Top Cover
|
1 |
disc.
|
| 20 |
MFM00701 |
RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design I - Upper And Lower Column
|
2 |
superseded
|
| 20 |
MFM00702 |
RETAINER CUP Bearing (1.482/1.487 Inside Diameter) - Design II - Upper And Lower Column
|
1 |
superseded
|
| 21 |
MFM13501 |
SCREW (#4-40 x .375) [9B157373] & Below
|
1 |
disc.
|
| 22 |
MFM09801 |
WASHER [9B157373] & Below
|
1 |
disc.
|
| 23 |
MAF15713 |
BOARD ASSEMBLY (24V) - NOTE: Part No Longer Available - Reference Service Bulletin 2004-02 [9B157373] & Below
|
1 |
disc.
|
| 24 |
MFM17102 |
WASHER [9B157373] & Below
|
1 |
disc.
|
| 25 |
MFM02301 |
STEM BUMPER
|
4 |
disc.
|
| 26 |
MAF03001 |
TIE STRAP (.16 x 7/8.00 Inches)
|
AR |
superseded
|
| 26 |
MAF03002 |
TIE STRAP (.29/.31 x 7/9.00 Inches)
|
AR |
superseded
|
| 27 |
MAF00411 |
COVER Bottom - Design I - Mounted With Three Rivets
|
1 |
superseded
|
| 27 |
MAF004139 |
COVER KIT Bottom Includes Two Set Screws - Design II - Mounted With Two Set Screws
|
1 |
disc.
|
| 28 |
MLF11104 |
RIVET (.125 x .375) - Design I
|
3 |
superseded
|
| 28 |
MAF14201B |
SET SCREW (.250-20 x .312) Hex Socket Head - Design II
|
2 |
superseded
|
| 29 |
MAF14102 |
SCREW (#10-24 x .625)
|
3 |
superseded
|
| 3 |
MAF01401 |
SPRING
|
1 |
superseded
|
| 30 |
MAF16501 |
TUBE Outer (13.00 Inches) - Design I - 36.00 Inch Models If Used With Riveted Style Bottom Cover
|
1 |
superseded
|
| 30 |
M889281T |
TUBE Outer (13.00 Inches) - Design II - 36.00 Inch Models If Used With Set Screw Style Bottom Cover
|
1 |
disc.
|
| 30 |
MAF16506 |
TUBE Outer (20.00 Inches) - 42.00 And 45.00 And 50.00 Inch Models
|
1 |
superseded
|
| 30 |
MAF165101 |
TUBE Outer (30.00 Inches) - 60.00 Inch Models
|
1 |
superseded
|
| 31 |
MAF00603 |
RACE Bearing - Design I - Used With Open Style Bearing
|
1 |
superseded
|
| 32 |
MAF06301 |
O-RING - Design I - Used With Open Style Bearing
|
1 |
superseded
|
| 33 |
MAF17101 |
WAVE WASHER - Design I - Used With Open Style Bearing
|
2 |
superseded
|
| 34 |
MAF14201B |
SET SCREW (.250-20 x .312) Hex Socket Head
|
2 |
superseded
|
| 35 |
MXF00602 |
COLLAR Bearing - Design I - Used With Open Style Ball Bearing - NOTE: Part No Longer Available - Order Kit MSS00602S
|
1 |
disc.
|
| 35 |
MSS00602S |
CONE AND BEARING KIT - NOTE: Includes Design II Parts - MAF14201B And MFM00502 And MFM00702 And MSS00602
|
1 |
disc.
|
| 35 |
MSS00602 |
CONE Bearing - Design II - Used With Sealed Style Ball Bearing
|
1 |
superseded
|
| 36 |
8M0060302 |
COLUMN (32.00 Inches) Stainless Steel - Design II - Threaded Style - Must Be Used With Design II Components - Cable Drum And Coupling And Set Screw
|
1 |
disc.
|
| 36 |
MFR04914 |
COLUMN (36.00 Inches) Stainless Steel - Design I - Drilled Hole Style - Must Be Used With Design I Components - Cable Drum And Coupling And Rivets
|
1 |
superseded
|
| 36 |
MAF04920T |
COLUMN (36.00 Inches) Stainless Steel - Design II - Threaded Style - Must Be Used With Design II Components - Cable Drum And Coupling And Set Screw
|
1 |
disc.
|
| 36 |
MFR04912 |
COLUMN (42.00 Inches) Stainless Steel - Design I - Drilled Hole Style - Must Be Used With Design I Components - Cable Drum And Coupling And Rivets
|
1 |
superseded
|
| 36 |
MAF04921T |
COLUMN (42.00 Inches) Stainless Steel - Design II - Threaded Style - Must Be Used With Design II Components - Cable Drum And Coupling And Set Screw
|
1 |
disc.
|
| 36 |
MFM04915 |
COLUMN (45.00 Inches) Stainless Steel - Design I - Drilled Hole Style - Must Be Used With Design I Components - Cable Drum And Coupling And Rivets
|
1 |
superseded
|
| 36 |
MAF04922T |
COLUMN (45.00 Inches) Stainless Steel - Design II - Threaded Style - Must Be Used With Design II Components - Cable Drum And Coupling And Set Screw
|
1 |
|
| 36 |
MFR04913 |
COLUMN (50.00 Inches) Stainless Steel - Design I - Drilled Hole Style - Must Be Used With Design I Components - Cable Drum And Coupling And Rivets
|
1 |
superseded
|
| 36 |
MAF04923T |
COLUMN (50.00 Inches) Stainless Steel - Design II - Threaded Style - Must Be Used With Design II Components - Cable Drum And Coupling And Set Screw
|
1 |
disc.
|
| 36 |
MFR04925 |
COLUMN (60.00 Inches) Stainless Steel - Design I - Drilled Hole Style - Must Be Used With Design I Components - Cable Drum And Coupling And Rivets
|
1 |
superseded
|
| 36 |
MAF04924T |
COLUMN (60.00 Inches) Stainless Steel - Design II - Threaded Style - Must Be Used With Design II Components - Cable Drum And Coupling And Set Screw
|
1 |
disc.
|
| 37 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 38 |
MAF174346 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete II - Design I - With Nylon Prop Nut [9B157373] & Below
|
1 |
superseded
|
| 38 |
MAF174555 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Nylon Prop Nut [9B157374] & Up
|
1 |
superseded
|
| 38 |
MAF174755 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design III - With Brass Insert Prop Nut [9B157374] & Up
|
1 |
superseded
|
| 38 |
MAF12412 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II With Prop Kit 48-MAF174346
|
1 |
superseded
|
| 38 |
MAF12415 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub With Prop Kit 48-MAF174555 And MAF174755
|
1 |
superseded
|
| 39 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 4 |
MAF04601 |
CLIP
|
1 |
superseded
|
| 40 |
MAR09901 |
PROP NUT - Design I - All Nylon
|
1 |
superseded
|
| 40 |
MAR09902 |
PROP NUT - Design II - Nylon With Brass Insert
|
1 |
superseded
|
| 41 |
MTF397022 |
LOWER UNIT ASSEMBLY Complete (82# - Variable) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown [9B157373] & Below
|
1 |
disc.
|
| 41 |
MTC397022 |
LOWER UNIT ASSEMBLY Complete (82# - Variable) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown [9B157374] & Up
|
1 |
superseded
|
| 42 |
MFP02901 |
PLUG - Special Models Only
|
1 |
superseded
|
| 43 |
MAP07101 |
GROMMET
|
1 |
superseded
|
| 44 |
MXC300442 |
FOOT PEDAL ASSEMBLY Complete (63.00 Inches) Revised Micro Switch - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 44 |
MXC30034T |
FOOT PEDAL ASSEMBLY Complete (63.00 Inches) Added On/Off Switch - Marked MXC300342 - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 44 |
MXC30054T |
FOOT PEDAL ASSEMBLY Complete (63.00 Inches) New Cables - MXC300542 - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
disc.
|
| 44 |
MAP300332 |
FOOT PEDAL ASSEMBLY Complete (69.00 Inches) - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown [9B157373] & Below
|
1 |
disc.
|
| 44 |
MXC300382 |
FOOT PEDAL ASSEMBLY Complete (69.00 Inches) - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown [9B157374] & Up
|
1 |
superseded
|
| 44 |
MXC300362 |
FOOT PEDAL ASSEMBLY Complete (69.00 Inches) Revised Micro Switch - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown [9B157374] & Up
|
1 |
superseded
|
| 44 |
MXC30046T |
FOOT PEDAL ASSEMBLY Complete (69.00 Inches) Added On/Off Switch - Marked MXC300462 - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown [9B157374] & Up
|
1 |
disc.
|
| 45 |
MPM02301 |
BUMPER (#8-32) Foot Pedal
|
4 |
superseded
|
| 46 |
MBR16102 |
TERMINAL Flag (Female #18-12)
|
1 |
superseded
|
| 46 |
MBR16103 |
TERMINAL Flag (Female #20-14) [9B157373] & Below
|
1 |
superseded
|
| 47 |
MBF02901 |
CONNECTOR Pigtail (#18-8) [9B157373] & Below
|
5 |
superseded
|
| 47 |
MBF02901 |
CONNECTOR Pigtail (#18-8) [9B157374] & Up
|
2 |
superseded
|
| 47 |
MBF02902 |
CONNECTOR Pigtail (#22-14) [9B157374] & Up
|
4 |
superseded
|
| 48 |
MAT08001 |
SLEEVE Insulating [9B157373] & Below
|
1 |
superseded
|
| 49 |
MAR00202 |
ANODE Zinc - Design I
|
1 |
superseded
|
| 49 |
M879341T |
ANODE Aluminum - Design II
|
1 |
disc.
|
| 5 |
MAF09501 |
LENS
|
1 |
superseded
|
| 50 |
MDK13301 |
SCREW (.250-20 x .750)
|
1 |
superseded
|
| 6 |
MAF04602 |
RETAINER
|
1 |
superseded
|
| 7 |
MAF19013 |
DECAL Side - MotorGuide Tour - Design I
|
2 |
superseded
|
| 7 |
MAF05704 |
DECAL Side - MotorGuide Digital - Design II
|
2 |
superseded
|
| 8 |
MAF19016 |
DECAL Top Cover MotorGuide TR-FB - Design I
|
1 |
disc.
|
| 8 |
MAF19021 |
DECAL Top Cover MotorGuide Tour TR-82 24 Volt - Design II
|
1 |
superseded
|
| 8 |
MAF19031 |
DECAL Top Cover MotorGuide Digital Tour 24 Volt 82 Lbs Thrust - Design III
|
1 |
superseded
|
| 9 |
MAF09302 |
LAMP (24 Volt) [9B157373] & Below
|
1 |
superseded
|
| 9 |
MAF09303 |
LAMP (12 Volt) [9B157374] & Up
|
1 |
superseded
|
