Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Trolling Motor / MotorGuide Tour Lowerance Digital Series / [9B000001 & Up] - Cat.# 90-889477001 / Wire Diagram (TR70LFBD) (TR82LFBD) (24 Volt)

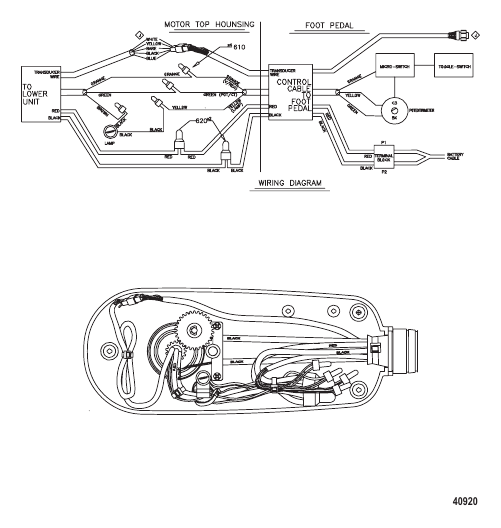

Wire Diagram (TR70LFBD) (TR82LFBD) (24 Volt)

Wire Diagram (TR70LFBD) (TR82LFBD) (24 Volt)

Parts (1)

#Part NumberDescriptionQtyStatus
- NOPART НЕТ ПЕРЕЧНЯ ДЕТАЛЕЙ
NO PARTS LIST 		0
