| # | Part Number | Description | Qty | Status |
|---|
| - |
879317T90 |

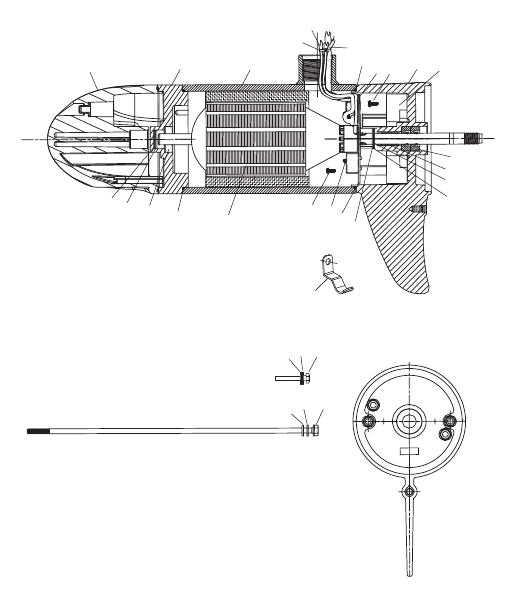

LOWER UNIT ASSEMBLY Complete (82# - Variable)
|
1 |
disc.
|
| - |
MXC6021 |
REPAIR KIT Lower Unit Assembly - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit
|
1 |
disc.
|
| 1 |
879317T93 |
NOSE CAP ASSEMBLY
|
1 |
disc.
|
| 1 |
8M4002707 |
NOSE CONE ASSEMBLY Sonar, With Screws
|
1 |
|
| 10 |
MM308404T |
HARNESS ASSEMBLY Cut As Required
|
1 |
|
| 11 |
MBV13301T |
SCREW (#8-32 x .375) With Patch - Stainless Steel
|
1 |
disc.
|
| 12 |
M899378T |
COMM CAP ASSEMBLY
|
1 |
superseded
|
| 13 |
MR22301T |
SEAL Armature Shaft
|
2 |
disc.
|
| 14 |
MR20603T |
BEARING (.750) Sintered Bronze
|
1 |
disc.
|
| 15 |
M899371T |
SE MODULE ASSEMBLY Software Rev 1.08
|
1 |
disc.
|
| 16 |
MXC22901T |
SCREW (#10-10 x 1.550) Torx Head
|
2 |
disc.
|
| 17 |
MR21602T |
WASHER (.204 x .375 x .048) Stainless Steel
|
2 |
disc.
|
| 18 |
MR22202T |
SEAL Static - Teflon Coated
|
2 |
disc.
|
| 19 |
MR22701T |
THRUST WASHER (.380 x .660 x .025)
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE BALL BEARING
|
1 |
|
| 20 |
MR22601T |
WASHER (.378 x .655 x .026) Nylatron
|
1 |
|
| 21 |
M889298T |
ARMATURE
|
1 |
disc.
|
| 22 |
MR21902T |
E RING
|
1 |
|
| 23 |
MXF21401T |
SPRING Brushes
|
2 |
|
| 24 |
MBV13301T |
SCREW (#8-32 x .375) With Patch - Stainless Steel Brush Card
|
2 |
disc.
|
| 25 |
M899367T |
BRUSH CARD ASSEMBLY Less Springs
|
1 |
disc.
|
| 26 |
MR21702T |
O-RING (3.187 x .073) Blue Teflon Coated
|
2 |
disc.
|
| 27 |
MR218115T |
THRU BOLT ASSEMBLY
|
2 |
superseded
|
| 28 |
MR21602T |
WASHER (.204 x .375 x .048) Stainless Steel
|
2 |
disc.
|
| 29 |
MR22202T |
SEAL Static - Teflon Coated
|
2 |
disc.
|
| 3 |
MR22501T |
THRUST DISK Nylatron
|
1 |
disc.
|
| 30 |
8M4002419 |
GROUND STRAP
|
1 |
disc.
|
| 4 |
MR22401BT |
THRUST DISK Plated
|
1 |
disc.
|
| 5 |
8M4002708 |
SPACER ASSEMBLY With Screws, Washers and Bearing
|
1 |
|
| 6 |
879317T95 |
HOUSING ASSEMBLY With Magnets
|
1 |
superseded
|
| 7 |
MR22001T |
TIE STRAP (4.00 Inches)
|
3 |
disc.
|
| 8 |
M899350T |
WIRE ASSEMBLY (6.330 Feet) Black With One Ring Terminal
|
1 |
disc.
|
| 9 |
M899349T |
WIRE ASSEMBLY (6.330 Feet) Red With One Ring Terminal
|
1 |
|
