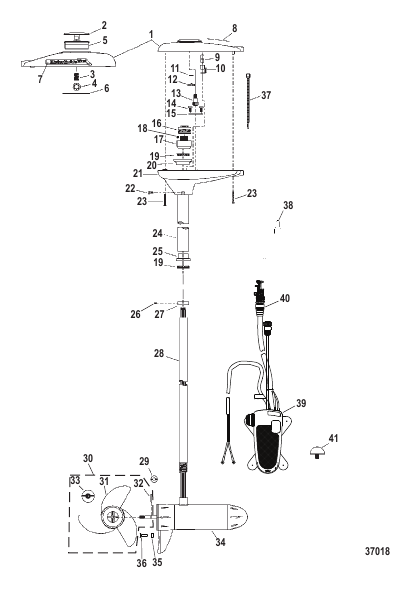

Complete Trolling Motor (TR82LFBD) (24 Volt)

Parts (49)

#Part NumberDescriptionQtyStatus
- MST921BF MOUNT ASSEMBLY Complete Model 21 - NOTE: See Mount Assembly Section For Service Parts Breakdown 1 superseded
- MST924BF MOUNT ASSEMBLY Complete Model 24 - NOTE: See Mount Assembly Section For Service Parts Breakdown 1 superseded
1 MM5911 COVER ASSEMBLY Top 1
10 M899364T HOLDER ASSEMBLY Lamp 1 disc.
11 MAK04601T E RING Stainless Steel 1
12 MAF06903T GEAR Idler - Nylon 1 disc.
13 MAF06902T GEAR Indicator - Nylon 1
14 MBK13602T SCREW (#8-32 x .375) 2 disc.
15 M899414T BRACKET ASSEMBLY 1 disc.
16 879330T60 DRUM CONTROL 1 disc.
17 879330T59 COUPLING Drum Control 1 disc.
18 M899381T SET SCREW (.250-20 x .312) Hex Socket Head 1
19 MFM00502T BEARING Ball (1.477 Outside Diameter) Sealed Style - 41 Balls 2 disc.
2 MM5922   INDICATOR KIT Top Cover 1 disc.
20 879330T58 RETAINER CUP Bearing (1.482/1.487 Inside Diameter) 1 disc.
21 MAF004139 COVER KIT Bottom 1 disc.
22 M899381T   SET SCREW (.250-20 x .312) Hex Socket Head 2
23 MAF14102T SCREW (#10-24 x .625) 3 disc.
24 MBF16506T TUBE Outer (20.00 Inches) 1 disc.
24 MBF16510T TUBE Outer (30.00 Inches) 1
25 MFM00702T RETAINER CUP Bearing (1.482/1.487 Inside Diameter) 1 superseded
26 M899381T SET SCREW (.250-20 x .312) Hex Socket Head 2
27 MSS00602T CONE Bearing 1 disc.
28 MAF04922T COLUMN (45.00 Inches) Stainless Steel 1
28 MAF04923T COLUMN (50.00 Inches) Stainless Steel 1 disc.
28 MAF04924T COLUMN (60.00 Inches) Stainless Steel 1 disc.
29 MAR17501T WASHER (.385 x .885 x .095) Nylon 1 disc.
3 MAF01401T     SPRING 1 disc.
30 M889287T PROPELLER KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub 1 disc.
31 MAF12415T   PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub 1
32 MBR10202T   PIN Prop Drive (.156 x 1.00) 1
33 MAR09902T   PROP NUT 1
34 879317T90 LOWER UNIT ASSEMBLY Complete (82# - Variable) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown 1 disc.
35 M879341T ANODE Aluminum 1 disc.
36 MDK13301T SCREW (.250-20 x .750) 1 disc.
37 816311T TIE STRAP (8.00 Inches) AR
37 MAF03002T TIE STRAP (.29/.31 x 7/9.00 Inches) AR
38 MBF02901T CONNECTOR Pigtail (#18-8) 2 disc.
38 MBF02902T CONNECTOR Pigtail (#22-14) 4 disc.
39 879317T89 FOOT PEDAL ASSEMBLY Complete (63.00 Inches) Marked 8M4001826 - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown 1 disc.
39 879317T91 FOOT PEDAL ASSEMBLY Complete (69.00 Inches) Marked 8M4001827 - NOTE: See Foot Pedal Assembly For Service Parts Breakdown 1 disc.
4 MAF04601T     CLIP 1 disc.
40 MAP07104T GROMMET 1 disc.
41 MPM02301T BUMPER (#8-32) Foot Pedal 4 disc.
5 MAF09501T   LENS 1 disc.
6 MAF04602T   RETAINER 1 disc.
7 MAF05704T   DECAL Side - MotorGuide Digital 2 disc.
8 MAF19032T DECAL Top Cover MotorGuide Digital Tour 24 Volt 82 Lbs Thrust 1 disc.
9 MAF09303T LAMP (12 Volt) 1 disc.
