| # | Part Number | Description | Qty | Status |
|---|
| - |
M899723T |

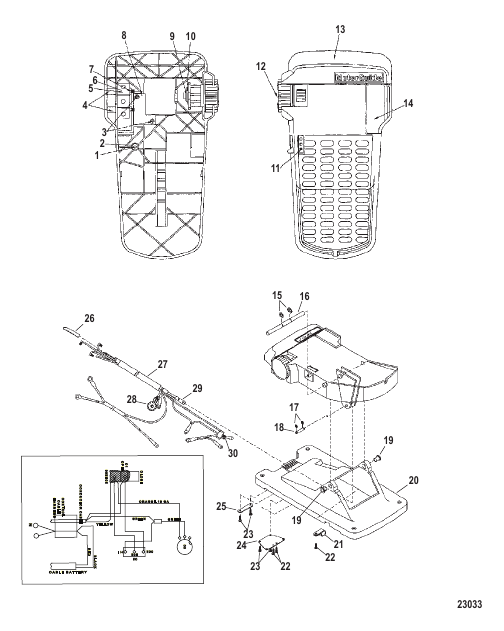

FOOT PEDAL ASSEMBLY Complete (63.00 Inches) Marked 8M3000139
|
1 |
disc.
|
| - |
8M3000653 |
CABLE/STUD ASSEMBLY Control (63.00 Inches)
|
1 |
disc.
|
| 1 |
MRT13303 |
SCREW (#10-32 x .500)
|
1 |
superseded
|
| 10 |
MAK17102 |
WASHER Nylon
|
1 |
superseded
|
| 11 |
MLP05709 |
DECAL Hi ByPass
|
1 |
superseded
|
| 12 |
MLP08208 |
KNOB Variable Speed
|
1 |
superseded
|
| 13 |
MLP10103 |
PEDAL
|
1 |
superseded
|
| 14 |
MLP02601 |
BUTTON Micro Switch
|
1 |
superseded
|
| 15 |
MBK04602 |
E RING
|
2 |
superseded
|
| 16 |
MLP10201 |
PIN Foot Pedal Rocker
|
1 |
superseded
|
| 17 |
MFP04601 |
E RING
|
2 |
superseded
|
| 18 |
MAP105011 |
PIN Pivot Cable Pivot
|
1 |
superseded
|
| 19 |
MKP02101T |
BUSHING Pivot Shaft
|
2 |
disc.
|
| 2 |
MTT09803T |
PAL NUT
|
1 |
disc.
|
| 20 |
MLP00301T |
BASE Foot Pedal
|
1 |
disc.
|
| 21 |
MKP03601 |
P CLAMP (.250)
|
1 |
superseded
|
| 22 |
861756 |
SCREW (#6-19 x .500)
|
3 |
disc.
|
| 23 |
85008 |
SCREW (#6-19 x .312)
|
4 |
|
| 24 |
MKP12301 |
PLATE Control Cable
|
1 |
superseded
|
| 25 |
MXP03601 |
CLAMP Battery Cable
|
1 |
superseded
|
| 26 |
MXP12501 |
RACK
|
1 |
superseded
|
| 27 |
M899769T |
CABLE ASSEMBLY Control (63.00 Inches) Marked 8M3000135
|
1 |
disc.
|
| 28 |
MAP16803 |
POTENTIOMETER ASSEMBLY
|
1 |
superseded
|
| 29 |
MLP09101T |
PIVOT Cable
|
1 |
|
| 3 |
MXF13501 |
SCREW (#6 x .500)
|
2 |
superseded
|
| 30 |
MPM15303T |
SWITCH ASSEMBLY Toggle - Design I - With Soldered Wires
|
1 |
disc.
|
| 30 |
879330T33 |
SWITCH ASSEMBLY Toggle - Design II - Used With Terminals MBR16303
|
1 |
|
| 4 |
MLP13501 |
SCREW (#6-32 x 1.50)
|
2 |
superseded
|
| 5 |
MAP15104T |
SWITCH ASSEMBLY Micro
|
1 |
|
| 6 |
MKP15701T |
BOOT Micro Switch
|
1 |
disc.
|
| 7 |
MSP09802 |
NUT (#6-32)
|
2 |
superseded
|
| 8 |
MLP12303 |
PLATE Retainer
|
1 |
superseded
|
| 9 |
MLP04601 |
RING Retaining
|
1 |
superseded
|
