| # | Part Number | Description | Qty | Status |
|---|
| - |
MUC397012 |

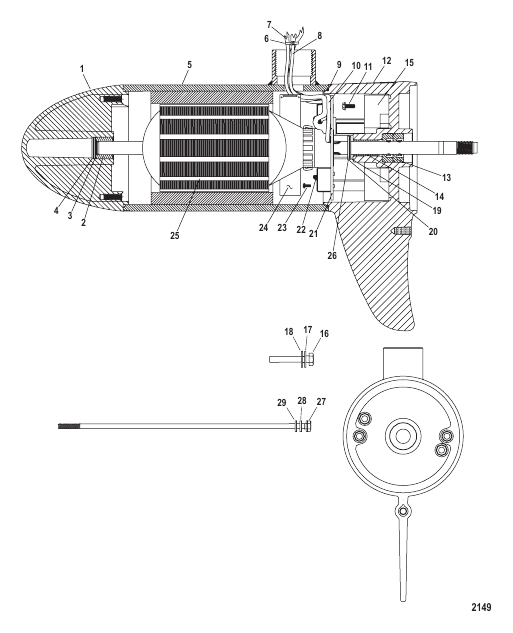

LOWER UNIT ASSEMBLY Complete (71# - Variable)
|
1 |
superseded
|
| - |
MXC6020 |
REPAIR KIT Lower Unit Assembly - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit
|
1 |
|
| 1 |
MXF321219 |
NOSE CAP ASSEMBLY
|
1 |
superseded
|
| 10 |
MM308403 |
HARNESS ASSEMBLY
|
1 |
superseded
|
| 11 |
MBK13603 |
SCREW (#8-32 x .500)
|
3 |
superseded
|
| 12 |
MXC320519 |
COMM CAP ASSEMBLY
|
1 |
superseded
|
| 13 |
MR22301 |
SEAL Armature Shaft
|
2 |
superseded
|
| 14 |
MR20601 |
BEARING (.750) Sintered Bronze
|
1 |
superseded
|
| 15 |
MXC096105 |
SE MODULE ASSEMBLY With Brush Card - Software Rev 1.08
|
1 |
superseded
|
| 16 |
MXC22901 |
SCREW (#10-10 x 1.550) Torx Head
|
2 |
superseded
|
| 17 |
MR21602 |
WASHER (.204 x .375 x .048) Stainless Steel
|
2 |
superseded
|
| 18 |
MR22201 |
SEAL Static - Design I
|
2 |
superseded
|
| 18 |
MR22202 |
SEAL Static - Teflon Coated - Design II - Blue Teflon Coated
|
2 |
superseded
|
| 19 |
MR22701 |
THRUST WASHER (.380 x .660 x .025)
|
1 |
superseded
|
| 2 |
MR20602 |
BEARING (.500) Sintered Bronze
|
1 |
superseded
|
| 20 |
MR22601 |
WASHER (.378 x .655 x .026) Nylatron
|
1 |
superseded
|
| 21 |
MXC320135 |
BRUSH CARD ASSEMBLY Less Springs
|
1 |
disc.
|
| 22 |
MR21402 |
SPRING Brushes
|
2 |
disc.
|
| 23 |
MBK13603 |
SCREW (#8-32 x .500) Brush Card
|
2 |
superseded
|
| 24 |
MJF23301 |
RETAINER
|
1 |
superseded
|
| 25 |
MUF320712 |
ARMATURE
|
1 |
superseded
|
| 26 |
MR21902 |
E RING
|
1 |
superseded
|
| 27 |
MR218025 |
THRU BOLT ASSEMBLY
|
2 |
superseded
|
| 28 |
MR21602 |
WASHER (.204 x .375 x .048) Stainless Steel
|
2 |
superseded
|
| 29 |
MR22201 |
SEAL Static - Design I
|
2 |
superseded
|
| 29 |
MR22202 |
SEAL Static - Teflon Coated - Design II - Blue Teflon Coated
|
2 |
superseded
|
| 3 |
MR22501 |
THRUST DISK Nylatron
|
1 |
superseded
|
| 4 |
MR22401B |
THRUST DISK Plated
|
1 |
superseded
|
| 5 |
MUF321019 |
HOUSING ASSEMBLY With Magnets
|
1 |
superseded
|
| 6 |
MR22001 |
TIE STRAP (4.00 Inches)
|
3 |
superseded
|
| 7 |
MXC323012 |
WIRE ASSEMBLY (6.330 Feet) Black With One Ring Terminal
|
1 |
superseded
|
| 8 |
MXC323022 |
WIRE ASSEMBLY (6.330 Feet) Red With One Ring Terminal
|
1 |
superseded
|
| 9 |
MR21701 |
O-RING - Design I
|
2 |
superseded
|
| 9 |
MR21702 |
O-RING (3.187 x .073) With Blue Teflon - Design II - Blue Teflon Coated
|
2 |
superseded
|
