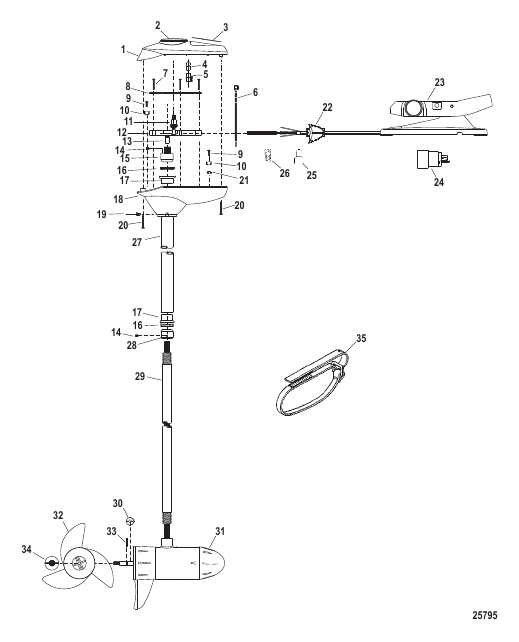

Complete Trolling Motor (Model FW71FB) (24 Volt)

Parts (66)

#Part NumberDescriptionQtyStatus
- MST9205BF MOUNT ASSEMBLY Complete Model 20.5 Gator - NOTE: See Mount Assembly Section For Service Parts Breakdown 1 superseded
- 8M4000198 MOUNT ASSEMBLY Complete Model 20.8 - NOTE: See Mount Assembly Section For Service Parts Breakdown - NOTE: Part No Longer Available - Order 8M4000402 1 superseded
- 8M4000402 MOUNT ASSEMBLY Complete Model 20.8 - NOTE: See Mount Assembly Section For Service Parts Breakdown 1 superseded
- MST921BF MOUNT ASSEMBLY Complete Model 21 Gator - NOTE: See Mount Assembly Section For Service Parts Breakdown 1 superseded
- MST9235BF MOUNT ASSEMBLY Complete Model 23.5 Gator - NOTE: See Mount Assembly Section For Service Parts Breakdown 1 disc.
- MST9360FW MOUNT ASSEMBLY Black - Complete Model Gator Flex 360 - NOTE: See Mount Assembly Section For Service Parts Breakdown 1 superseded
- 8M4000308 MOUNT ASSEMBLY Black - Complete Model Gator Flex II 360 - NOTE: See Mount Assembly Section For Service Parts Breakdown 1 superseded
1 MEF05317J COVER ASSEMBLY Top - Design I - Ruby Red Arrow 1 superseded
1 MEF05317K COVER ASSEMBLY Top - Design II - Ruby Red/Silver Arrow 1 superseded
1 MEF05317L COVER ASSEMBLY Top - Design III - With Two Delrin Washers Under Indicator 1 superseded
1 M899402T COVER ASSEMBLY Top Marked MEF05317M - Design IV - With Two Delrin Washers Under Indicator And Includes Gear Indicator 1 disc.
10 MFT16003 TERMINAL 4 Prong 2 superseded
11 MAF06901 GEAR Indicator 1 superseded
12 MAF12601 RACK GUIDE 1 superseded
13 MKP02101 BUSHING Pivot Shaft 1 superseded
14 MAF14201B SET SCREW (.250-20 x .312) Hex Socket Head 3 superseded
15 MAF39804 NUT ASSEMBLY Pinion 1 superseded
16 MFM00501 BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design I - Upper And Lower Column 2 superseded
16 MFM00501 BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design II - Upper Column Only 1 superseded
16 MFM00502 BEARING Ball (1.477 Outside Diameter) Sealed Style - 41 Balls - Design II - Lower Column Only 1 superseded
17 MFM00701 RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design I - Upper And Lower Column 2 superseded
17 MFM00701 RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design II - Upper Column Only 1 superseded
17 MFM00702 RETAINER CUP Bearing (1.482/1.487 Inside Diameter) - Design II - Lower Column Only 1 superseded
18 MEF004167 COVER Bottom 1 superseded
19 MLF11103 RIVET (.125 x .375) 3 superseded
2 MM5923   INDICATOR KIT Top Cover - NOTE: All Models Serviced With Ruby Red/Silver Arrow Style 1 disc.
20 MAT14101 SCREW (#8 x .625) Stainless Steel 3 superseded
21 MTT09803 PAL NUT 1 superseded
22 MAP07102 GROMMET 1 superseded
23 M899722T FOOT PEDAL ASSEMBLY Complete (63.00 Inches) Marked 8M3000138 - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown 1 disc.
23 MLP300912 FOOT PEDAL ASSEMBLY Complete (69.00 Inches) - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown 1 superseded
23 ML3001112 FOOT PEDAL ASSEMBLY Complete (84.00 Inches) - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown 1 superseded
24 MFP02901 PLUG - Special Models Only 1 superseded
25 MBF02901 CONNECTOR Pigtail (#18-8) AR superseded
25 MBF02902 CONNECTOR Pigtail (#22-14) AR superseded
26 MFR16402 TERMINAL Spade (#14-10) 1 superseded
27 MAF16506 TUBE Outer (20.00 Inches) 1 superseded
27 MAF165101 TUBE Outer (30.00 Inches) 1 superseded
28 MAF00605 CONE Bearing - Design I - Used With Open Style Ball Bearing - NOTE: Part No Longer Available - Order Kit MSS00601S 1 disc.
28 MSS00601S CONE AND BEARING KIT - NOTE: Includes Design II Parts - MAF14201B And MFM00502 And MFM00702 And MSS00601 1 disc.
28 MSS00601 CONE Bearing - Design II - Used With Sealed Style Ball Bearing 1 superseded
29 MAF04909 COLUMN (42.00 Inches) Stainless Steel 1 superseded
29 MAF04912 COLUMN (45.00 Inches) Stainless Steel 1 superseded
29 MAF04910 COLUMN (50.00 Inches) Stainless Steel 1 superseded
29 MAF04914 COLUMN (60.00 Inches) Stainless Steel 1 superseded
3 MFF19008 DECAL Top Cover MotorGuide FW-FB 71 Lbs Thrust 24 Volt 1 superseded
30 MAR17501 WASHER (.385 x .885 x .095) Nylon 1 superseded
31 MVF397012 LOWER UNIT ASSEMBLY Complete (67# - 5 Speed) 42/45/50 Inch Models - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown 1 superseded
31 879345T85 LOWER UNIT ASSEMBLY Complete (75# - 5 Speed) Stamped 2314 45/50 Inch Models NOTE: See Lower Unit Assembly Section For Service Parts Breakdown 1 disc.
31 MVF397052 LOWER UNIT ASSEMBLY Complete (71# - 5 Speed) 60 Inch Model - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown 1 superseded
32 MAF174346 PROP KIT 3 Blade Nylon - 3.5 Inch - Machete II - Design I - With Nylon Prop Nut 1 superseded
32 MAF174555 PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Nylon Prop Nut 1 superseded
32 MAF174755 PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design III - With Brass Insert Prop Nut 1 superseded
32 MAF12412   PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II With Prop Kit 48-MAF174346 1 superseded
32 MAF12415   PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub With Prop Kit 48-MAF174555 And MAF174755 1 superseded
33 MBR10202   PIN Prop Drive (.156 x 1.00) 1 superseded
34 MAR09901   PROP NUT - Design I - All Nylon 1 superseded
34 MAR09902   PROP NUT - Design II - Nylon With Brass Insert 1 superseded
35 MGA507A1 TIE DOWN STRAP Mount 1 disc.
4 MAF09302 LAMP (24 Volt) 1 superseded
5 MAF394012 HOLDER ASSEMBLY Lamp 1 superseded
6 MAF03001 TIE STRAP (.16 x 7/8.00 Inches) AR superseded
6 MAF03002 TIE STRAP (.29/.31 x 7/9.00 Inches) AR superseded
7 MXF13301 SCREW (#6 x 1.125) 6 superseded
8 MAF12701 COVER Rack Guide 1 superseded
9 MRT13303 SCREW (#10-32 x .500) 2 superseded
