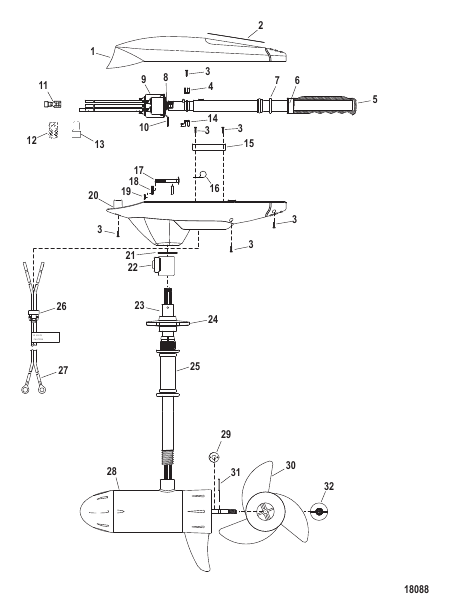

| # | Part Number | Description | Qty | Status |
|---|
| - |
MBK300052 |
MOUNT ASSEMBLY Complete Model Pontoon - Bar Knob Style - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MBK300132 |
MOUNT ASSEMBLY Complete Model Pontoon - Five Lobe Style - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 1 |
MET05317J |
COVER Top
|
1 |
superseded
|
| 10 |
MAT15507 |
BRACKET Switch
|
1 |
superseded
|
| 11 |
MBR16106 |
TERMINAL Quick Connect - NOTE: Used With Handle Assembly MBU37210S
|
4 |
superseded
|
| 12 |
MBR16102 |
TERMINAL Flag (Female #18-12) - NOTE: Used With Handle Assembly MBT372102
|
AR |
superseded
|
| 12 |
MBR16103 |
TERMINAL Flag (Female #20-14) - NOTE: Used With Handle Assembly MBT372102
|
AR |
superseded
|
| 13 |
MBF02901 |
CONNECTOR Pigtail (#18-8) - NOTE: Used With Handle Assembly MBT372102
|
4 |
superseded
|
| 14 |
MAR03605 |
RETAINER Handle With Stop
|
1 |
superseded
|
| 15 |
MAT15506 |
PLATE Cable - NOTE: Used With Handle Assembly MBT372102
|
1 |
superseded
|
| 16 |
MKP03601 |
P CLAMP (.250) - NOTE: Used With Handle Assembly MBU37210S
|
1 |
superseded
|
| 17 |
MTT13402 |
BOLT (.250-20 x 1.75)
|
1 |
superseded
|
| 18 |
MTT17108 |
WASHER Curved
|
2 |
superseded
|
| 19 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 2 |
MFT19012 |
DECAL MotorGuide FW-HP 71 Lbs Thrust 24 Volt
|
1 |
superseded
|
| 20 |
MET004167 |
COVER Bottom
|
1 |
superseded
|
| 21 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 22 |
MXT15802 |
COLLAR ASSEMBLY Depth Adjust - Gray/Black - T Style
|
1 |
superseded
|
| 22 |
MTM15804 |
COLLAR ASSEMBLY Depth Adjust - Black - 5 Lobe Style
|
1 |
superseded
|
| 23 |
MFR04913 |
COLUMN (50.00 Inches) Stainless Steel
|
1 |
superseded
|
| 24 |
MKM08205 |
KNOB Friction
|
1 |
superseded
|
| 25 |
MRK02102 |
TUBE Friction
|
1 |
superseded
|
| 26 |
MGR01901 |
BUSHING Battery Cable
|
1 |
superseded
|
| 27 |
MXT328062 |
CABLE ASSEMBLY Battery - NOTE: Used With Flag Terminals
|
1 |
superseded
|
| 27 |
MTT32809T |
CABLE ASSEMBLY Battery Marked MTT328092 - NOTE: Used With Quick Connect Terminals
|
1 |
disc.
|
| 28 |
MVF397012 |
LOWER UNIT ASSEMBLY Complete (67# - 5 Speed) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 29 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 3 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
8/9 |
superseded
|
| 30 |
MAF174346 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete II - Design I - With Nylon Prop Nut
|
1 |
superseded
|
| 30 |
MAF174555 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Nylon Prop Nut
|
1 |
superseded
|
| 30 |
MAF174755 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design III - With Brass Insert Prop Nut
|
1 |
superseded
|
| 30 |
MAF12412 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II With Prop Kit 48-MAF174346
|
1 |
superseded
|
| 30 |
MAF12415 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub With Prop Kit 48-MAF174555 And MAF174755
|
1 |
superseded
|
| 31 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 32 |
MAR09901 |
PROP NUT - Design I - All Nylon
|
1 |
superseded
|
| 32 |
MAR09902 |
PROP NUT - Design II - Nylon With Brass Insert
|
1 |
superseded
|
| 4 |
MAR03604 |
RETAINER Handle Without Stop
|
1 |
superseded
|
| 5 |
MBT372102 |
HANDLE ASSEMBLY - Design I - Used With Flag Terminals
|
1 |
superseded
|
| 5 |
MBU37210S |
HANDLE ASSEMBLY - Design II - Used With Quick Connect Terminals
|
1 |
superseded
|
| 6 |
MBT05907 |
DECAL Indicator - Design I - Rabbit - Turtle - Arrows
|
1 |
superseded
|
| 6 |
MBT05908 |
DECAL Indicator - Design II - Numbers - Arrows
|
1 |
superseded
|
| 7 |
MBT07901 |
SEAL Felt
|
1 |
superseded
|
| 8 |
MAT09801 |
PAL NUT
|
1 |
superseded
|
| 9 |
MKT15003 |
SWITCH ASSEMBLY Rotary With Lead Wires - Design I - Used With Handle Assembly MBT372102
|
1 |
superseded
|
| 9 |
MKT15002 |
SWITCH ASSEMBLY Rotary Without Lead Wires - Design II - Used With Handle Assembly MBU37210S
|
1 |
superseded
|
