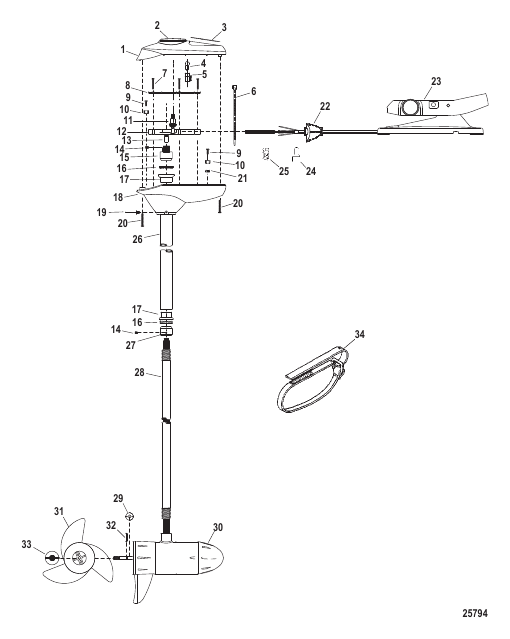

| # | Part Number | Description | Qty | Status |
|---|
| - |
MST9205BF |
MOUNT ASSEMBLY Complete Model 20.5 Gator - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MST921BF |
MOUNT ASSEMBLY Complete Model 21 Gator - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MST9360FW |
MOUNT ASSEMBLY Black - Complete Model Gator Flex 360 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
8M4000308 |
MOUNT ASSEMBLY Black - Complete Model Gator Flex II 360 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 1 |
MEF05317J |
COVER ASSEMBLY Top - Design I - Ruby Red Arrow
|
1 |
superseded
|
| 1 |
MEF05317K |
COVER ASSEMBLY Top - Design II - Ruby Red/Silver Arrow
|
1 |
superseded
|
| 1 |
MEF05317L |
COVER ASSEMBLY Top - Design III - With Two Delrin Washers Under Indicator
|
1 |
superseded
|
| 1 |
M899402T |
COVER ASSEMBLY Top Marked MEF05317M - Design IV - With Two Delrin Washers Under Indicator And Includes Gear Indicator
|
1 |
disc.
|
| 10 |
MFT16003 |
TERMINAL 4 Prong
|
2 |
superseded
|
| 11 |
MAF06901 |
GEAR Indicator
|
1 |
superseded
|
| 12 |
MAF12601 |
RACK GUIDE
|
1 |
superseded
|
| 13 |
MKP02101 |
BUSHING Pivot Shaft
|
1 |
superseded
|
| 14 |
MAF14201B |
SET SCREW (.250-20 x .312) Hex Socket Head
|
3 |
superseded
|
| 15 |
MAF39804 |
NUT ASSEMBLY Pinion
|
1 |
superseded
|
| 16 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design I - Upper And Lower Column
|
2 |
superseded
|
| 16 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design II - Upper Column Only
|
1 |
superseded
|
| 16 |
MFM00502 |
BEARING Ball (1.477 Outside Diameter) Sealed Style - 41 Balls - Design II - Lower Column Only
|
1 |
superseded
|
| 17 |
MFM00701 |
RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design I - Upper And Lower Column
|
2 |
superseded
|
| 17 |
MFM00701 |
RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design II - Upper Column Only
|
1 |
superseded
|
| 17 |
MFM00702 |
RETAINER CUP Bearing (1.482/1.487 Inside Diameter) - Design II - Lower Column Only
|
1 |
superseded
|
| 18 |
MEF004167 |
COVER Bottom
|
1 |
superseded
|
| 19 |
MLF11103 |
RIVET (.125 x .375)
|
3 |
superseded
|
| 2 |
MM5923 |
INDICATOR KIT Top Cover - NOTE: All Models Serviced With Ruby Red/Silver Arrow Style
|
1 |
disc.
|
| 20 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
3 |
superseded
|
| 21 |
MTT09803 |
PAL NUT
|
1 |
superseded
|
| 22 |
MAP07102 |
GROMMET
|
1 |
superseded
|
| 23 |
M899722T |
FOOT PEDAL ASSEMBLY Complete (63.00 Inches) Marked 8M3000138 - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
disc.
|
| 23 |
MLP300912 |
FOOT PEDAL ASSEMBLY Complete (69.00 Inches) - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 23 |
ML3001112 |
FOOT PEDAL ASSEMBLY Complete (84.00 Inches) - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 24 |
MBF02901 |
CONNECTOR Pigtail (#18-8)
|
AR |
superseded
|
| 24 |
MBF02902 |
CONNECTOR Pigtail (#22-14)
|
AR |
superseded
|
| 25 |
MFR16402 |
TERMINAL Spade (#14-10)
|
1 |
superseded
|
| 26 |
MAF16506 |
TUBE Outer (20.00 Inches)
|
1 |
superseded
|
| 27 |
MAF00605 |
CONE Bearing - Design I - Used With Open Style Ball Bearing - NOTE: Part No Longer Available - Order Kit MSS00601S
|
1 |
disc.
|
| 27 |
MSS00601S |
CONE AND BEARING KIT - Includes Design II Parts - MAF14201B And MFM00502 And MFM00702 And MSS00601
|
1 |
disc.
|
| 27 |
MSS00601 |
CONE Bearing - Design II - Used With Sealed Style Ball Bearing
|
1 |
superseded
|
| 28 |
MAF04912 |
COLUMN (45.00 Inches) Stainless Steel
|
1 |
superseded
|
| 29 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 3 |
MFF19006 |
DECAL Top Cover MotorGuide FW-FB 60 Lbs Thrust 24 Volt
|
1 |
superseded
|
| 30 |
MVF397012 |
LOWER UNIT ASSEMBLY Complete (67# - 5 Speed) Marked MVF397012 - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 30 |
M899700T |
LOWER UNIT ASSEMBLY Complete (67# - 5 Speed) Marked 8M4000144 - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 31 |
MAF174346 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete II - Design I - With Nylon Prop Nut
|
1 |
superseded
|
| 31 |
MAF174555 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Nylon Prop Nut
|
1 |
superseded
|
| 31 |
MAF174755 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design III - With Brass Insert Prop Nut
|
1 |
superseded
|
| 31 |
MAF12412 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II With Prop Kit 48-MAF174346
|
1 |
superseded
|
| 31 |
MAF12415 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub With Prop Kit 48-MAF174555 And MAF174755
|
1 |
superseded
|
| 32 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 33 |
MAR09901 |
PROP NUT - Design I - All Nylon
|
1 |
superseded
|
| 33 |
MAR09902 |
PROP NUT - Design II - Nylon With Brass Insert
|
1 |
superseded
|
| 34 |
MGA507A1 |
TIE DOWN STRAP Mount
|
1 |
disc.
|
| 4 |
MAF09302 |
LAMP (24 Volt)
|
1 |
superseded
|
| 5 |
MAF394012 |
HOLDER ASSEMBLY Lamp
|
1 |
superseded
|
| 6 |
MAF03001 |
TIE STRAP (.16 x 7/8.00 Inches)
|
AR |
superseded
|
| 6 |
MAF03002 |
TIE STRAP (.29/.31 x 7/9.00 Inches)
|
AR |
superseded
|
| 7 |
MXF13301 |
SCREW (#6 x 1.125)
|
6 |
superseded
|
| 8 |
MAF12701 |
COVER Rack Guide
|
1 |
superseded
|
| 9 |
MRT13303 |
SCREW (#10-32 x .500)
|
2 |
superseded
|
