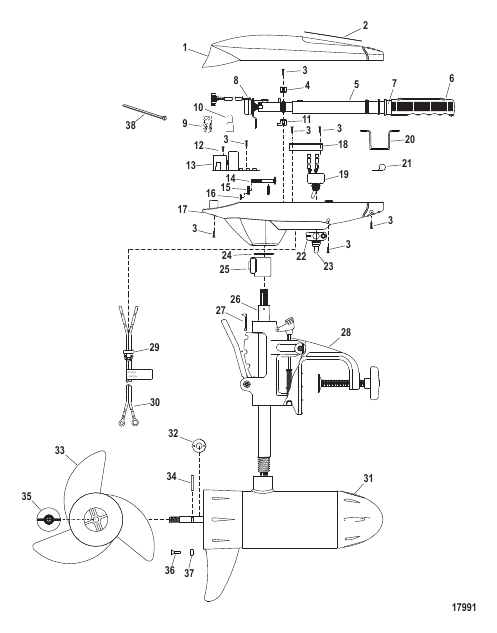

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
MET05317J |
COVER Top
|
1 |
superseded
|
| 10 |
MBF02901 |
CONNECTOR Pigtail (#18-8) [9B167577] & Below
|
8 |
superseded
|
| 10 |
MBF02901 |
CONNECTOR Pigtail (#18-8) [9B167578] & Up
|
3 |
superseded
|
| 10 |
MBF02902 |
CONNECTOR Pigtail (#22-14) [9B167578] & Up
|
3 |
superseded
|
| 11 |
MAR03602 |
CLAMP Handle Retainer
|
1 |
superseded
|
| 12 |
MXF14102 |
SCREW (#4 x .875) [9B167577] & Below
|
1 |
disc.
|
| 13 |
MAT15711 |
BOARD ASSEMBLY (12V) - NOTE: Part No Longer Available - Reference Service Bulletin 2004-02 [9B167577] & Below
|
1 |
disc.
|
| 14 |
MTT13402 |
BOLT (.250-20 x 1.75)
|
1 |
superseded
|
| 15 |
MTT17108 |
WASHER Curved
|
2 |
superseded
|
| 16 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 17 |
MET004167 |
COVER Bottom [9B000001] THRU [9B502776]
|
1 |
superseded
|
| 17 |
MET004197 |
COVER Bottom [9B502777] & Up
|
1 |
superseded
|
| 18 |
MAT15506 |
PLATE Cable [9B000001] THRU [9B630653]
|
1 |
superseded
|
| 19 |
MFP15307 |
SWITCH ASSEMBLY Toggle
|
1 |
superseded
|
| 2 |
MFT19013 |
DECAL Top Cover MotorGuide FW-HTV 12 Volt - Design I
|
1 |
superseded
|
| 2 |
MFT19016 |
DECAL Top Cover MotorGuide Variable Speed FW-54 12 Volt - Design II
|
1 |
disc.
|
| 2 |
MFT19019 |
DECAL Top Cover MotorGuide Digital 54 Lbs Thrust 12 Volt - Design III
|
1 |
superseded
|
| 20 |
MAT15504 |
BRACKET [9B630654] & Up
|
1 |
superseded
|
| 21 |
MKP03604 |
P CLAMP (#10 x .375) [9B630654] & Up
|
2 |
superseded
|
| 22 |
MAT05714 |
DECAL Toggle Switch
|
1 |
superseded
|
| 23 |
MFP17701 |
BOOT Toggle Switch
|
1 |
superseded
|
| 24 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 25 |
MXT15802 |
COLLAR ASSEMBLY Depth Adjust - Gray/Black - T Style
|
1 |
superseded
|
| 25 |
MTM15804 |
COLLAR ASSEMBLY Depth Adjust - Black - 5 Lobe Style
|
1 |
superseded
|
| 26 |
MFR04914 |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
superseded
|
| 26 |
MFR04912 |
COLUMN (42.00 Inches) Stainless Steel
|
1 |
superseded
|
| 27 |
MSK10001 |
FRICTION STRIP Metal
|
1 |
superseded
|
| 28 |
MSK30005S |
MOUNT ASSEMBLY Complete Model 09 - Marked MSK300052 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
disc.
|
| 29 |
MGR01901 |
BUSHING Battery Cable
|
1 |
superseded
|
| 3 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel [9B167577] & Below
|
11 |
superseded
|
| 3 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel [9B167578] & Up
|
9 |
superseded
|
| 30 |
MXT328062 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 31 |
MCF397172 |
LOWER UNIT ASSEMBLY Complete (54# - Variable) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown [9B167577] & Below
|
1 |
disc.
|
| 31 |
MCC397012 |
LOWER UNIT ASSEMBLY Complete (54# - Var/Rev) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown [9B167578] & Up
|
1 |
superseded
|
| 32 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 33 |
MAF174346 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete II - Design I - With Nylon Prop Nut
|
1 |
superseded
|
| 33 |
MAF174555 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Nylon Prop Nut
|
1 |
superseded
|
| 33 |
MAF174755 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design III - With Brass Insert Prop Nut
|
1 |
superseded
|
| 33 |
MAF12412 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II With Prop Kit 48-MAF174346
|
1 |
superseded
|
| 33 |
MAF12415 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub With Prop Kit 48-MAF174555 And MAF174755
|
1 |
superseded
|
| 34 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 35 |
MAR09901 |
PROP NUT - Design I - All Nylon
|
1 |
superseded
|
| 35 |
MAR09902 |
PROP NUT - Design II - Nylon With Brass Insert
|
1 |
superseded
|
| 36 |
MDK13301 |
SCREW (.250-20 x .750)
|
1 |
superseded
|
| 37 |
MAR00202 |
ANODE Zinc - Design I
|
1 |
superseded
|
| 37 |
M879341T |
ANODE Aluminum - Design II
|
1 |
disc.
|
| 38 |
MAF03001 |
TIE STRAP (.16 x 7/8.00 Inches) [9B167578] & Up
|
1 |
superseded
|
| 4 |
MAR03604 |
RETAINER Handle Without Stop
|
1 |
superseded
|
| 5 |
MET372062 |
HANDLE ASSEMBLY [9B167577] & Below
|
1 |
superseded
|
| 5 |
MET372072 |
HANDLE ASSEMBLY [9B167578] & Up
|
1 |
superseded
|
| 6 |
MBT07002 |
GRIP Handle
|
1 |
superseded
|
| 7 |
MAT05903 |
DECAL Speed Indicator
|
1 |
superseded
|
| 8 |
MAT316822 |
POTENTIOMETER ASSEMBLY - NOTE: For MET372062 Handle Assembly
|
1 |
superseded
|
| 8 |
MAT316832 |
POTENTIOMETER ASSEMBLY - NOTE: For MET372072 Handle Assembly
|
1 |
superseded
|
| 9 |
MBR16102 |
TERMINAL Flag (Female #18-12) [9B167577] & Below
|
1 |
superseded
|
