| # | Part Number | Description | Qty | Status |
|---|
| - |
MHM397062 |

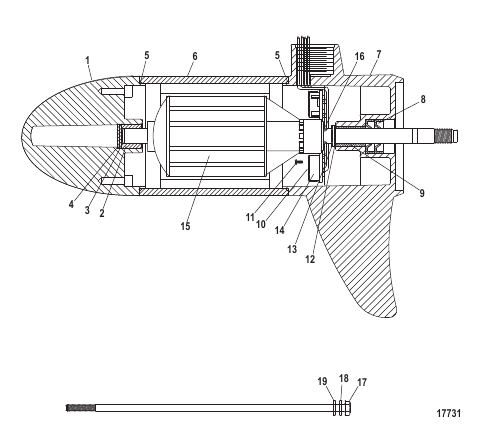

LOWER UNIT ASSEMBLY Complete (30# - 5/2 Speed)
|
1 |
superseded
|
| 1 |
MFF321239 |
NOSE CAP ASSEMBLY
|
1 |
disc.
|
| 10 |
MHF320112 |
BRUSH CARD ASSEMBLY Less Springs
|
1 |
superseded
|
| 11 |
MR22801 |
SCREW (#10-32 x .500) Self Tap Washer Head Brush Card
|
2 |
superseded
|
| 12 |
MR22601 |
WASHER (.378 x .655 x .026) Nylatron
|
1 |
superseded
|
| 13 |
MR22701 |
THRUST WASHER (.380 x .660 x .025)
|
1 |
superseded
|
| 14 |
MR21402 |
SPRING Brushes
|
2 |
disc.
|
| 15 |
MHM320712 |
ARMATURE
|
1 |
superseded
|
| 16 |
MR21902 |
E RING
|
1 |
superseded
|
| 17 |
MR21814 |
THRU BOLT
|
2 |
superseded
|
| 18 |
MR21602 |
WASHER (.204 x .375 x .048) Stainless Steel
|
2 |
superseded
|
| 19 |
MR22202 |
SEAL Static - Teflon Coated
|
2 |
superseded
|
| 2 |
MR20604 |
BEARING (.500) Sintered Bronze
|
1 |
superseded
|
| 3 |
MR22501 |
THRUST DISK Nylatron
|
1 |
superseded
|
| 4 |
MR22401B |
THRUST DISK Plated
|
1 |
superseded
|
| 5 |
MHF21702 |
O-RING
|
2 |
superseded
|
| 6 |
MFF321079 |
HOUSING ASSEMBLY With Magnets
|
1 |
superseded
|
| 7 |
MFF320532 |
COMM CAP ASSEMBLY
|
1 |
superseded
|
| 8 |
MR22301 |
SEAL Armature Shaft
|
2 |
superseded
|
| 9 |
MR20603 |
BEARING (.750) Sintered Bronze
|
1 |
superseded
|
