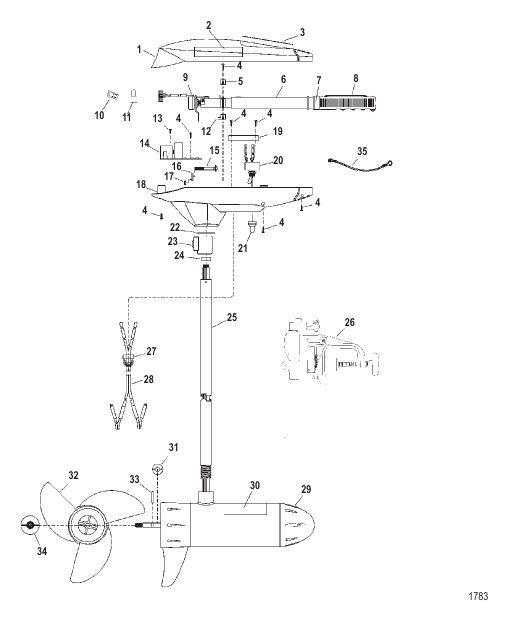

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
MET053167 |
COVER Top
|
1 |
superseded
|
| 10 |
MBR16102 |
TERMINAL Flag (Female #18-12)
|
1 |
superseded
|
| 11 |
MBF02901 |
CONNECTOR Pigtail (#18-8)
|
8 |
superseded
|
| 12 |
MAR03602 |
CLAMP Handle Retainer
|
1 |
superseded
|
| 13 |
MXF14102 |
SCREW (#4 x .875)
|
1 |
disc.
|
| 14 |
MAT15712 |
BOARD ASSEMBLY (24V) - NOTE: Part No Longer Available - Reference Service Bulletin 2004-02 To Order Conversion Kit
|
1 |
disc.
|
| 15 |
MTT13402 |
BOLT (.250-20 x 1.75)
|
1 |
superseded
|
| 16 |
MTT17108 |
WASHER Curved
|
2 |
superseded
|
| 17 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 18 |
MAT004128 |
COVER Bottom
|
1 |
superseded
|
| 19 |
MAT15506 |
PLATE Cable
|
1 |
superseded
|
| 2 |
MTM05710 |
DECAL Top Cover Thruster
|
2 |
disc.
|
| 20 |
MFP15307 |
SWITCH ASSEMBLY Toggle
|
1 |
superseded
|
| 21 |
MFP17701 |
BOOT Toggle Switch
|
1 |
superseded
|
| 22 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 23 |
MXT15802 |
COLLAR ASSEMBLY Depth Adjust - Gray/Black - T Style - Design I
|
1 |
superseded
|
| 23 |
MTM15804 |
COLLAR ASSEMBLY Depth Adjust - Black - 5 Lobe Style - Design II
|
1 |
superseded
|
| 24 |
MBT02301 |
BUMPER Rubber
|
1 |
disc.
|
| 25 |
MFR04914 |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
superseded
|
| 26 |
MSK300032 |
MOUNT ASSEMBLY Complete Model 09 - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 27 |
MGR01901 |
BUSHING Battery Cable
|
1 |
superseded
|
| 28 |
MTM328092 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 29 |
MTM397032 |
LOWER UNIT ASSEMBLY Complete (50# - Variable) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown - NOTE: Part No Longer Available - Order Conversion Kit MTC60201S - Includes MTC397012 And MAT316832
|
1 |
disc.
|
| 3 |
MFM05717 |
DECAL Top Cover Mariner T5000V 24 Volts 50 Lbs Thrust
|
1 |
disc.
|
| 3 |
MFM05714 |
DECAL Top Cover Mercury
|
1 |
disc.
|
| 30 |
MTM06002 |
DECAL Thruster
|
1 |
disc.
|
| 31 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 32 |
MAF174425 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Design I - With Nylon Prop Nut
|
1 |
superseded
|
| 32 |
MAF174555 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Nylon Prop Nut
|
1 |
superseded
|
| 32 |
MAF174755 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design III - With Brass Insert Prop Nut
|
1 |
superseded
|
| 33 |
MBR10201 |
PIN Prop Drive (.125 x 1.00)
|
1 |
superseded
|
| 34 |
MAR09901 |
PROP NUT - Design I - All Nylon
|
1 |
superseded
|
| 34 |
MAR09902 |
PROP NUT - Design II - Nylon With Brass Insert
|
1 |
superseded
|
| 35 |
MM300012 |
WIRE ASSEMBLY Jumper (16.00 Inches) White
|
1 |
superseded
|
| 4 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
11 |
superseded
|
| 5 |
MAR03604 |
RETAINER Handle
|
1 |
superseded
|
| 6 |
MET372062 |
HANDLE ASSEMBLY
|
1 |
superseded
|
| 7 |
MAT05903 |
DECAL Speed Indicator
|
1 |
superseded
|
| 8 |
MBT07002 |
GRIP Handle
|
1 |
superseded
|
| 9 |
MAT316822 |
POTENTIOMETER ASSEMBLY
|
1 |
superseded
|
