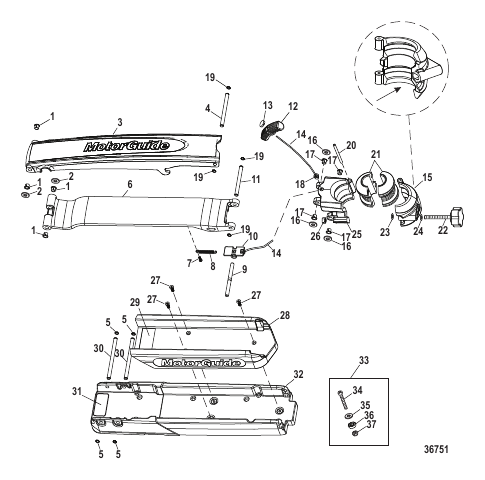

Gator 360 Flex II Mount (Black) (8M4000308)
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M4000308 |
ОПОРА В СБОРЕ Черный – в сборе MOUNT ASSEMBLY Black - Complete |
1 | superseded |
| 1 | MFK02101T |
ВТУЛКА Nyliner (0.375) BUSHING Nyliner (.375) |
4 | superseded |
| 10 | MBK01301T |
ЩЕКОЛДА LOCKSLIDE |
1 | discontinued |
| 11 | MGX10202T |
ШТИФТ Нижний рычаг PIN Lower Arm |
1 | discontinued |
| 12 | MAK372012 |
КОМПЛЕКТ РУКОЯТКИ / КНОПОК HANDLE/BUTTON KIT |
1 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Кнопка рукоятки троса NOT SOLD SEPARATE Rope Handle Button |
1 | |
| 14 | MDK04301T |
ТРОС (40.00"), черный ROPE (40.00 Inches) Black |
1 | superseded |
| 15 | 879330A52 |
ДВЕРЬ В СБОРЕ Черный DOOR ASSEMBLY Black |
1 | discontinued |
| 15 | 879330T54 |
ДВЕРЬ Черный Продолговатое отверстие для вала ручки DOOR Black Oblong Hole Style For Knob Shaft |
1 | discontinued |
| 16 | MR22601T |
ШАЙБА (0.378 x 0.655 x 0.026), нилатрон WASHER (.378 x .655 x .026) Nylatron |
3 | |
| 17 | MFK02101T |
ВТУЛКА Nyliner (0.375) BUSHING Nyliner (.375) |
4 | superseded |
| 18 | MBK02101T |
ВТУЛКА Трос BUSHING Rope |
1 | discontinued |
| 19 | MRK04601T |
КОЛЬЦО Стопорное (0.375) RING Retaining (.375) |
4 | discontinued |
| 2 | MRK17102T |
ШАЙБА (0.385 x 0.880 x 0.062), нейлон WASHER (.385 x .880 x .062) Nylon |
2 | discontinued |
| 20 | MBK10401T |
ШТИФТ PIN |
1 | discontinued |
| 21 | 8M4000305 |
КОМПЛЕКТ РУКАВА Изолятор SLEEVE KIT Isolator |
1 | discontinued |
| 22 | M889285A2 |
КОМПЛЕКТ РУЧКИ С пятью лопастями (3.425") KNOB KIT Five Lobe (3.425 Inches) |
1 | discontinued |
| 23 | MRK17103T |
ШАЙБА (0.335 x 0.630 x 0.060), черный нейлон WASHER (.335 x .630 x .060) Black Nylon |
1 | discontinued |
| 24 | MXT01101T |
ШАЙБА (0.400 x 0.810 x 0.060), нержавеющая сталь WASHER (.400 x .810 x .060) Stainless Steel |
1 | discontinued |
| 25 | MGX36101T |
КРОНШТЕЙН Черный BRACKET Black |
1 | discontinued |
| 26 | 86226 |
ГАЙКА (.375-16) NUT (.375-16) |
1 | superseded |
| 27 | MGX13701T |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
3 | discontinued |
| 28 | MBK03401T |
КРЕПЛЕНИЕ ТИПА «DECKET» Черный DECKET Black |
1 | discontinued |
| 29 | MGX05601T |
НАКЛЕЙКА Предупредительная этикетка DECAL Warning Label |
1 | discontinued |
| 3 | 879330T56 |
НОСОВОЙ РЫЧАГ Черный BOW ARM Black |
1 | discontinued |
| 30 | MBK10201T |
ШТИФТ Рычаг основания PIN Base Arm |
2 | discontinued |
| 31 | MGX01601T |
ОГРАНИЧИТЕЛЬ Резина REST Rubber |
1 | discontinued |
| 32 | MGX01001T |
ПАЛУБНЫЙ КАНАЛ Черный DECK CHANNEL Black |
1 | discontinued |
| 33 | 8M4000873 |
МОНТАЖНЫЙ КОМПЛЕКТ MOUNTING KIT |
1 | discontinued |
| 34 | MGX13501T |
ВИНТ (0.250-20 x 3.00) Крепление SCREW (.250-20 x 3.00) Mounting |
4 | discontinued |
| 35 | MGX17102T |
ШАЙБА (0.280 x 1.00 x 0.046), нержавеющая сталь Крепление WASHER (.280 x 1.00 x .046) Stainless Steel Mounting |
4 | discontinued |
| 36 | MGX17104T |
ШАЙБА (0.290 x 1.060 x 0.250), черный нейлон Крепление WASHER (.290 x 1.060 x .250) Black Nylon Mounting |
4 | discontinued |
| 37 | MXT09802T |
КОНТРГАЙКА (0.250-20), нержавеющая сталь Крепление LOCKNUT (.250-20) Stainless Steel Mounting |
4 | discontinued |
| 4 | MGX10201T |
ШТИФТ Верхний рычаг PIN Upper Arm |
1 | discontinued |
| 5 | MRK04601T |
КОЛЬЦО Стопорное (0.375) RING Retaining (.375) |
4 | discontinued |
| 6 | MGX00901T |
НОСОВОЙ РЫЧАГ Черный BOW ARM Black |
1 | discontinued |
| 7 | MGX13302T |
ВИНТ (M4 x 13) SCREW (M4 x 13) |
1 | discontinued |
| 8 | MAK01403T |
ПРУЖИНА SPRING |
1 | discontinued |
| 9 | MDK10601T |
ШТИФТ Щеколда PIN Lockslide |
1 | discontinued |
