| # | Part Number | Description | Qty | Status |
|---|
| - |
MLP300492 |

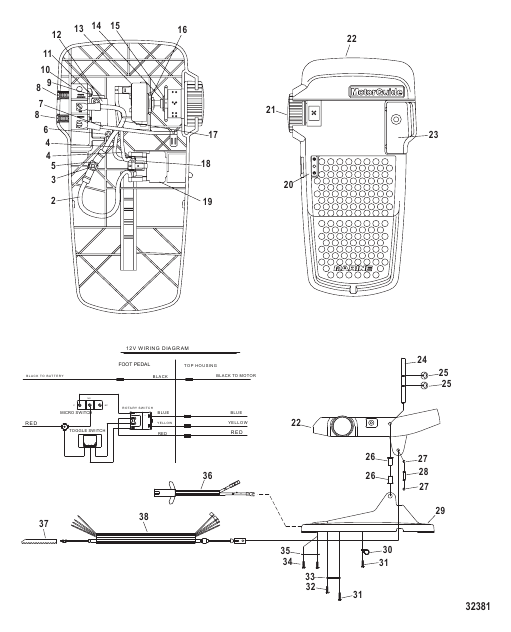

FOOT PEDAL ASSEMBLY Complete (69.00 Inches)
|
1 |
superseded
|
| - |
MLP09101 |
PIVOT Cable
|
1 |
superseded
|
| - |
8231162 |
TUBING (1.50 Inches) Heat Shrink
|
1 |
superseded
|
| - |
M9767 |
CABLE/STUD ASSEMBLY Control (69.00 Inches)
|
1 |
disc.
|
| 10 |
MAP15101 |
SWITCH ASSEMBLY Micro
|
1 |
superseded
|
| 11 |
MKP15701 |
BOOT Micro Switch
|
1 |
superseded
|
| 12 |
MLP12303 |
PLATE Retainer
|
1 |
superseded
|
| 13 |
MHF15001 |
SWITCH ASSEMBLY Rotary
|
1 |
superseded
|
| 14 |
MLP04601 |
RING Retaining
|
1 |
superseded
|
| 15 |
MAK17102 |
WASHER Nylon
|
1 |
superseded
|
| 16 |
MKP17101 |
LOCKWASHER (.375)
|
1 |
superseded
|
| 17 |
MM309612 |
CABLE ASSEMBLY (4.00 Inches) Black - Two Wires With Terminals
|
1 |
superseded
|
| 18 |
MAT08001 |
SLEEVE Insulating
|
1 |
superseded
|
| 19 |
MFP15305 |
SWITCH ASSEMBLY Toggle
|
1 |
superseded
|
| 2 |
MM309712 |
CABLE ASSEMBLY (4.00 Inches) Red - One Ring/One Flag Terminals
|
1 |
superseded
|
| 20 |
MLP05709 |
DECAL Hi ByPass Toggle Switch
|
1 |
superseded
|
| 21 |
MLP08207 |
KNOB ASSEMBLY
|
1 |
superseded
|
| 22 |
MLP10103 |
PEDAL
|
1 |
superseded
|
| 23 |
MLP02601 |
BUTTON Micro Switch
|
1 |
superseded
|
| 24 |
MLP10201 |
PIN Foot Pedal Rocker
|
1 |
superseded
|
| 25 |
MBK04602 |
E RING
|
2 |
superseded
|
| 26 |
MKP02101 |
BUSHING Pivot Shaft
|
2 |
superseded
|
| 27 |
MFP04601 |
E RING
|
2 |
superseded
|
| 28 |
MAP105011 |
PIN Pivot Cable Pivot
|
1 |
superseded
|
| 29 |
MLP00301 |
BASE Foot Pedal
|
1 |
superseded
|
| 3 |
MGR13301 |
SCREW (#10 x .500)
|
1 |
superseded
|
| 30 |
MKP03601 |
P CLAMP (.250)
|
1 |
superseded
|
| 31 |
MXF13501 |
SCREW (#6 x .500)
|
3 |
superseded
|
| 32 |
MIR13301 |
SCREW (#6 x .375)
|
2 |
superseded
|
| 33 |
MKP12301 |
PLATE Control Cable
|
1 |
superseded
|
| 34 |
MIR13301 |
SCREW (#6 x .375)
|
2 |
superseded
|
| 35 |
MKP03602 |
PLATE Battery Cable
|
1 |
superseded
|
| 36 |
MTF32812 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 37 |
MAP12501 |
RACK
|
1 |
superseded
|
| 38 |
MLP327032 |
CABLE ASSEMBLY Control (69.00 Inches)
|
1 |
superseded
|
| 4 |
MM301212 |
CABLE ASSEMBLY (4.00 Inches) Red - With Two Flag Terminals
|
2 |
superseded
|
| 5 |
MTT09803 |
PAL NUT
|
1 |
superseded
|
| 6 |
MAF13501 |
SCREW (#6 x .500)
|
2 |
superseded
|
| 7 |
MM303212 |
WIRE ASSEMBLY Jumper (4.00 Inches) Red
|
1 |
superseded
|
| 8 |
MLP13501 |
SCREW (#6-32 x 1.50)
|
2 |
superseded
|
| 9 |
MSP09802 |
NUT (#6-32)
|
2 |
superseded
|
