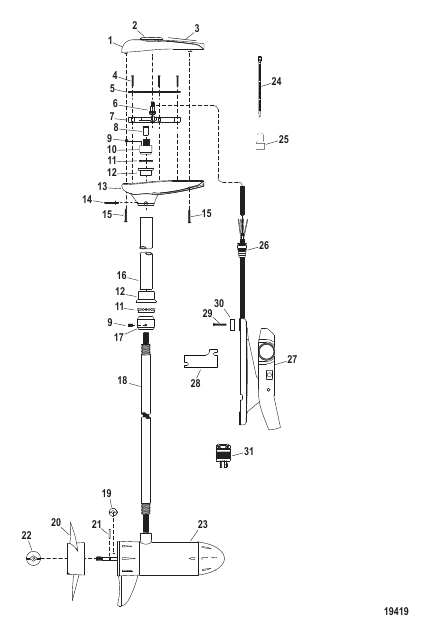

| # | Part Number | Description | Qty | Status |
|---|
| - |
MST90336 |
MOUNT ASSEMBLY Complete Model 01 - 36 Inch - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MST90342 |
MOUNT ASSEMBLY Complete Model 01 - 42 Inch - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MST90736A |
MOUNT ASSEMBLY Complete Model 07 - 36 Inch - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| - |
MST90742A |
MOUNT ASSEMBLY Complete Model 07 - 42 Inch - NOTE: See Mount Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 1 |
MM5898 |
COVER KIT Top
|
1 |
disc.
|
| 1 |
MTF05338 |
COVER ASSEMBLY Top
|
1 |
superseded
|
| 10 |
MAF39804 |
NUT ASSEMBLY Pinion - Design I - NOTE: Part No Longer Available - Order Kit M879293A1
|
1 |
superseded
|
| 10 |
M879293A1 |
NUT KIT Pinion - Design II - NOTE: Includes MFM00502 Bearing And MFM00702 Retainer Cup
|
1 |
disc.
|
| 11 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design I - Upper And Lower Column
|
2 |
superseded
|
| 11 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter) Open Style - 15 Balls - Design II - Upper Column Only
|
1 |
superseded
|
| 11 |
MFM00502 |
BEARING Ball (1.477 Outside Diameter) Sealed Style - 41 Balls - Design II - Upper Or Lower Column Only
|
1 |
superseded
|
| 12 |
MFM00701 |
RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design I - Upper And Lower Column
|
2 |
superseded
|
| 12 |
MFM00701 |
RETAINER CUP Bearing (1.546/1.556 Inside Diameter) - Design II - Upper Column Only
|
1 |
superseded
|
| 12 |
MFM00702 |
RETAINER CUP Bearing (1.482/1.487 Inside Diameter) - Design II - Upper Or Lower Column Only
|
1 |
superseded
|
| 13 |
MTF004067 |
COVER Bottom
|
1 |
superseded
|
| 14 |
MLF11103 |
RIVET (.125 x .375)
|
3 |
superseded
|
| 15 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
3 |
superseded
|
| 16 |
MAF16501 |
TUBE Outer (13.00 Inches)
|
1 |
superseded
|
| 16 |
MAF16506 |
TUBE Outer (20.00 Inches)
|
1 |
superseded
|
| 17 |
MAF00605 |
CONE Bearing - Design I - Used With Open Style Ball Bearing - NOTE: Part No Longer Available - Order Kit MSS00601S
|
1 |
disc.
|
| 17 |
MSS00601S |
CONE AND BEARING KIT - NOTE: Includes Design II Parts - MAF14201B And MFM00502 And MFM00702 And MSS00601
|
1 |
disc.
|
| 17 |
MSS00601 |
CONE Bearing - Design II - Used With Sealed Style Ball Bearing
|
1 |
superseded
|
| 18 |
MAF04901 |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
superseded
|
| 18 |
MAL04904 |
COLUMN (36.00 Inches) Aluminum Brite Finish
|
1 |
superseded
|
| 18 |
MDF04902 |
COLUMN (42.00 Inches) Aluminum Satin Finish
|
1 |
disc.
|
| 18 |
MAL04906 |
COLUMN (42.00 Inches) Aluminum Brite Finish
|
1 |
superseded
|
| 18 |
MAF04909 |
COLUMN (42.00 Inches) Stainless Steel
|
1 |
superseded
|
| 18 |
MAF04910 |
COLUMN (50.00 Inches) Stainless Steel
|
1 |
superseded
|
| 19 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 2 |
MM5921 |
INDICATOR KIT Top Cover
|
1 |
disc.
|
| 20 |
MAF174346 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete II - Design I - With Nylon Prop Nut
|
1 |
superseded
|
| 20 |
MAF174555 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design II - With Nylon Prop Nut
|
1 |
superseded
|
| 20 |
MAF174755 |
PROP KIT 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub - Design III - With Brass Insert Prop Nut
|
1 |
superseded
|
| 20 |
MAF12412 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II With Prop Kit 48-MAF174346
|
1 |
superseded
|
| 20 |
MAF12415 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete - Taper Hub With Prop Kit 48-MAF174555 And MAF174755
|
1 |
superseded
|
| 21 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 22 |
MAR09901 |
PROP NUT - Design I - All Nylon
|
1 |
superseded
|
| 22 |
MAR09902 |
PROP NUT - Design II - Nylon With Brass Insert
|
1 |
superseded
|
| 23 |
MEF397072 |
LOWER UNIT ASSEMBLY Complete (46# - 5 Speed) - Design I - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 23 |
M899702T |
LOWER UNIT ASSEMBLY Complete (46# - 5 Speed) Marked 8M4000146 - Design II - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
disc.
|
| 24 |
MAF03001 |
TIE STRAP (.16 x 7/8.00 Inches)
|
AR |
superseded
|
| 24 |
MAF03002 |
TIE STRAP (.29/.31 x 7/9.00 Inches)
|
AR |
superseded
|
| 25 |
MBF02901 |
CONNECTOR Pigtail (#18-8)
|
AR |
superseded
|
| 25 |
MBF02902 |
CONNECTOR Pigtail (#22-14)
|
AR |
superseded
|
| 26 |
MAP07101 |
GROMMET
|
1 |
superseded
|
| 27 |
MLP300492 |
FOOT PEDAL ASSEMBLY Complete (69.00 Inches) - NOTE: Plug In Style Battery Cable - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 27 |
MLP300652 |
FOOT PEDAL ASSEMBLY Complete (69.00 Inches) - NOTE: Ring Terminal Style Battery Cable - NOTE: See Foot Pedal Assembly Section for Service Parts Breakdown
|
1 |
superseded
|
| 27 |
MLP300502 |
FOOT PEDAL ASSEMBLY Complete (84.00 Inches) - NOTE: Plug In Style Battery Cable - NOTE: See Foot Pedal Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 28 |
MLP312315 |
WEIGHT PLATE ASSEMBLY
|
1 |
superseded
|
| 29 |
MXF13501 |
SCREW (#6 x .500)
|
4 |
superseded
|
| 3 |
MTF19003 |
DECAL SET Top Cover MotorGuide Pro Series 4300 12 Volts 43 Lbs Thrust
|
1 |
superseded
|
| 30 |
MKP02301 |
PAD Foot Pedal
|
4 |
superseded
|
| 31 |
MTF02901 |
PLUG Special Models
|
1 |
superseded
|
| 4 |
MAF13301 |
SCREW (#6 x 1.125)
|
6 |
superseded
|
| 5 |
MAF12701 |
COVER Rack Guide
|
1 |
superseded
|
| 6 |
MAF06901 |
GEAR Indicator
|
1 |
superseded
|
| 7 |
MAF12601 |
RACK GUIDE
|
1 |
superseded
|
| 8 |
MKP02101 |
BUSHING Pivot Shaft
|
1 |
superseded
|
| 9 |
MAF14201B |
SET SCREW (.250-20 x .312) Hex Socket Head
|
3 |
superseded
|
