Mercury Marine [Updated: Apr. 10, 2026]
/
Trolling Motor
/
MotorGuide HVF And HVT Series
/
[1996 & Up] - Cat.# 90-885209
/

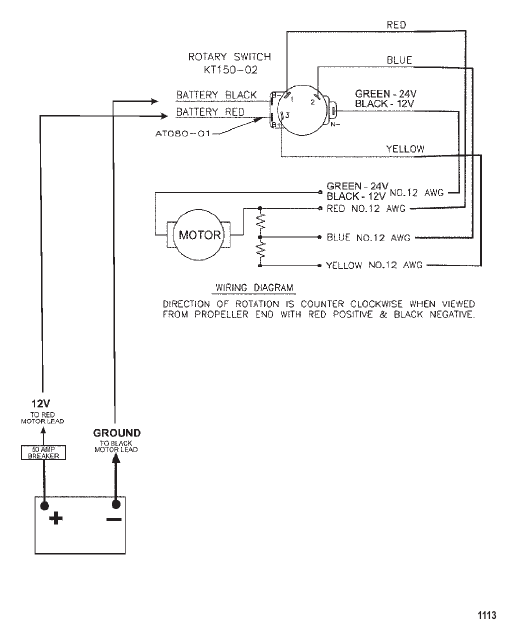

Wire Diagram (Model HVT3000 / HVT3200) (12 Volt)
Wire Diagram (Model HVT3000 / HVT3200) (12 Volt)
Parts (1)
#
Part Number
Description
Qty
Status
-
NOPART
NO PARTS LIST
0
