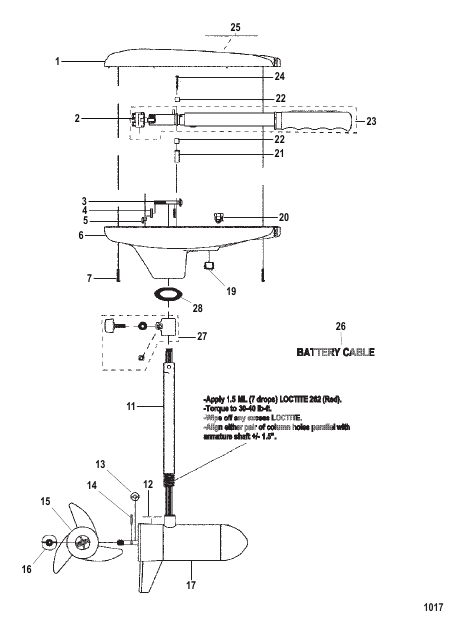

| # | Part Number | Description | Qty | Status |
|---|
| - |
MCK300042 |
MOUNT ASSEMBLY Complete Model 03 - NOTE: See MotorGuide Transom And Bow Mounts Parts Manual 90-885199 For Service Parts Breakdown
|
1 |
superseded
|
| - |
MKM300032 |
MOUNT ASSEMBLY Complete Model 31 - NOTE: See MotorGuide Transom And Bow Mounts Parts Manual 90-885199 For Service Parts Breakdown
|
1 |
superseded
|
| 1 |
MPT053104 |
COVER ASSEMBLY Top
|
1 |
superseded
|
| 11 |
MFR04914 |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
superseded
|
| 11 |
MFR04915 |
COLUMN (42.00 Inches) Stainless Steel
|
1 |
superseded
|
| 12 |
MET06004 |
DECAL Whisper Guide Propulsion System Power Plus
|
1 |
superseded
|
| 13 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 14 |
MBR10201 |
PIN Prop Drive (.125 x 1.00)
|
1 |
superseded
|
| 15 |
MFF12403 |
PROPELLER 2 Blade Nylon - 3.0 Inch
|
1 |
superseded
|
| 16 |
MAR09901 |
PROP NUT
|
1 |
superseded
|
| 17 |
MFF397042 |
LOWER UNIT ASSEMBLY Complete (30# - 5/2 Speed) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 19 |
MFP02103 |
PLUG (.500)
|
1 |
disc.
|
| 2 |
MKT15002 |
SWITCH ASSEMBLY Rotary
|
1 |
superseded
|
| 20 |
MGR019031 |
GROMMET
|
1 |
superseded
|
| 21 |
MM100731 |
SPACER
|
1 |
disc.
|
| 22 |
MAR03601 |
CLAMP
|
1 |
superseded
|
| 23 |
MBT372032 |
HANDLE ASSEMBLY
|
1 |
disc.
|
| 24 |
MAR13301 |
SCREW (#8 x 1.375)
|
1 |
superseded
|
| 25 |
MPT05609 |
DECAL Top Cover HVT3000
|
1 |
disc.
|
| 26 |
MTT328032 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 27 |
MAR15801 |
COLLAR ASSEMBLY Depth Adjust
|
1 |
superseded
|
| 28 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 3 |
MTT13401 |
BOLT
|
1 |
superseded
|
| 4 |
MTT17104 |
WASHER Curved
|
1 |
superseded
|
| 5 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
2 |
superseded
|
| 6 |
MFR00406 |
COVER Bottom
|
1 |
superseded
|
| 7 |
MLF14104 |
SCREW (#8 x 1.00)
|
1 |
superseded
|
