| # | Part Number | Description | Qty | Status |
|---|
| - |
MET397045 |

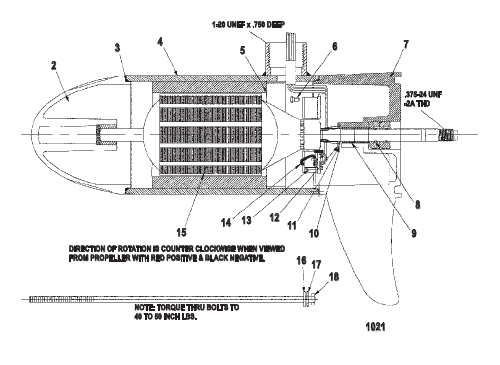

LOWER UNIT ASSEMBLY Complete (46# - 5/2 Speed)
|
1 |
superseded
|
| - |
M6220T |
REPAIR KIT Lower Unit Assembly - NOTE: See Repair Kit - Lower Unit Assembly Section For Complete List Of Component Parts In Kit
|
1 |
superseded
|
| 10 |
MR22601 |
WASHER (.378 x .655 x .026) Nylatron
|
1 |
superseded
|
| 11 |
MR22701 |
THRUST WASHER (.380 x .660 x .025)
|
1 |
superseded
|
| 12 |
MR21901 |
E RING
|
1 |
superseded
|
| 13 |
MR21402 |
SPRING Brushes
|
2 |
disc.
|
| 14 |
MDF320112 |
BRUSH CARD ASSEMBLY Less Springs
|
1 |
superseded
|
| 15 |
MKF320712 |
ARMATURE
|
1 |
superseded
|
| 16 |
MR22201 |
SEAL Static - Design I
|
4 |
superseded
|
| 16 |
MR22202 |
SEAL Static - Teflon Coated - Design II - Blue Teflon Coated
|
4 |
superseded
|
| 17 |
MR21602 |
WASHER (.204 x .375 x .048) Stainless Steel
|
4 |
superseded
|
| 18 |
MR218015 |
THRU BOLT ASSEMBLY With Ref 16 And 17
|
2 |
superseded
|
| 2 |
MXF321219 |
NOSE CAP ASSEMBLY
|
1 |
superseded
|
| 3 |
MR21701 |
O-RING - Design I
|
2 |
superseded
|
| 3 |
MR21702 |
O-RING (3.187 x .073) With Blue Teflon - Design II - Blue Teflon Coated
|
2 |
superseded
|
| 4 |
MET321019 |
HOUSING ASSEMBLY With Magnets - NOTE: Service With Black - Paint As Required
|
1 |
superseded
|
| 5 |
MJF23301 |
RETAINER
|
1 |
superseded
|
| 6 |
MR22801 |
SCREW (#10-32 x .500) Self Tap Washer Head Brush Card
|
2 |
superseded
|
| 7 |
MPF320539 |
COMM CAP ASSEMBLY - NOTE: Service With Black - Paint As Required
|
1 |
superseded
|
| 8 |
MR22301 |
SEAL Armature Shaft
|
2 |
superseded
|
| 9 |
MR20601 |
BEARING (.750) Sintered Bronze Comm Cap
|
1 |
superseded
|
