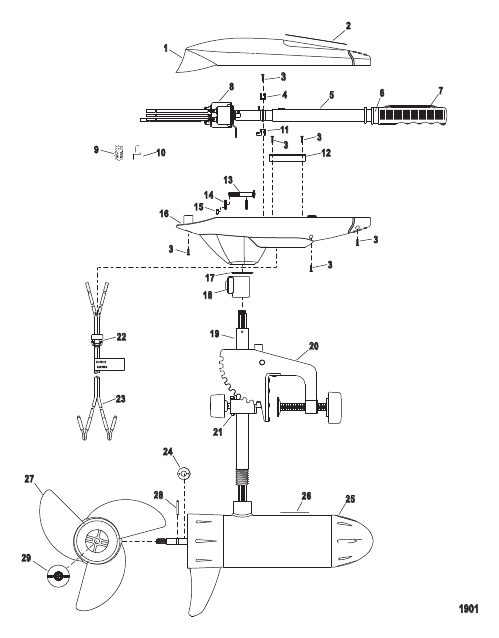

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
MET05317H |
COVER Top - MotorGuide Energy
|
1 |
superseded
|
| 1 |
MET05317J |
COVER Top - MotorGuide
|
1 |
superseded
|
| 10 |
MBF02901 |
CONNECTOR Pigtail (#18-8)
|
4 |
superseded
|
| 11 |
MAR03605 |
RETAINER Handle With Stop
|
1 |
superseded
|
| 12 |
MAT15506 |
PLATE Cable
|
1 |
superseded
|
| 13 |
MTT13402 |
BOLT (.250-20 x 1.75)
|
1 |
superseded
|
| 14 |
MTT17108 |
WASHER Curved
|
2 |
superseded
|
| 15 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 16 |
MET004167 |
COVER Bottom
|
1 |
superseded
|
| 17 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 18 |
MAR15802 |
COLLAR ASSEMBLY Depth Adjust - Black/Black T Style Knob - Black - T Style
|
1 |
superseded
|
| 18 |
MXT15802 |
COLLAR ASSEMBLY Depth Adjust - Gray/Black - T Style - Gray - T Style
|
1 |
superseded
|
| 18 |
MTM15804 |
COLLAR ASSEMBLY Depth Adjust - Black - 5 Lobe Style - Black - Five Lobe Style
|
1 |
superseded
|
| 19 |
MFR04914 |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
superseded
|
| 19 |
MFR04912 |
COLUMN (42.00 Inches) Stainless Steel
|
1 |
superseded
|
| 19 |
MFR04913 |
COLUMN (50.00 Inches) Stainless Steel
|
1 |
superseded
|
| 2 |
MHT05616 |
DECAL Top Cover MotorGuide Energy ET44 - 44 Lbs Thrust
|
1 |
disc.
|
| 20 |
MCK300072 |
MOUNT ASSEMBLY Complete - NOTE: See MotorGuide Transom And Bow Mounts Parts Manual 90-885199 For Service Parts Breakdown
|
1 |
superseded
|
| 21 |
MCK10004 |
FRICTION STRIP Plastic
|
1 |
superseded
|
| 22 |
MGR01901 |
BUSHING Battery Cable
|
1 |
superseded
|
| 23 |
MXT328072 |
CABLE ASSEMBLY Battery
|
1 |
disc.
|
| 24 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 25 |
MET397032 |
LOWER UNIT ASSEMBLY Complete (46# - 5/2 Speed) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 26 |
MET06009 |
DECAL MotorGuide
|
1 |
superseded
|
| 27 |
MAF12412 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II
|
1 |
superseded
|
| 28 |
MBR10201 |
PIN Prop Drive (.125 x 1.00)
|
1 |
superseded
|
| 29 |
MAR09901 |
PROP NUT
|
1 |
superseded
|
| 3 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
9 |
superseded
|
| 4 |
MAR03604 |
RETAINER Handle Without Stop
|
1 |
superseded
|
| 5 |
MBT372092 |
HANDLE ASSEMBLY
|
1 |
superseded
|
| 6 |
MBT05907 |
DECAL Indicator
|
1 |
superseded
|
| 7 |
MBT07002 |
GRIP Handle
|
1 |
superseded
|
| 8 |
MKT15003 |
SWITCH ASSEMBLY Rotary
|
1 |
superseded
|
| 9 |
MBR16103 |
TERMINAL Flag (Female #20-14)
|
2 |
superseded
|
