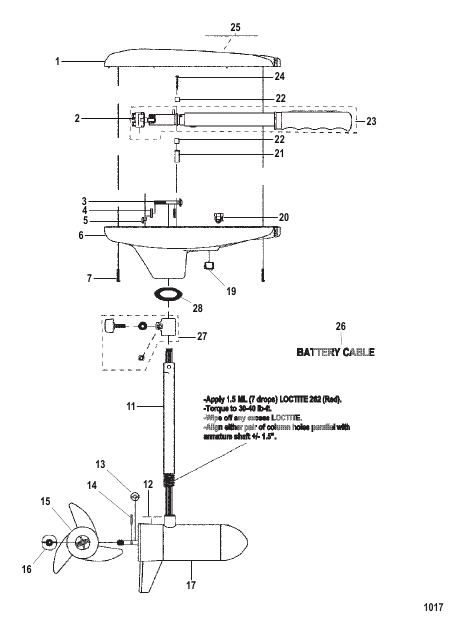

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
MAT053184 |
COVER Top
|
1 |
superseded
|
| 11 |
MT04911 |
COLUMN (30.00 Inches) Aluminum
|
1 |
superseded
|
| 11 |
MTT04908 |
COLUMN (30.00 Inches) Stainless Steel
|
1 |
disc.
|
| 11 |
MFR04914 |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
superseded
|
| 12 |
MAF06004 |
DECAL Whisper Guide Propulsion System Power Plus
|
1 |
superseded
|
| 13 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 14 |
MBR10201 |
PIN Prop Drive (.125 x 1.00)
|
1 |
superseded
|
| 15 |
MFF12403 |
PROPELLER 2 Blade Nylon - 3.0 Inch
|
1 |
superseded
|
| 16 |
MAR09901 |
PROP NUT
|
1 |
superseded
|
| 17 |
MHF397102 |
LOWER UNIT ASSEMBLY Complete (30# - 5/2 Speed) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 19 |
MFP02103 |
PLUG (.500)
|
1 |
disc.
|
| 2 |
MKT15002 |
SWITCH ASSEMBLY Rotary
|
1 |
superseded
|
| 20 |
MGR019031 |
GROMMET
|
1 |
superseded
|
| 21 |
MAT15504 |
BRACKET
|
1 |
superseded
|
| 22 |
MAR03601 |
CLAMP
|
1 |
superseded
|
| 23 |
MBT372072 |
HANDLE ASSEMBLY
|
1 |
superseded
|
| 24 |
MAR13301 |
SCREW (#8 x 1.375)
|
1 |
superseded
|
| 25 |
MKT05608 |
DECAL Top Cover
|
1 |
disc.
|
| 26 |
MBT328032 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 27 |
MAR15801 |
COLLAR ASSEMBLY Depth Adjust
|
1 |
superseded
|
| 28 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 3 |
MTT13401 |
BOLT
|
1 |
superseded
|
| 4 |
MTT17104 |
WASHER Curved
|
2 |
superseded
|
| 5 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 6 |
MAR004149 |
COVER Bottom
|
1 |
superseded
|
| 7 |
MLF14104 |
SCREW (#8 x 1.00)
|
6 |
superseded
|
