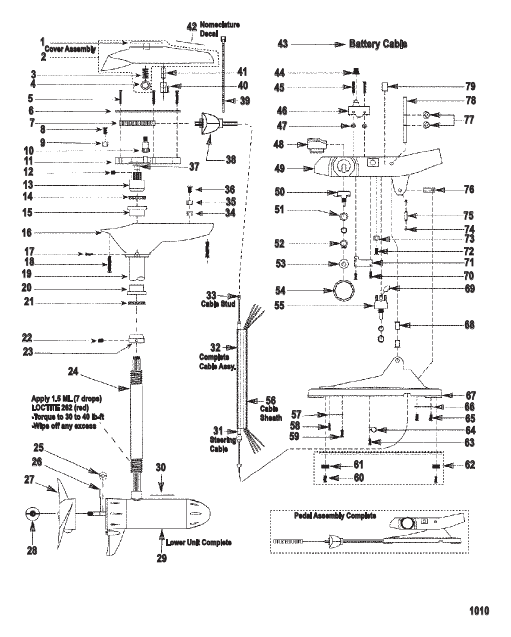

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
MAF078084 |
INDICATOR Red
|
1 |
superseded
|
| 10 |
MAF06901 |
GEAR Indicator
|
1 |
superseded
|
| 11 |
MAF12601 |
RACK GUIDE
|
1 |
superseded
|
| 12 |
MAF14201 |
SET SCREW (.250)
|
1 |
superseded
|
| 13 |
MAF39801 |
NUT ASSEMBLY Pinion
|
1 |
superseded
|
| 14 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter)
|
1 |
superseded
|
| 15 |
MAF00701 |
RETAINER CUP Bearing
|
1 |
superseded
|
| 16 |
MEF004167 |
COVER Bottom
|
1 |
superseded
|
| 17 |
MLF11103 |
RIVET (.125 x .375)
|
3 |
superseded
|
| 18 |
MAT14101 |
SCREW (#8 x .625) Stainless Steel
|
3 |
superseded
|
| 19 |
MAF16506 |
TUBE Outer (20.00 Inches)
|
1 |
superseded
|
| 19 |
MAF16510 |
TUBE Outer (30.00 Inches)
|
1 |
superseded
|
| 2 |
MEF05317H |
COVER ASSEMBLY Top
|
1 |
superseded
|
| 20 |
MFM00701 |
RETAINER CUP Bearing (1.546/1.556 Inside Diameter)
|
1 |
superseded
|
| 21 |
MFM00501 |
BEARING Ball (1.546 Outside Diameter)
|
1 |
superseded
|
| 22 |
MAF14301 |
SET SCREW (#10)
|
1 |
superseded
|
| 23 |
MAF00605B |
CONE Bearing
|
1 |
superseded
|
| 24 |
MAF04901 |
COLUMN (36.00 Inches) Stainless Steel
|
1 |
superseded
|
| 24 |
MAF04909 |
COLUMN (42.00 Inches) Stainless Steel
|
1 |
superseded
|
| 24 |
MAF04910 |
COLUMN (50.00 Inches) Stainless Steel
|
1 |
superseded
|
| 24 |
MAF04913 |
COLUMN (54.00 Inches) Stainless Steel
|
1 |
disc.
|
| 24 |
MAF04914 |
COLUMN (60.00 Inches) Stainless Steel
|
1 |
superseded
|
| 25 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 26 |
MBR10201 |
PIN Prop Drive (.125 x 1.00)
|
1 |
superseded
|
| 27 |
MAF12412 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II
|
1 |
superseded
|
| 28 |
MAR09901 |
PROP NUT
|
1 |
superseded
|
| 29 |
MDF397102 |
LOWER UNIT ASSEMBLY Complete (54# - 5/2 Speed) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 3 |
MAF01401 |
SPRING
|
1 |
superseded
|
| 30 |
MET06007 |
DECAL MotorGuide Hyper Drive
|
1 |
superseded
|
| 31 |
M9377 |
CABLE/STUD ASSEMBLY Control (63.00 Inches) Steering (63.00 Inches)
|
1 |
disc.
|
| 31 |
M9767 |
CABLE/STUD ASSEMBLY Control (69.00 Inches) Steering (69.00 Inches)
|
1 |
disc.
|
| 32 |
MAP327162 |
CABLE ASSEMBLY Control (63.00 Inches) Control (63.00 Inches)
|
1 |
superseded
|
| 32 |
MAP327182 |
CABLE ASSEMBLY Control (69.00 Inches) Control (69.00 Inches)
|
1 |
superseded
|
| 33 |
MAP14101C |
STUD Control Cable
|
1 |
disc.
|
| 34 |
MTT09803 |
PAL NUT
|
1 |
superseded
|
| 35 |
MFT16003 |
TERMINAL 4 Prong
|
1 |
superseded
|
| 36 |
MRT13303 |
SCREW (#10-32 x .500)
|
1 |
superseded
|
| 37 |
MAF02101 |
BUSHING Pinion Nut
|
1 |
superseded
|
| 38 |
MAP07102 |
GROMMET
|
1 |
superseded
|
| 39 |
MAF03001 |
TIE STRAP (.16 x 7/8.00 Inches)
|
1 |
superseded
|
| 4 |
MAF04601 |
CLIP
|
1 |
superseded
|
| 40 |
MAF394012 |
HOLDER ASSEMBLY Lamp
|
1 |
superseded
|
| 41 |
MAF09303 |
LAMP (12 Volt)
|
1 |
superseded
|
| 42 |
MDF05617 |
DECAL Top Cover
|
1 |
disc.
|
| 43 |
MEP328072 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 44 |
MKP15701 |
BOOT Micro Switch
|
1 |
superseded
|
| 45 |
MLP13501 |
SCREW (#6-32 x 1.50)
|
2 |
superseded
|
| 46 |
MAP15101 |
SWITCH ASSEMBLY Micro
|
1 |
superseded
|
| 47 |
MSP09802 |
NUT (#6-32)
|
2 |
superseded
|
| 48 |
MLP02601 |
BUTTON Micro Switch
|
1 |
superseded
|
| 49 |
MLP10103 |
PEDAL Foot
|
1 |
superseded
|
| 5 |
MXF13301 |
SCREW (#6 x 1.125)
|
6 |
superseded
|
| 50 |
MHF15001 |
SWITCH ASSEMBLY Rotary
|
1 |
superseded
|
| 51 |
MKP17101 |
LOCKWASHER (.375)
|
1 |
superseded
|
| 52 |
MLP04601 |
RING Retaining
|
1 |
superseded
|
| 53 |
MAK17102 |
WASHER Nylon
|
1 |
superseded
|
| 54 |
MLP08207 |
KNOB ASSEMBLY
|
1 |
superseded
|
| 55 |
MFP15303 |
SWITCH ASSEMBLY Toggle
|
1 |
superseded
|
| 56 |
MM900625 |
TUBING (25.00 Feet Bulk) Cable Cover - Cut As Required
|
AR |
disc.
|
| 57 |
MKP12301 |
PLATE Control Cable
|
1 |
superseded
|
| 58 |
MEK13501 |
SCREW (#6 Self Tap)
|
1 |
disc.
|
| 59 |
MAF13501 |
SCREW (#6 x .500)
|
1 |
superseded
|
| 6 |
MAF12701 |
COVER Rack Guide
|
1 |
superseded
|
| 60 |
MAF13501 |
SCREW (#6 x .500)
|
4 |
superseded
|
| 61 |
MKP02301 |
PAD Foot Pedal
|
4 |
superseded
|
| 62 |
MLP312315 |
WEIGHT PLATE ASSEMBLY
|
1 |
superseded
|
| 63 |
MAF13501 |
SCREW (#6 x .500)
|
1 |
superseded
|
| 64 |
MKP03601 |
P CLAMP (.250)
|
1 |
superseded
|
| 65 |
MIR13301 |
SCREW (#6 x .375)
|
2 |
superseded
|
| 66 |
MKP03602 |
PLATE Battery Cable
|
1 |
superseded
|
| 67 |
MLP00301 |
BASE Foot Pedal
|
1 |
superseded
|
| 68 |
MKP02101 |
BUSHING Pivot Shaft
|
2 |
superseded
|
| 69 |
MAT08001 |
SLEEVE Insulating
|
1 |
superseded
|
| 7 |
MAP12501 |
RACK
|
1 |
superseded
|
| 70 |
MAF13501 |
SCREW (#6 x .500)
|
1 |
superseded
|
| 71 |
MLP12303 |
PLATE Retainer
|
1 |
superseded
|
| 72 |
MRT13303 |
SCREW (#10-32 x .500)
|
1 |
superseded
|
| 73 |
MTT09803 |
PAL NUT
|
1 |
superseded
|
| 74 |
MFP04601 |
E RING
|
2 |
superseded
|
| 75 |
MAP10501C |
PIN Cable Pivot
|
1 |
superseded
|
| 76 |
MLP09101 |
PIVOT Cable
|
1 |
superseded
|
| 77 |
MBK04602 |
E RING
|
2 |
superseded
|
| 78 |
MLP10201 |
PIN Foot Pedal Rocker
|
1 |
superseded
|
| 79 |
MLP05709 |
DECAL Hi ByPass
|
1 |
superseded
|
| 8 |
MRT13303 |
SCREW (#10-32 x .500)
|
1 |
superseded
|
| 9 |
MFT16003 |
TERMINAL 4 Prong
|
1 |
superseded
|
