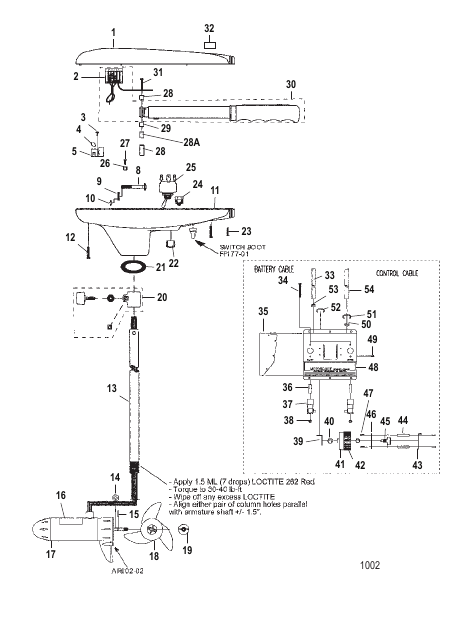

| # | Part Number | Description | Qty | Status |
|---|
| - |
MPP300022 |
FOOT PEDAL ASSEMBLY Complete
|
1 |
disc.
|
| - |
MFP17701 |
BOOT Toggle Switch (FP177-01)
|
1 |
superseded
|
| - |
MAR00202 |
ANODE Zinc (AR002-02)
|
1 |
superseded
|
| 1 |
MAT053184 |
COVER Top
|
1 |
superseded
|
| 10 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 11 |
MAR004149 |
COVER Bottom
|
1 |
superseded
|
| 12 |
MLF14104 |
SCREW (#8 x 1.00)
|
2 |
superseded
|
| 13 |
MFR04915 |
COLUMN (42.00 Inches) Stainless Steel
|
1 |
superseded
|
| 13 |
MFR04920 |
COLUMN (45.00 Inches) Stainless Steel
|
1 |
superseded
|
| 13 |
MFR04913 |
COLUMN (50.00 Inches) Stainless Steel
|
1 |
superseded
|
| 13 |
MFR04925 |
COLUMN (60.00 Inches) Stainless Steel
|
1 |
superseded
|
| 14 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 15 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
| 16 |
MET06004 |
DECAL Whisper Guide Propulsion System Power Plus
|
1 |
superseded
|
| 17 |
MUF397012 |
LOWER UNIT ASSEMBLY Complete (62# - Variable) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
disc.
|
| 18 |
MAF12407 |
PROPELLER 2 Blade Nylon - 3.5 Inch
|
1 |
superseded
|
| 19 |
MAR09901 |
PROP NUT
|
1 |
superseded
|
| 2 |
MAP02901 |
CONNECTOR Amp
|
1 |
superseded
|
| 20 |
MAR15801 |
COLLAR ASSEMBLY Depth Adjust
|
1 |
superseded
|
| 21 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 22 |
MFP02103 |
PLUG (.500)
|
1 |
disc.
|
| 23 |
MFR13501 |
SCREW (#8 x .500)
|
1 |
superseded
|
| 24 |
MFP02101 |
GROMMET
|
1 |
superseded
|
| 25 |
MFP15306 |
SWITCH ASSEMBLY Toggle 2 Positions (FWD/REV)
|
1 |
superseded
|
| 25 |
MFP15308 |
SWITCH ASSEMBLY Toggle (VAR/OFF)
|
1 |
superseded
|
| 26 |
MTT09803 |
PAL NUT
|
1 |
superseded
|
| 27 |
MRT13303 |
SCREW (#10-32 x .500)
|
1 |
superseded
|
| 28 |
MAT15504 |
BRACKET
|
2 |
superseded
|
| 28a |
MAT02201 |
BUSHING
|
1 |
disc.
|
| 29 |
MAR03602 |
CLAMP Handle Retainer
|
1 |
superseded
|
| 3 |
MXT14101 |
SCREW (#4 x .312)
|
1 |
disc.
|
| 30 |
MAR372112 |
HANDLE ASSEMBLY Steering
|
1 |
disc.
|
| 31 |
MRT13301 |
SCREW (#8 x 1.375)
|
1 |
superseded
|
| 32 |
MFR05611 |
DECAL Top Cover
|
1 |
superseded
|
| 33 |
MFP328032 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 34 |
MBK13503 |
SCREW
|
1 |
disc.
|
| 35 |
MFP004016 |
BASE
|
1 |
disc.
|
| 36 |
MM100711 |
SPACER
|
2 |
disc.
|
| 37 |
MFP14901 |
SWITCH ASSEMBLY
|
2 |
superseded
|
| 38 |
MBK09801 |
NUT
|
2 |
disc.
|
| 39 |
MFP15501B |
PLATE Switch Support
|
1 |
disc.
|
| 4 |
MAT08001 |
SLEEVE Insulating
|
1 |
superseded
|
| 40 |
MPP17101 |
WASHER Nylon
|
1 |
superseded
|
| 41 |
MAP05707 |
DECAL Rotary Knob
|
1 |
disc.
|
| 42 |
MAP08202 |
KNOB Rotary
|
1 |
superseded
|
| 43 |
MFP15502 |
PLATE Switch Support
|
1 |
disc.
|
| 44 |
MAP10202 |
POST Stand Off Switch
|
1 |
disc.
|
| 45 |
MAP16802 |
POTENTIOMETER ASSEMBLY
|
1 |
superseded
|
| 46 |
MAP01201B |
BUSHING
|
1 |
disc.
|
| 47 |
MBK13601 |
SCREW
|
1 |
superseded
|
| 48 |
MFP353034 |
COVER
|
1 |
disc.
|
| 49 |
MBK13501 |
SCREW
|
1 |
disc.
|
| 5 |
MJF15712 |
BOARD ASSEMBLY (24V) - NOTE: Part No Longer Available - Reference Service Bulletin 2004-02
|
1 |
disc.
|
| 50 |
MFP02101 |
GROMMET Control Cable
|
1 |
superseded
|
| 51 |
MAP04001 |
CLAMP
|
1 |
disc.
|
| 52 |
MAP04001 |
CLAMP
|
1 |
disc.
|
| 53 |
MFP04001 |
BUSHING Battery Cable
|
1 |
disc.
|
| 54 |
MFP327042 |
CABLE ASSEMBLY Control
|
1 |
disc.
|
| 8 |
MTT13401 |
BOLT
|
1 |
superseded
|
| 9 |
MTT17104 |
WASHER Curved
|
1 |
superseded
|
