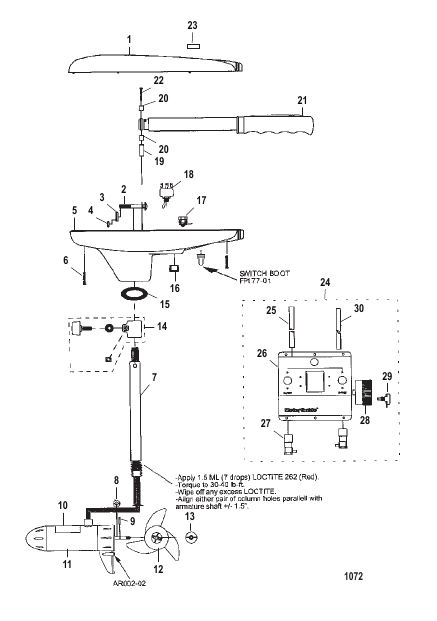

| # | Part Number | Description | Qty | Status |
|---|
| - |
MFP17701 |
BOOT Toggle Switch (FP177-01)
|
1 |
superseded
|
| - |
MAR00202 |
ANODE Zinc (AR002-02)
|
1 |
superseded
|
| 1 |
MCT053174 |
COVER Top
|
1 |
superseded
|
| 10 |
MAF06008 |
DECAL MotorGuide
|
1 |
disc.
|
| 11 |
MDF397102 |
LOWER UNIT ASSEMBLY Complete (54# - 5/2 Speed) - NOTE: See Lower Unit Assembly Section For Service Parts Breakdown
|
1 |
superseded
|
| 12 |
MAF12412 |
PROPELLER 3 Blade Nylon - 3.5 Inch - Machete II
|
1 |
superseded
|
| 13 |
MAR09901 |
PROP NUT
|
1 |
superseded
|
| 14 |
MAR15802 |
COLLAR ASSEMBLY Depth Adjust - Black/Black T Style Knob
|
1 |
superseded
|
| 15 |
MAT07901 |
SEAL Column
|
1 |
superseded
|
| 16 |
MFP02103 |
PLUG (.500)
|
1 |
disc.
|
| 17 |
MGR019031 |
GROMMET
|
1 |
superseded
|
| 18 |
MFP15306 |
SWITCH ASSEMBLY Toggle
|
1 |
superseded
|
| 19 |
MAT15504 |
BRACKET
|
1 |
superseded
|
| 2 |
MTT13401 |
BOLT
|
1 |
superseded
|
| 20 |
MAR03601 |
CLAMP
|
2 |
superseded
|
| 21 |
MAR372112 |
HANDLE ASSEMBLY Steering
|
1 |
disc.
|
| 22 |
MAR13301 |
SCREW (#8 x 1.375)
|
2 |
superseded
|
| 23 |
MDR05605 |
DECAL Top Cover
|
1 |
|
| 24 |
MGP300052 |
FOOT PEDAL ASSEMBLY Complete
|
1 |
disc.
|
| 25 |
MEP328042 |
CABLE ASSEMBLY Battery
|
1 |
superseded
|
| 26 |
MFP353034 |
COVER
|
1 |
disc.
|
| 27 |
MFP14901 |
SWITCH ASSEMBLY
|
2 |
superseded
|
| 28 |
MGP082028 |
DIAL Rotary
|
1 |
superseded
|
| 29 |
MHF15001 |
SWITCH ASSEMBLY Rotary
|
1 |
superseded
|
| 3 |
MTT17104 |
WASHER Curved
|
2 |
superseded
|
| 30 |
MGP327022 |
CABLE ASSEMBLY Control
|
1 |
disc.
|
| 4 |
MXT09802 |
LOCKNUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 5 |
MAR004178 |
COVER Bottom
|
1 |
superseded
|
| 6 |
MLF14104 |
SCREW (#8 x 1.00)
|
3 |
superseded
|
| 7 |
MFR04915 |
COLUMN (42.00 Inches) Stainless Steel
|
1 |
superseded
|
| 7 |
MFR04913 |
COLUMN (50.00 Inches) Stainless Steel
|
1 |
superseded
|
| 8 |
MAR17501 |
WASHER (.385 x .885 x .095) Nylon
|
1 |
superseded
|
| 9 |
MBR10202 |
PIN Prop Drive (.156 x 1.00)
|
1 |
superseded
|
