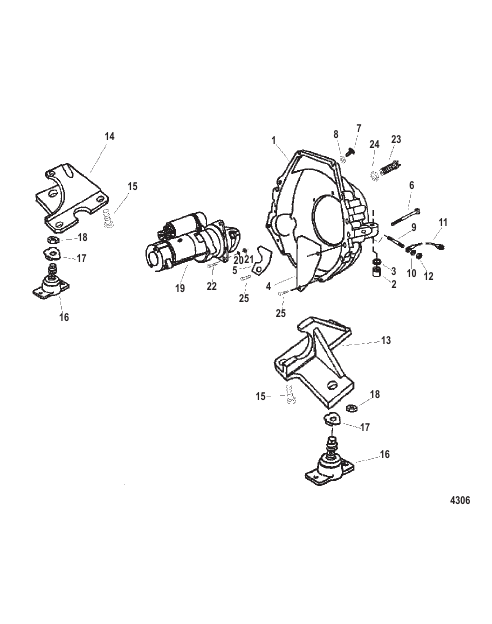

Starter Engine Mounts, and Flywheel Housing
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 853437A1 |
КОРПУС Маховик HOUSING Flywheel |
1 | discontinued |
| 10 | 20572 |
ШАЙБА (0.390 x 0.750 x 0.093) WASHER (.390 x .750 x .093) |
2 | |
| 11 | 62826A6 |
КАБЕЛЬ В СБОРЕ Заземление (13.00"), черный Заземление CABLE ASSEMBLY Ground (13.00 Inches) Black Ground |
1 | superseded |
| 12 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
2 | |
| 13 | 853453T |
КРЕПЛЕНИЕ Левый борт MOUNT Port |
1 | discontinued |
| 14 | 853472A1 |
КРЕПЛЕНИЕ Правый борт MOUNT Starboard |
1 | superseded |
| 15 | 853448 |
ВИНТ (M12 x 30) SCREW (M12 x 30) |
6 | discontinued |
| 16 | 853433T1 |
КРЕПЛЕНИЕ Двигатель MOUNT Engine |
2 | discontinued |
| 17 | 12657 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 18 | 853434 |
ГАЙКА NUT |
2 | discontinued |
| 19 | 805833T |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 2 | 865330A02 |
МОНТАЖНЫЙ КОМПЛЕКТ Резина MOUNT KIT Rubber |
1 | |
| 20 | 400248 |
СТОПОРНАЯ ШАЙБА (M10) LOCKWASHER (M10) |
1 | |
| 21 | 805794 |
ГАЙКА (M10) NUT (M10) |
1 | discontinued |
| 22 | 4010830 |
ВИНТ Шестигранный фланец (M10 x 15), нержавеющая сталь SCREW (M10 x 15) Hex Flange - Stainless Steel |
3 | |
| 23 | 805694 |
ЗАБОРНИК Магнитный Магнитный PICK UP Magnetic Magnetic |
1 | discontinued |
| 24 | 859126 |
ГАЙКА (.750-16) NUT (.750-16) |
1 | |
| 25 | 853442 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
3 | discontinued |
| 3 | 99322 |
ПРОСТАВКА SPACER |
2 | |
| 4 | 853441 |
КРЫШКА COVER |
1 | discontinued |
| 5 | 853440 |
ПЛАСТИНА Крышка PLATE Cover |
1 | discontinued |
| 6 | 853421 |
ВИНТ (M12 x 90) SCREW (M12 x 90) |
4 | discontinued |
| 7 | 4009760 |
ВИНТ (M12 x 60) SCREW (M12 x 60) |
2 | |
| 8 | 853239 |
ШАЙБА WASHER |
2 | discontinued |
| 9 | 806309 |
ШПИЛЬКА STUD |
2 | discontinued |
