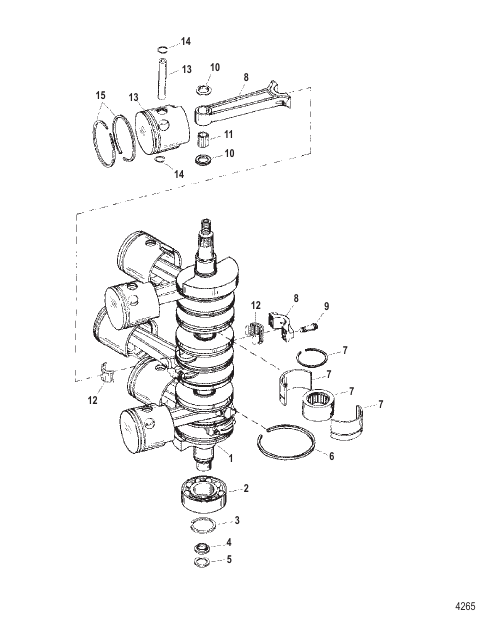

| # | Part Number | Description | Qty | Status |
|---|
| - |
858961A19 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
834980T3 |
CRANKSHAFT ASSEMBLY
|
1 |
|
| 10 |
877541 |
THRUST WASHER
|
12 |
superseded
|
| 11 |
822553 |
BEARING Needle
|
204 |
superseded
|
| 12 |
17514A1 |
BEARING KIT Needle Bearings
|
6 |
superseded
|
| 13 |
859562A9 |
PISTON KIT Standard - Port
|
3 |
|
| 13 |
859563A9 |
PISTON KIT Standard - Starboard
|
3 |
|
| 14 |
8320811 |
LOCK RING
|
12 |
|
| 15 |
877544A12 |
RING SET Piston - Upper And Lower - 12 Rings
|
1 |
|
| 2 |
67923T |
BEARING Ball Lower
|
1 |
|
| 3 |
67446 |
RING Retaining
|
1 |
|
| 4 |
54196A6 |
CARRIER ASSEMBLY
|
1 |
|
| 5 |
65800 |
PACKING Carrier
|
1 |
|
| 6 |
67377 |
RING Sealing
|
7 |
superseded
|
| 7 |
16756A6 |
BEARING KIT Crankshaft - Center Main
|
2 |
|
| 8 |
877853A2 |
CONNECTING ROD KIT
|
6 |
superseded
|
| 9 |
763491 |
SCREW (.312-24 x .875)
|
12 |
|
