| # | Part Number | Description | Qty | Status |
|---|
| - |
883298A1 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| - |
858961A19 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
878109T1 |

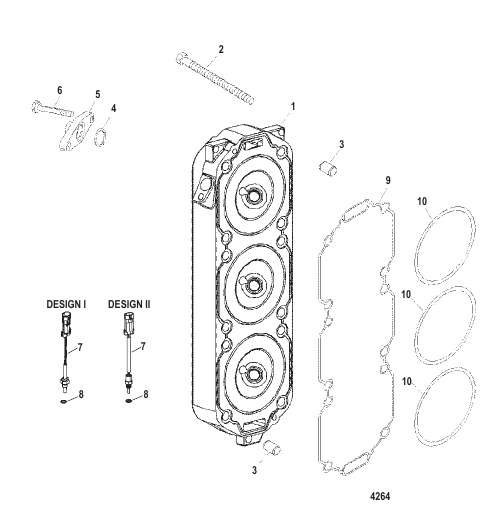

CYLINDER HEAD ASSEMBLY - Port
|
1 |
|
| 1 |
878110T1 |
CYLINDER HEAD ASSEMBLY - Starboard
|
1 |
|
| 10 |
8597721 |
SEAL Cylinder Bore
|
6 |
|
| 2 |
878217 |
SCREW (.375-16 x 2.750)
|
24 |
superseded
|
| 3 |
63779 |
PIN Dowel (.250 x .625)
|
4 |
|
| 4 |
35126 |
O-RING (.859 x .139)
|
2 |
|
| 5 |
8307371 |
COVER Thermostat
|
2 |
superseded
|
| 6 |
82130025 |
SCREW (M6 x 25)
|
4 |
|
| 7 |
858535 |
SENSOR ASSEMBLY Temperature - Design I [0E384500] THRU [0E418533]
|
2 |
superseded
|
| 7 |
885342001 |
SENSOR ASSEMBLY Temperature - Design II [0E418534] THRU [0E433481]
|
2 |
superseded
|
| 7 |
885342002 |
SENSOR ASSEMBLY Temperature - Design II [0E433482] & Up
|
2 |
superseded
|
| 8 |
627021 |
O-RING (.301 x .070) - Design I [0E384500] THRU [0E418533]
|
2 |
|
| 8 |
888814 |
O-RING (.351 x .072) - Design II [0E418534] THRU [0E433481]
|
2 |
superseded
|
| 8 |
896699 |
O-RING (1.78 mm x .08 mm) - Design II [0E433482] & Up
|
2 |
|
| 9 |
8584521 |
SEAL Cylinder Head
|
2 |
superseded
|
