| # | Part Number | Description | Qty | Status |
|---|
| 1 |
858961A19 |
POWERHEAD ASSEMBLY Complete
|
1 |
superseded
|
| 1 |

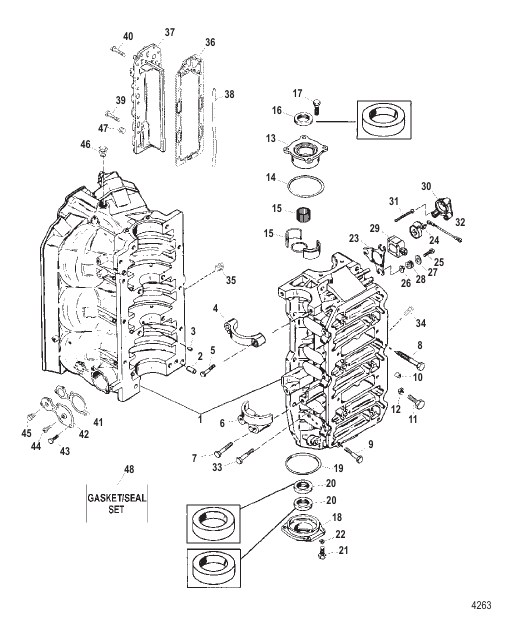

858961A17 |
CYLINDER BLOCK ASSEMBLY
|
1 |
|
| 10 |
26852 |
CAP Nylon
|
1 |
|
| 11 |
856832 |
SCREW (.250-20 x 1.750)
|
1 |
|
| 12 |
64015 |
NUT (.250-20)
|
1 |
|
| 13 |
832760T1 |
END CAP ASSEMBLY Upper
|
1 |
|
| 14 |
54029 |
O-RING (2.800 x .103)
|
1 |
|
| 15 |
16756A4 |
BEARING KIT Top Main
|
1 |
|
| 16 |
41953 |
SEAL Oil
|
1 |
|
| 17 |
881190 |
SCREW (.312-18 x 1.00)
|
4 |
|
| 18 |
7809T1 |
END CAP ASSEMBLY Lower
|
1 |
|
| 19 |
62700 |
O-RING (3.237 x .103)
|
1 |
|
| 2 |
43044 |
PIN Dowel - Without Hole (.375 x .625) Locating
|
2 |
|
| 20 |
41953 |
SEAL Oil
|
2 |
|
| 21 |
28636 |
SCREW (.250-20 x .750)
|
4 |
|
| 22 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
4 |
|
| 23 |
8538821 |
BRACKET Throttle Position Indicator Mount
|
1 |
|
| 24 |
8519371 |
LEVER Throttle Position Indicator
|
1 |
|
| 25 |
82130025 |
SCREW (M6 x 25) Bracket To Crankcase
|
3 |
|
| 26 |
856954 |
BUSHING
|
3 |
|
| 27 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 28 |
834985 |
GROMMET
|
3 |
superseded
|
| 29 |
83295211 |
INDICATOR Throttle Position
|
1 |
superseded
|
| 3 |
67296 |
PIN Dowel - Center Main
|
2 |
superseded
|
| 30 |
8582261 |
COVER
|
1 |
|
| 31 |
8508281 |
SCREW (#10-32 x 2.00)
|
3 |
|
| 32 |
878175 |
LINK ASSEMBLY Throttle Position Indicator
|
1 |
superseded
|
| 33 |
81893414 |
SCREW (M8 x 14)
|
1 |
|
| 34 |
37342 |
SCREW (#12-14 x .375)
|
1 |
disc.
|
| 35 |
328022 |
PLUG Pipe (.125-27) Brass
|
1 |
|
| 36 |
190506 |
GASKET Exhaust Divider Plate To Block
|
1 |
|
| 37 |
828343A4 |
PLATE KIT Exhaust Divider
|
1 |
superseded
|
| 38 |
814754 |
SEAL (12.50 Inches) Exhaust Divider
|
1 |
|
| 39 |
8263561 |
SCREW AND WASHER (.312-18 x 1.500)
|
17 |
|
| 4 |
8569661 |
COVER Top Starter Mounting
|
1 |
superseded
|
| 40 |
881190 |
SCREW (.312-18 x 1.00)
|
2 |
|
| 41 |
78690 |
GASKET
|
1 |
superseded
|
| 42 |
68729 |
COVER
|
1 |
superseded
|
| 43 |
28782 |
SCREW (.312-18 x .880) Stainless Steel
|
4 |
|
| 44 |
358811 |
SCREW (#6-32 x .250)
|
1 |
|
| 45 |
36382 |
FITTING (.250-18 x .62) Brass
|
1 |
|
| 46 |
860075 |
PLUG Pipe (.500-14)
|
1 |
|
| 47 |
428611 |
FITTING Pipe - Brass (.750-14)
|
1 |
superseded
|
| 48 |
883298A1 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| 5 |
828213 |
SCREW (.312-18 x 1.500) Hex Flange
|
2 |
|
| 6 |
76867 |
COVER Bottom Starter Mounting
|
1 |
|
| 7 |
828214 |
SCREW (.312-18 x 2.00) Hex Flange
|
2 |
|
| 8 |
66717 |
SCREW (.375-16 x 3.250)
|
8 |
|
| 9 |
74824 |
SCREW (.312-18 x 1.250)
|
6 |
|
