| # | Part Number | Description | Qty | Status |
|---|
| - |
883298A1 |
GASKET/SEAL SET Powerhead - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown
|
1 |
|
| - |
858961A19 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |

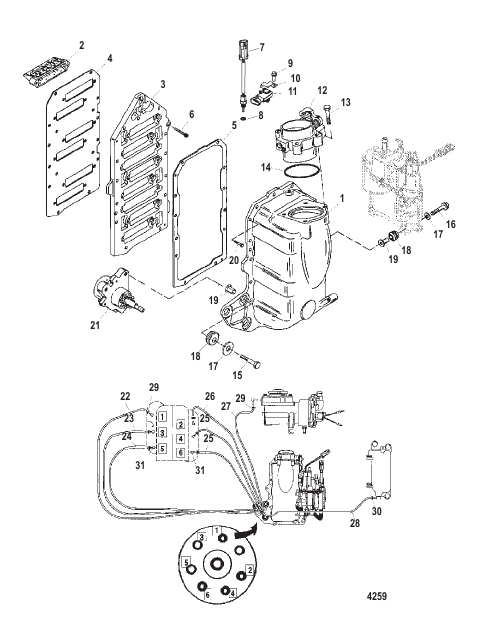

855633T26 |
AIR HANDLER ASSEMBLY Complete [0E418534] THRU [0E433689]
|
1 |
superseded
|
| 10 |
884522 |
BRACKET MAP Sensor
|
1 |
|
| 11 |
854445 |
SENSOR MAP
|
1 |
|
| 12 |
855422A1 |
THROTTLE BODY KIT
|
1 |
disc.
|
| 13 |
82130040 |
SCREW (M6 x 40)
|
4 |
|
| 14 |
855423 |
O-RING
|
1 |
|
| 15 |
81893430 |
SCREW (M8 x 30)
|
3 |
disc.
|
| 16 |
81893435 |
SCREW (M8 x 35)
|
3 |
|
| 17 |
817274 |
WASHER (.344 x 1.00 x .063) Stainless Steel
|
6 |
|
| 18 |
855362 |
GROMMET
|
6 |
superseded
|
| 19 |
855364 |
BUSHING
|
6 |
|
| 2 |
855952T3 |
REED BLOCK ASSEMBLY
|
6 |
|
| 20 |
883942 |
SCREW (M4 x 16)
|
2 |
|
| 21 |
857149T2 |
PUMP ASSEMBLY Oil
|
1 |
superseded
|
| 22 |
85606065 |
TUBING (38.00 Inches Bulk) Cut 24.00 Inches
|
1 |
superseded
|
| 23 |
85606065 |
TUBING (38.00 Inches Bulk) Cut 18.50 Inches
|
1 |
superseded
|
| 24 |
85606065 |
TUBING (38.00 Inches Bulk) Cut 15.50 Inches
|
1 |
superseded
|
| 25 |
85606065 |
TUBING (38.00 Inches Bulk) Cut 24.50 Inches
|
2 |
superseded
|
| 26 |
85606065 |
TUBING (38.00 Inches Bulk) Cut 27.00 Inches
|
1 |
superseded
|
| 27 |
85583466 |
HOSE (40.00 Inches Bulk) Cut 32.00 Inches
|
1 |
superseded
|
| 28 |
892830053 |
HOSE (24.00 Inches Braided)
|
1 |
|
| 29 |
69355 |
TIE STRAP (5.50 Inches)
|
AR |
superseded
|
| 3 |
855420A1 |
ADAPTER PLATE KIT
|
1 |
disc.
|
| 30 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 31 |
858805 |
CHECK VALVE
|
6 |
|
| 4 |
146973 |
GASKET Adaptor Plate To Block
|
1 |
|
| 5 |
8500581 |
GASKET Air Handler To Adaptor Plate
|
1 |
|
| 6 |
55715 |
SCREW (.250-20 x .880)
|
12 |
|
| 7 |
885342001 |
SENSOR ASSEMBLY Temperature
|
1 |
superseded
|
| 8 |
888814 |
O-RING (.351 x .072)
|
1 |
superseded
|
| 9 |
1993716 |
SCREW (M6 x 16)
|
1 |
|
