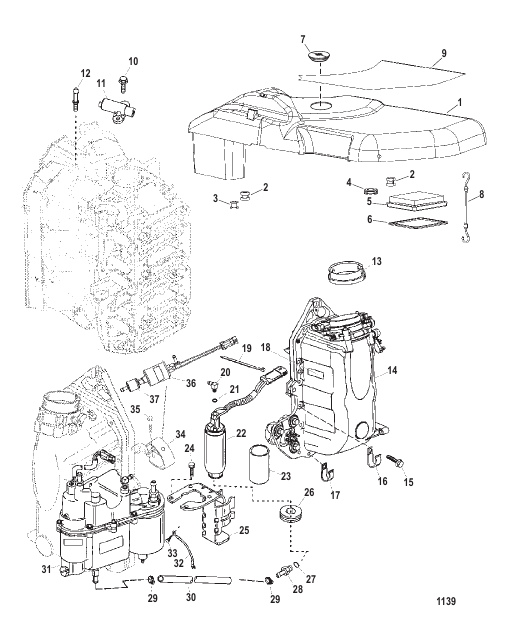

| # | Part Number | Description | Qty | Status |
|---|
| - |
858961A19 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
827325T11 |
COVER ASSEMBLY
|
1 |
disc.
|
| 10 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
2 |
|
| 11 |
828358 |
SENSOR Crank Position
|
1 |
superseded
|
| 12 |
8215832 |
PIN Special (1.5 Inches)
|
1 |
|
| 13 |
855613 |
GROMMET Throttle Body
|
1 |
|
| 14 |
855633T16 |
AIR HANDLER ASSEMBLY - NOTE: See Air Handler Components Section For Parts Breakdown [0E384500] THRU [0E418533]
|
1 |
disc.
|
| 14 |
855633T26 |
AIR HANDLER ASSEMBLY - NOTE: See Air Handler Components Section For Parts Breakdown [0E418534] THRU [0E433689]
|
1 |
superseded
|
| 14 |
855633T33 |
AIR HANDLER ASSEMBLY - NOTE: See Air Handler Components Section For Parts Breakdown [0E433690] & Up
|
1 |
|
| 15 |
817504 |
SCREW (.250-20 x 1.500) Stainless Steel
|
12 |
|
| 16 |
633003 |
CLAMP - Closed Style (1.14 Diameter) [0E384500] THRU [0E433689]
|
1 |
|
| 16 |
55098 |
J CLIP - Open Style (.500 Diameter) [0E433690] & Up
|
1 |
superseded
|
| 17 |
883080 |
J CLIP Open Style (.936 Diameter)
|
2 |
|
| 18 |
883190A01 |
DECAL EPA Label Information [0E384500] THRU [0E407099]
|
1 |
disc.
|
| 18 |
883190A02 |
DECAL EPA Label Information [0E407100] THRU [0E414099]
|
1 |
disc.
|
| 18 |
883190A03 |
DECAL EPA Label Information [0E414100] THRU [0E419999]
|
1 |
disc.
|
| 18 |
883190A04 |
DECAL EPA Label Information [0E420000] THRU [0E426999]
|
1 |
disc.
|
| 18 |
883190A05 |
DECAL EPA Label Information [0E427000] THRU [0E433153]
|
1 |
disc.
|
| 18 |
883190A06 |
DECAL EPA Label Information [0E433154] THRU [0E434673]
|
1 |
disc.
|
| 18 |
883190A08 |
DECAL EPA Label Information (2008) [0E434674] & Up
|
1 |
disc.
|
| 18 |
NSS |
NOT SOLD SEPARATE DECAL, EPA (2009 & Up) (Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)
|
1 |
|
| 19 |
61990 |
TIE STRAP (14.00 Inches)
|
1 |
|
| 2 |
821555 |
GROMMET (.310 x .620)
|
2 |
superseded
|
| 20 |
883559 |
FITTING Elbow
|
1 |
|
| 21 |
883551 |
O-RING
|
1 |
|
| 22 |
8558432 |
PUMP ASSEMBLY Fuel
|
1 |
superseded
|
| 23 |
803818 |
SLEEVE
|
1 |
disc.
|
| 24 |
82130016 |
SCREW (M6 x 16)
|
3 |
|
| 25 |
855756A1 |
BRACKET KIT
|
1 |
disc.
|
| 26 |
856928 |
GROMMET
|
1 |
disc.
|
| 27 |
880863 |
O-RING
|
1 |
|
| 28 |
883555 |
FITTING Straight
|
1 |
|
| 29 |
13791 |
CLAMP (15.7)
|
4 |
superseded
|
| 3 |
857101 |
GROMMET (.270 x .570)
|
1 |
|
| 30 |
883553 |
HOSE Molded Fuel Pump To Vapor Separator
|
1 |
disc.
|
| 31 |
NSS |
NOT SOLD SEPARATE Vapor Separator Assembly - NOTE: See Vapor Seperator Components Section For Parts Breakdown
|
1 |
|
| 32 |
88807A27 |
CABLE ASSEMBLY
|
1 |
disc.
|
| 33 |
82130010 |
SCREW (M6 x 10)
|
1 |
|
| 34 |
880757 |
BRACKET Fuel Pump Mount
|
1 |
disc.
|
| 35 |
1993735 |
SCREW (M6 x 35 MM)
|
1 |
|
| 36 |
880001A1 |
PUMP ASSEMBLY Fuel
|
1 |
superseded
|
| 37 |
884743 |
FILTER Fuel Pump
|
1 |
|
| 4 |
86361 |
GROMMET
|
1 |
|
| 5 |
853333T |
FILTER Air
|
1 |
|
| 6 |
853352 |
COVER Filter
|
1 |
disc.
|
| 7 |
89219001 |
PLUG Later Models
|
1 |
disc.
|
| 8 |
884208 |
CORD Tie Down (12.00 Inches) [0E398115] & Up
|
1 |
|
| 9 |
881957 |
DECAL Mercury Optimax 200 Jet Drive
|
1 |
|
