| # | Part Number | Description | Qty | Status |
|---|
| - |
832804A03 |
O-RING KIT
|
1 |
|
| 1 |
899113A03 |

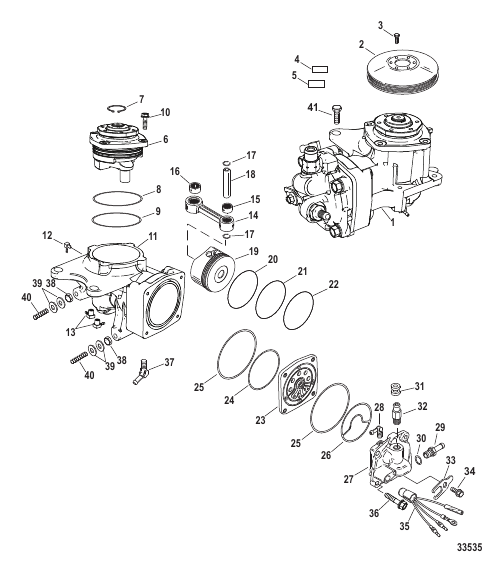

COMPRESSOR KIT Air - Design III [0E434623] & Up
|
1 |
superseded
|
| 10 |
85593920 |
SCREW (M6 x 20)
|
4 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Compressor Body
|
1 |
|
| 12 |
151331 |
FITTING 90 Degree
|
1 |
|
| 13 |
428641 |
FITTING Check Valve
|
2 |
|
| 14 |
833146T06 |
CONNECTING ROD ASSEMBLY
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Bearing
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE Bearing
|
1 |
|
| 17 |
8348101 |
RING Lock
|
2 |
|
| 18 |
NSS |
NOT SOLD SEPARATE Wrist Pin
|
1 |
|
| 19 |
NSS |
NOT SOLD SEPARATE Piston Assembly
|
1 |
|
| 2 |
8328233 |
PULLEY
|
1 |
superseded
|
| 20 |
NSS |
NOT SOLD SEPARATE Oil Ring
|
1 |
|
| 21 |
NSS |
NOT SOLD SEPARATE Oil Ring Scraper
|
1 |
|
| 22 |
NSS |
NOT SOLD SEPARATE Top Ring
|
1 |
|
| 23 |
835088A10 |
REED PLATE ASSEMBLY
|
1 |
|
| 24 |
832804 |
O-RING (2.739 x .070)
|
1 |
|
| 25 |
67207 |
O-RING (3.489 x .070)
|
2 |
|
| 26 |
828225 |
SEAL
|
1 |
|
| 27 |
835087A04 |
HEAD KIT Compressor
|
1 |
disc.
|
| 28 |
14868 |
FITTING
|
1 |
|
| 29 |
856744 |
FITTING
|
1 |
|
| 3 |
85593912 |
SCREW (M6 x 12)
|
6 |
|
| 30 |
831985 |
O-RING (.468 x .078)
|
1 |
|
| 31 |
855349002 |
GROMMET
|
1 |
|
| 32 |
8307534 |
FITTING (1.62 Inches) Straight
|
1 |
|
| 33 |
137151 |
RETAINER
|
1 |
|
| 34 |
81893414 |
SCREW (M8 x 14)
|
1 |
|
| 35 |
13536A14 |
SENSOR ASSEMBLY Temperature
|
1 |
|
| 36 |
82127335 |
SCREW (M8 x 35 MM)
|
4 |
|
| 37 |
851975 |
FITTING Elbow - 45 Degree - Brass (.125-27)
|
1 |
|
| 38 |
46356 |
NUT (.312-24)
|
2 |
|
| 39 |
854640 |
WASHER Special
|
4 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Decal - Assembly Instructions
|
1 |
|
| 40 |
858762001 |
STUD (.312-18/.312-24 x 4.190)
|
2 |
|
| 41 |
4010825 |
SCREW (M10 x 25) Hex Flange - Stainless Steel
|
2 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Decal - Manufacturing
|
1 |
|
| 6 |
828131A12 |
END CAP ASSEMBLY
|
1 |
superseded
|
| 7 |
NSS |
NOT SOLD SEPARATE Retaining Ring
|
1 |
|
| 8 |
67206001 |
O-RING
|
1 |
|
| 9 |
67206001 |
O-RING
|
1 |
|
