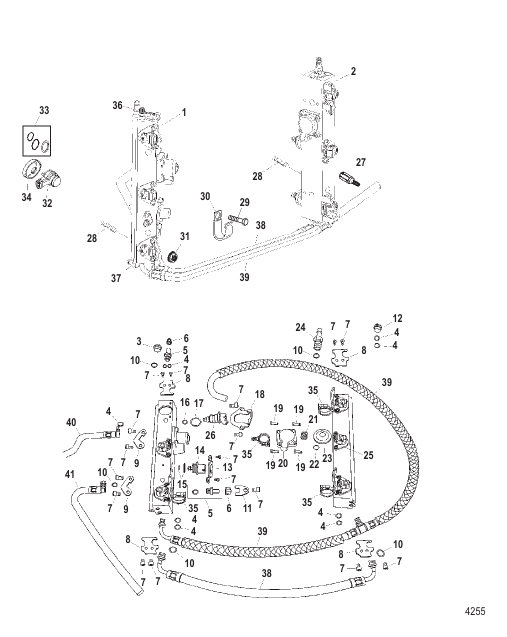

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
859516T5 |
FUEL RAIL ASSEMBLY Port
|
1 |
superseded
|
| 10 |
804532 |
O-RING KIT
|
1 |
|
| 11 |
880816 |
CLAMP Schrader Valve
|
1 |
superseded
|
| 12 |
804834 |
PLUG Fuel - Dual O Rings
|
1 |
|
| 13 |
880808 |
CLAMP Regulator
|
1 |
|
| 14 |
880807T |
REGULATOR Air Port
|
1 |
superseded
|
| 15 |
880809 |
O-RING KIT 1 Top And 1 Bottom
|
1 |
|
| 16 |
804529 |
O-RING KIT Contains 6 pcs (6 Per)
|
1 |
|
| 17 |
804530 |
O-RING KIT Contains 6 pcs (6 Per)
|
1 |
|
| 18 |
804831 |
CLAMP Injector - Top And Bottom
|
4 |
superseded
|
| 19 |
804526 |
SCREW PACKAGE (M5 x 16) (2 Per)
|
8 |
|
| 2 |
859517T5 |
FUEL RAIL ASSEMBLY Starboard
|
1 |
superseded
|
| 20 |
804535 |
COVER Pressure Tracker
|
1 |
superseded
|
| 21 |
804534 |
SPRING Pressure Tracker
|
1 |
|
| 22 |
804536 |
O-RING
|
1 |
|
| 23 |
804533 |
DIAPHRAGM ASSEMBLY
|
1 |
|
| 24 |
804836 |
FITTING
|
1 |
|
| 25 |
804522 |
CLAMP Center Injector
|
2 |
disc.
|
| 26 |
804841 |
INJECTOR Fuel
|
6 |
|
| 27 |
880120 |
SPACER
|
2 |
|
| 28 |
858778 |
STUD (M10 x 91)
|
4 |
superseded
|
| 29 |
98257 |
SCREW (.312-18 x .500)
|
1 |
|
| 3 |
804835 |
PLUG Air - Single O Ring
|
1 |
|
| 30 |
883080 |
J CLIP
|
1 |
|
| 31 |
826292 |
NUT (M10) Brass/Nickel Plated
|
2 |
|
| 32 |
883078A4 |
INJECTOR KIT Air [0E384500] THRU [0E434622]
|
6 |
superseded
|
| 32 |
883078A05 |
INJECTOR KIT Air [0E434623] & Up
|
6 |
superseded
|
| 33 |
804875 |
SEAL KIT Air Injectors
|
6 |
|
| 34 |
828694A1 |
WASHER ASSEMBLY Cupped - NOTE: Included With Cylinder Head Assembly
|
6 |
|
| 35 |
859376 |
CLIP
|
4 |
|
| 36 |
291112 |
FITTING Straight
|
1 |
|
| 37 |
996642 |
FITTING Elbow 90 Degree (.125-27 x .250) Nylon
|
1 |
|
| 38 |
804823 |
HOSE/FITTING ASSEMBLY Air Balance
|
1 |
disc.
|
| 39 |
883543 |
HOSE ASSEMBLY Fuel Inlet
|
1 |
disc.
|
| 4 |
804840 |
O-RING KIT
|
1 |
|
| 40 |
883544 |
HOSE ASSEMBLY Fuel Return
|
1 |
|
| 41 |
804824 |
HOSE/FITTING ASSEMBLY Air Bypass
|
1 |
disc.
|
| 5 |
883542 |
VALVE ASSEMBLY (.375 Inch Diameter) Schrader
|
2 |
superseded
|
| 6 |
NSS |
NOT SOLD SEPARATE Air Injector Cap - Metal
|
2 |
|
| 7 |
804525 |
SCREW PACKAGE (M5 x 8) (2 Per)
|
27 |
superseded
|
| 8 |
804830 |
CLAMP
|
4 |
|
| 9 |
804832 |
CLAMP
|
2 |
|
