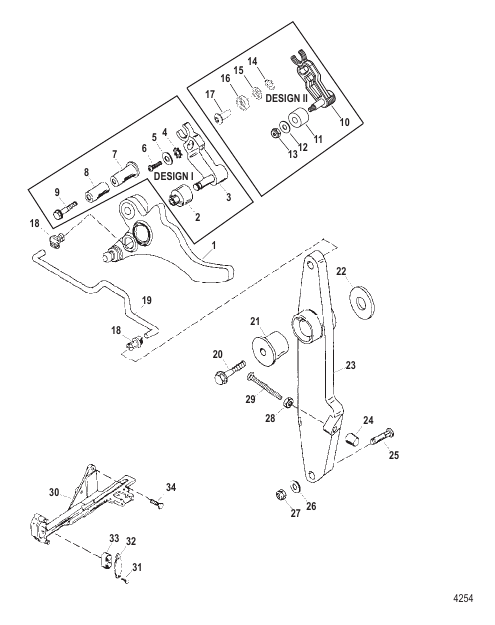

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8562211 |
CAM Throttle - NOTE: Also Component Of Air Hander Assembly 855633T16 And 855633T26 And 855633T33
|
1 |
|
| 10 |
850286A03 |
LEVER/ROLLER KIT Throttle - NOTE: Also Component Of Air Handler Assembly 855633T26 And 855633T33 [0E418534] & Up
|
1 |
|
| 11 |
889610 |
ROLLER [0E418534] & Up
|
1 |
superseded
|
| 12 |
56681 |
WASHER (.203 x .500 x .032) [0E418534] & Up
|
1 |
superseded
|
| 13 |
826709104 |
NUT (#8-32) Stainless Steel [OE418534] & Up
|
1 |
|
| 14 |
69432 |
LOCKWASHER External (#10) [0E418534] & Up
|
1 |
|
| 15 |
881992 |
WASHER Spool [0E418534] & Up
|
1 |
disc.
|
| 16 |
881991 |
WASHER Cupped [0E418534] & Up
|
1 |
disc.
|
| 17 |
889354 |
SCREW Special [0E418534] & Up
|
1 |
disc.
|
| 18 |
932481 |
BUSHING Swivel - NOTE: Also Component Of Air Hander Assembly
|
2 |
superseded
|
| 19 |
8508152 |
ROD Throttle Control
|
1 |
|
| 2 |
67748 |
ROLLER - NOTE: Also Component Of Air Hander Assembly 855633T16 [0E384500] THRU [0E418533]
|
1 |
|
| 20 |
818165 |
SCREW (.375-16 x 1.75)
|
1 |
|
| 21 |
55164 |
BUSHING
|
1 |
|
| 22 |
858959 |
SPACER
|
1 |
|
| 23 |
850389 |
LEVER Throttle
|
1 |
superseded
|
| 24 |
26852 |
CAP Nylon
|
1 |
|
| 25 |
42927 |
INSERT
|
1 |
|
| 26 |
35459 |
WASHER
|
1 |
|
| 27 |
8268336 |
NUT (M6)
|
1 |
superseded
|
| 28 |
64015 |
NUT (.250-20)
|
1 |
|
| 29 |
64022 |
SCREW (.250-20 x 2.125)
|
1 |
|
| 3 |
8502861 |
LEVER Throttle - NOTE: Also Component Of Air Hander Assembly 855633T16 - Part No Longer Available - Order Kit 850286A03 [OE384500] THRU [0E418533]
|
1 |
disc.
|
| 30 |
8142834 |
BRACKET Anchor
|
1 |
superseded
|
| 31 |
42975 |
DRIVE SCREW
|
2 |
|
| 32 |
98889 |
LATCH Control Cable
|
1 |
|
| 33 |
39519 |
CUP Barrel Retainer
|
1 |
|
| 34 |
28782 |
SCREW (.312-18 x .880) Stainless Steel
|
3 |
|
| 4 |
69432 |
LOCKWASHER External (#10) [0E384500] THRU [0E418533]
|
1 |
|
| 5 |
89302 |
WASHER (.203 x .406 x .040) [0E384500] THRU [0E418533]
|
1 |
|
| 6 |
40056107 |
SCREW (M5 x 16) [0E384500] THRU [0E418533]
|
1 |
|
| 7 |
856895 |
BUSHING [0E384500] THRU [0E418533]
|
1 |
|
| 8 |
856896 |
BEARING [0E384500] THRU [0E418533]
|
1 |
disc.
|
| 9 |
81893440 |
SCREW (M8 x 40) [0E384500] THRU [0E418533]
|
1 |
|
