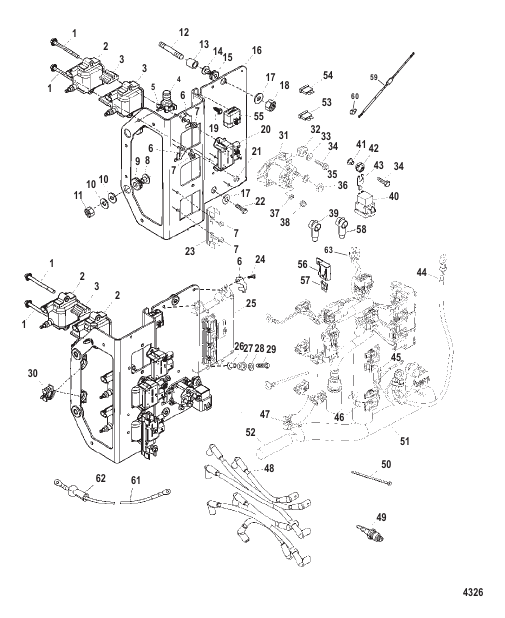

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
850898 |
SCREW (.250-20 x 3.250)
|
6 |
|
| 10 |
49436 |
WASHER
|
4 |
|
| 11 |
826365 |
NUT (M8)
|
2 |
|
| 12 |
8161944 |
STUD (M6 x 50)
|
1 |
superseded
|
| 13 |
19661 |
BUSHING
|
1 |
|
| 14 |
856954 |
BUSHING
|
2 |
|
| 15 |
834985 |
GROMMET
|
2 |
superseded
|
| 16 |
879967T1 |
PLATE Electrical Mounting
|
1 |
|
| 17 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
2 |
|
| 18 |
8268336 |
NUT (M6)
|
1 |
superseded
|
| 19 |
828991 |
CLIP Connector
|
1 |
superseded
|
| 2 |
856991A1 |
COIL KIT Ignition
|
6 |
|
| 20 |
859595T |
DRIVER Dual Coil
|
3 |
|
| 21 |
814101 |
NUT (.250-20) Stainless Steel
|
6 |
superseded
|
| 22 |
82130025 |
SCREW (M6 x 25)
|
1 |
|
| 23 |
8261151 |
CLAMP Connector
|
1 |
|
| 24 |
82129114 |
SCREW (M6 x 14)
|
1 |
|
| 25 |
85961034 |
PCM Propulsion Control Module [0E384500] THRU [0E397999]
|
1 |
superseded
|
| 25 |
85961040S |
PCM Propulsion Control Module [0E398000] THRU [0E414099]
|
1 |
superseded
|
| 25 |
85961003S |
PCM Propulsion Control Module [0E414100] THRU [0E418533]
|
1 |
superseded
|
| 25 |
85961007S |
PCM Propulsion Control Module [0E418534] THRU [0E420058]
|
1 |
superseded
|
| 25 |
88555716T |
PCM Propulsion Control Module [0E420059] THRU [0E434073]
|
1 |
superseded
|
| 25 |
89790637T |
PCM Propulsion Control Module [0E434074] & Up
|
1 |
|
| 26 |
856954 |
BUSHING
|
3 |
|
| 27 |
834985 |
GROMMET
|
3 |
superseded
|
| 28 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 29 |
82129125 |
SCREW (M6 x 25 MM)
|
3 |
|
| 3 |
850676F1 |
SPACER
|
6 |
|
| 30 |
858755 |
CLIP (1.00)
|
2 |
|
| 31 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)
|
1 |
|
| 32 |
822179 |
GROMMET
|
2 |
|
| 33 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
1 |
superseded
|
| 34 |
82129125 |
SCREW (M6 x 25 MM)
|
3 |
|
| 35 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 36 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 37 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 38 |
813938 |
CAP NUT (#10-32)
|
1 |
|
| 39 |
8500671 |
BOOT Insulator - Red [0E384500] THRU [0E407099]
|
1 |
|
| 4 |
859596 |
SENSOR (0-50 PSI) Water Pressure - Design I
|
1 |
superseded
|
| 4 |
881879A7 |
SENSOR KIT (0-50 PSI) Water Pressure - Design II
|
1 |
superseded
|
| 40 |
828151A1 |
RELAY ASSEMBLY Marked VF4-35F11-Z07 [0E384500] THRU [0E407099]
|
1 |
superseded
|
| 40 |
882751A1 |
RELAY ASSEMBLY Marked AZ973-1C-12DC4 [0E407100] & Up
|
1 |
superseded
|
| 41 |
818968 |
BUSHING
|
1 |
superseded
|
| 42 |
818967 |
GROMMET
|
1 |
|
| 43 |
828102 |
BRACKET
|
1 |
superseded
|
| 44 |
880771T1 |
CABLE ASSEMBLY (24.00 Inches) Red [0E384500] THRU [0E407099]
|
1 |
disc.
|
| 45 |
88807A16 |
CABLE ASSEMBLY (4.00 Inches) Black
|
1 |
|
| 46 |
853947 |
CLIP Conduit
|
1 |
|
| 47 |
828791 |
CLIP Conduit
|
1 |
|
| 48 |
821945A73 |
CABLE SET Hign Tension Six Cables [0E384500] THRU [0E407099]
|
1 |
superseded
|
| 48 |
884442A1 |
CABLE SET Hign Tension Six Cables [0E407100] & Up
|
1 |
|
| 49 |
8556721 |
SPARK PLUG - Design I - Platinum Wire Tip - Gap 1.1 mm (NGK - PZFR5F-11)
|
6 |
superseded
|
| 49 |
889597001 |
SPARK PLUG - Design II - Iridium Wire Tip - Gap .8 mm (NGK - IZFR5G)
|
6 |
superseded
|
| 5 |
858954 |
CLIP (.625) Water Pressure Sensor - Design I
|
1 |
|
| 5 |
883066 |
CLIP (.865) Water Pressure Sensor - Design II
|
1 |
|
| 50 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 51 |
881069T1 |
HARNESS ASSEMBLY [0E384500] THRU [0E407099]
|
1 |
|
| 51 |
881069T2 |
HARNESS ASSEMBLY [0E407100] & Up
|
1 |
|
| 52 |
828547353 |
CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 52 |
828547T1 |
CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 52 |
828547633 |
CONDUIT (.620 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 52 |
828547T |
CONDUIT (1.00 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 53 |
83296915 |
FUSE Mini - Blue - 15 Ampere [0E384500] THRU [0E407099]
|
1 |
superseded
|
| 53 |
8329695 |
FUSE Mini - Tan - 5 Ampere [0E407100] & Up
|
1 |
superseded
|
| 54 |
83296920 |
FUSE Mini - Yellow - 20 Ampere
|
4 |
superseded
|
| 55 |
858754 |
COVER Fuse
|
1 |
|
| 56 |
828054 |
COVER Fuse For 862646 Fuse [0E407100] & Up
|
1 |
|
| 57 |
862646 |
FUSE Tan - 5 Ampere [0E407100] & Up
|
1 |
|
| 58 |
8500673 |
BOOT Insulator - Yellow
|
1 |
|
| 59 |
878231A6 |
HARNESS ASSEMBLY Fuse - 100 Ampere [0E407100] & Up
|
1 |
|
| 6 |
8590881 |
CLIP Plug Mounting
|
3 |
|
| 60 |
66659 |
BOOT Insulator - Black
|
1 |
|
| 61 |
882829A1 |
CABLE ASSEMBLY Starter [0E407100] & Up
|
1 |
|
| 62 |
830233 |
BOOT Insulator - Red
|
1 |
|
| 63 |
832948A1 |
CONNECTOR ASSEMBLY 2 POS Male DDT
|
1 |
|
| 7 |
82129110 |
SCREW (M6 x 10)
|
7 |
|
| 8 |
8502341 |
BUSHING
|
2 |
|
| 9 |
833155 |
GROMMET
|
2 |
|
