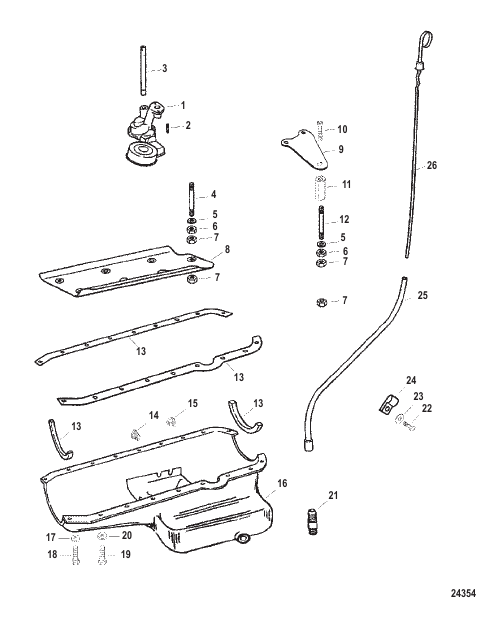

Oil Pan And Oil Pump
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 99386A96 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт двигателя GASKET SET Engine Overhaul |
1 | discontinued |
| 1 | 98337T6 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | discontinued |
| 10 | 849660 |
ВИНТ (0.375-24 x 1.00) SCREW (.375-24 x 1.00) |
1 | discontinued |
| 11 | 849530 |
ГАЙКА Специальный NUT Special |
1 | discontinued |
| 12 | 816254 |
ШПИЛЬКА Специальный STUD Special |
1 | discontinued |
| 13 | 848305 |
КОМПЛЕКТ ПРОКЛАДОК Маслосборник GASKET SET Oil Pan |
1 | discontinued |
| 14 | 36373 |
ПРОБКА (0.375-18), шестигранник – сталь PLUG (.375-18) Hex - Steel |
2 | superseded |
| 15 | 8154731 |
ПРОБКА Слив (0.875-14) PLUG Drain (.875-14) |
1 | discontinued |
| 16 | 817025T1 |
ПОДДОН Масло PAN Oil |
1 | discontinued |
| 17 | 20546 |
ШАЙБА (0.330 x 0.500 x 0.060) WASHER (.330 x .500 x .060) |
14 | discontinued |
| 18 | 55714 |
ВИНТ (7/8") (0.312-18 x 0.875) SCREW (7/8 In.) (.312-18 x .875) |
12 | discontinued |
| 18 | 54523 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
2 | discontinued |
| 19 | 55715 |
ВИНТ (0.250-20 x 0.880) SCREW (.250-20 x .880) |
2 | |
| 2 | 49108 |
ШПИЛЬКА STUD |
1 | superseded |
| 20 | 20028 |
ШАЙБА (0.265 x 0.437 x 0.060) WASHER (.265 x .437 x .060) |
2 | |
| 21 | 42277 |
ФИТИНГ FITTING |
1 | discontinued |
| 22 | 817505 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь SCREW (.250-20 x .620) Stainless Steel |
1 | |
| 23 | 846673 |
ШАЙБА (0.265 x 0.500 x 0.060), нержавеющая сталь WASHER (.265 x .500 x .060) Stainless Steel |
1 | |
| 24 | 822279 |
ЗАЖИМ Опора масляного трубопровода CLIP Oil Tube Support |
1 | discontinued |
| 25 | 847599 |
ТРУБА Масляный щуп TUBE Oil Dipstick |
1 | discontinued |
| 26 | 94010 |
ЩУП DIPSTICK |
1 | discontinued |
| 3 | 848511 |
ВАЛ SHAFT |
1 | discontinued |
| 4 | 816254 |
ШПИЛЬКА Специальный STUD Special |
6 | discontinued |
| 5 | 816258 |
ШАЙБА (0.500 x 0.875 x 0.120), специальный WASHER (.500 x .875 x .120) Special |
7 | discontinued |
| 6 | 816255 |
ГАЙКА (.500-20) Специальный NUT (.500-20) Special |
7 | discontinued |
| 7 | 816257 |
ГАЙКА Специальный NUT Special |
14 | discontinued |
| 8 | 8485431 |
ОТТЕКАТЕЛЬ МАСЛА WINDAGE TRAY |
1 | discontinued |
| 9 | 849529A1 |
КОМПЛЕКТ СКОБЫ Масляный насос BRACE KIT Oil Pump |
1 | discontinued |
