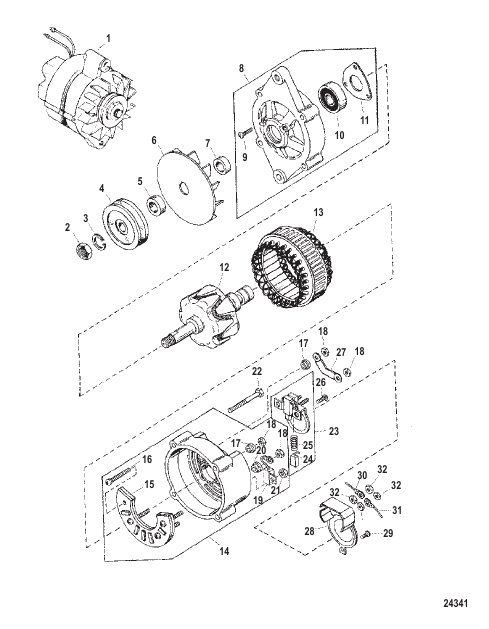

Alternator Assembly (Mando # AC-155603)
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8171191 |
ГЕНЕРАТОР В СБОРЕ Синий ALTERNATOR ASSEMBLY Blue |
1 | superseded |
| 10 | 811870 |
ПОДШИПНИК Шарик BEARING Ball |
1 | discontinued |
| 11 | 811871 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 12 | 811872 |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 13 | 811873T |
СТАТОР В СБОРЕ STATOR ASSEMBLY |
1 | discontinued |
| 14 | 811874T |
КРОНШТЕЙН В СБОРЕ Задний BRACKET ASSEMBLY Rear |
1 | discontinued |
| 15 | 811875T |
ВЫПРЯМИТЕЛЬ В СБОРЕ RECTIFIER ASSEMBLY |
1 | discontinued |
| 16 | 811876 |
ВИНТ SCREW |
1 | discontinued |
| 17 | 811877 |
КРЕПЕЖ HOLD |
2 | discontinued |
| 18 | 811878 |
ГАЙКА NUT |
4 | discontinued |
| 19 | 811879 |
КОНДЕНСАТОР В СБОРЕ CONDENSER ASSEMBLY |
1 | discontinued |
| 2 | 42768 |
ГАЙКА NUT |
1 | superseded |
| 20 | 811880 |
КРЕПЕЖ HOLD |
1 | discontinued |
| 21 | 811881 |
ГАЙКА NUT |
1 | discontinued |
| 22 | 42773 |
СКВОЗНОЙ БОЛТ THRU BOLT |
4 | discontinued |
| 23 | 811883T |
РЕГУЛЯТОР В СБОРЕ REGULATOR ASSEMBLY |
1 | |
| 24 | 811884 |
ЩЕТКА BRUSH |
2 | |
| 25 | 811885 |
ПРУЖИНА Щетка SPRING Brush |
2 | discontinued |
| 26 | 811886 |
УСТАНОВОЧНЫЙ ВИНТ SET SCREW |
2 | discontinued |
| 27 | 811887 |
КЛЕММА TERMINAL |
1 | discontinued |
| 28 | 811888 |
КРЫШКА COVER |
1 | discontinued |
| 29 | 811889 |
УСТАНОВОЧНЫЙ ВИНТ SET SCREW |
1 | discontinued |
| 3 | 42769 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 30 | 811890 |
ПРОВОД Красный Жила WIRE Red Lead |
1 | discontinued |
| 31 | 811891 |
ПРОВОД Фиолетовый Жила WIRE Purple Lead |
1 | discontinued |
| 32 | 811878 |
ГАЙКА NUT |
4 | discontinued |
| 4 | 42770 |
ШКИВ PULLEY |
1 | superseded |
| 5 | 811865 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 6 | 811866 |
ВЕНТИЛЯТОР FAN |
1 | discontinued |
| 7 | 811867 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 8 | 811868 |
КРОНШТЕЙН В СБОРЕ Передний BRACKET ASSEMBLY Front |
1 | discontinued |
| 9 | 811869 |
ВИНТ SCREW |
3 | discontinued |
