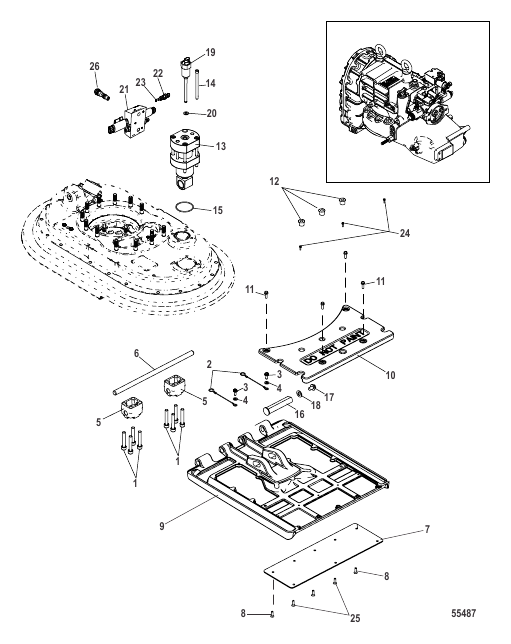

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0025384 |
SCREW (M10 x 60)
|
8 |
|
| 10 |
8M0035865 |
ANODE
|
1 |
disc.
|
| 11 |
88552620 |
SCREW (M8 x 20)
|
4 |
|
| 12 |
8M0035727 |
BUSHING M8 X 1.25
|
3 |
disc.
|
| 13 |
879148T47 |
CYLINDER
|
1 |
superseded
|
| 14 |
8M0027376 |
SCREW (M8 x 110)
|
4 |
superseded
|
| 15 |
63351 |
O RING (2.550 x .103)
|
1 |
|
| 16 |
8M0007595 |
PIN
|
1 |
|
| 17 |
4010816 |
SCREW (M10 x 16) Hex Flange - Stainless Steel
|
1 |
|
| 18 |
4002320 |
WASHER
|
1 |
|
| 19 |
8M0035810 |
SENSOR
|
1 |
superseded
|
| 2 |
879148T50 |
CABLE ASSEMBLY
|
2 |
|
| 20 |
831985 |
O-RING (.468 x .078)
|
1 |
|
| 21 |
897345T75 |
MANIFOLD
|
1 |
superseded
|
| 22 |
8M6001284 |
TRANSDUCER Steering Pressure Sensor
|
2 |
|
| 23 |
8M0024307 |
O-RING (8.92 x 1.83)
|
2 |
|
| 24 |
1993716 |
SCREW (M6 x 16)
|
3 |
|
| 25 |
8M0040323 |
SCREW (M8 x 27.5)
|
3 |
disc.
|
| 26 |
8M6002550 |
BANJO BOLT
|
2 |
|
| 3 |
1993716 |
SCREW (M6 x 16)
|
2 |
|
| 4 |
43328 |
WASHER
|
2 |
|
| 5 |
8M0007600 |
BLOCK Hinge
|
2 |
|
| 6 |
8M0007594 |
PIN Hinge
|
1 |
|
| 7 |
8M0007616 |
COVER
|
1 |
disc.
|
| 8 |
832838 |
SCREW (M6 x 20)
|
5 |
superseded
|
| 9 |
897345T23 |
TRIM TAB
|
1 |
disc.
|
