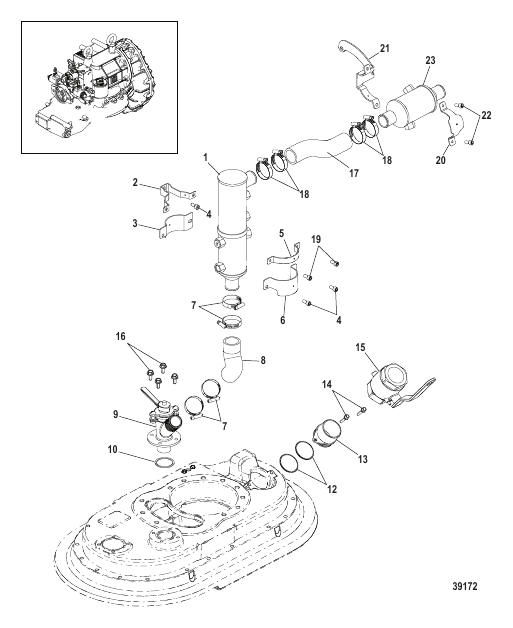

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 879148T59 | COOLER Oil | 1 | superseded |
| 10 | 864295 | O-RING (2.05 x .103) | 1 | |
| 11 | 8M0025635 | PLUG | 1 | |
| 12 | 822276 | O-RING (2.237 x .103) | 2 | |
| 13 | 8M0007539 | ADAPTER | 1 | |
| 14 | 81893414 | SCREW (M8 x 14) | 2 | |
| 15 | 8M0007542 | SEACOCK | 1 | superseded |
| 16 | 81893420 | SCREW (M8 x 20) | 4 | |
| 17 | 8M0037776 | HOSE | 1 | |
| 18 | 815504224 | CLAMP Worm Gear | 4 | |
| 19 | 4000327 | SCREW (M6 x 14) | 2 | |
| 2 | 8M0007715 | BRACKET | 1 | |
| 20 | 8M0025162 | CLAMP | 1 | |
| 21 | 8M0037735 | BRACKET | 1 | superseded |
| 22 | 4000327 | SCREW (M6 x 14) | 2 | |
| 23 | 897345T95 | COOLER | 1 | |
| 3 | 8M0007713 | BRACKET | 1 | |
| 4 | 4008916 | SCREW (M8 x 16) Stainless Steel | 3 | |
| 5 | 8M0007716 | BRACKET | 1 | |
| 6 | 8M0007714 | BRACKET | 1 | |
| 7 | 815504224 | CLAMP Worm Gear | 4 | |
| 8 | 8M0007711 | HOSE | 1 | |
| 9 | 8M0007538 | SEACOCK DUMP | 1 | |
| NS | 8M0037747 | DECAL No Step | 1 |
