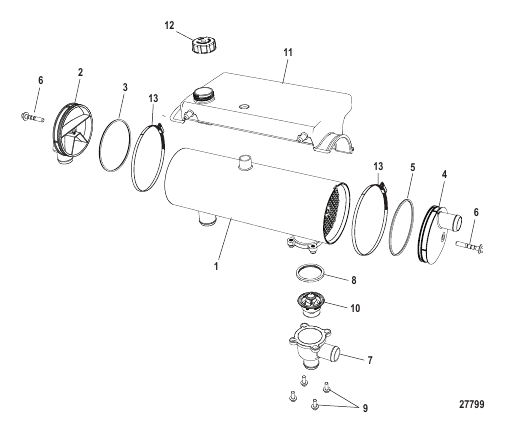

Cooling System Heat Exchanger
Parts (13)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M2000567 |
ТЕПЛООБМЕННИК HEAT EXCHANGER |
1 | discontinued |
| 10 | 866373 |
ТЕРМОСТАТ THERMOSTAT |
1 | discontinued |
| 11 | 879150T27 |
РЕЗЕРВУАР RESERVOIR |
1 | discontinued |
| 12 | 8M2000824 |
КОЛПАЧОК В СБОРЕ CAP ASSEMBLY |
1 | discontinued |
| 13 | 8M2001533 |
ЗАЖИМ (120-140 мм) CLAMP (120 - 140 mm) |
2 | superseded |
| 2 | 8M2001081 |
КОЛПАЧОК END CAP |
1 | discontinued |
| 3 | 32068 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.109 x 0.139) O-RING (4.109 x .139) |
1 | |
| 4 | 8M2000568 |
КОЛПАЧОК END CAP |
1 | discontinued |
| 5 | 32068 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.109 x 0.139) O-RING (4.109 x .139) |
1 | |
| 6 | 8M2000537 |
ВИНТ SCREW |
2 | discontinued |
| 7 | 8M2000531 |
КОРПУС Термостат HOUSING Thermostat |
1 | discontinued |
| 8 | 8071341 |
УПЛОТНЕНИЕ SEAL Thermostat |
1 | |
| 9 | 4006731 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 |
