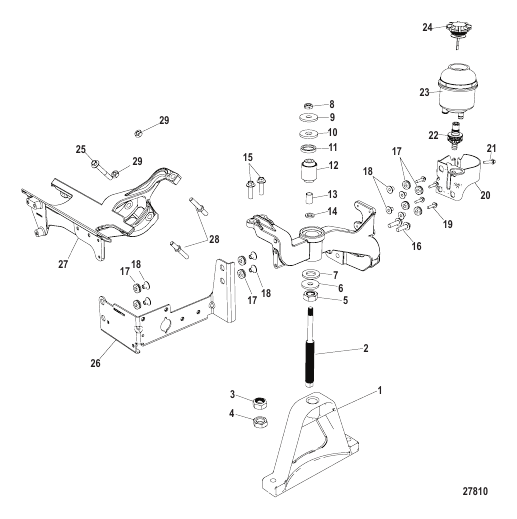

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
32778T |
SUPPORT
|
1 |
|
| 10 |
36104 |
WASHER Rubber
|
1 |
|
| 11 |
35903 |
SPACER
|
1 |
|
| 12 |
32833 |
MOUNT
|
1 |
|
| 13 |
32756 |
SPACER
|
1 |
|
| 14 |
30119 |
WASHER (.875 Inch Outside Diameter)
|
1 |
|
| 15 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
2 |
|
| 16 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
2 |
|
| 17 |
834985 |
GROMMET
|
4 |
superseded
|
| 18 |
856954 |
BUSHING
|
4 |
|
| 19 |
82130025 |
SCREW (M6 x 25)
|
4 |
|
| 2 |
36100T |
STUD
|
1 |
|
| 20 |
879150T30 |
BRACKET
|
1 |
disc.
|
| 21 |
82130025 |
SCREW (M6 x 25)
|
1 |
|
| 22 |
866571 |
FITTING
|
1 |
disc.
|
| 23 |
865264T |
RESERVOIR ASSEMBLY Oil - Power-Assisted Steering
|
1 |
superseded
|
| 24 |
865263 |
CAP Oil Reservoir - Brown
|
1 |
|
| 25 |
4010870 |
SCREW (M10 x 70) Hex Flange - Stainless Steel
|
1 |
|
| 26 |
8M2001737 |
BRACKET
|
1 |
disc.
|
| 27 |
866593T01 |
BRACKET
|
1 |
disc.
|
| 28 |
866693 |
STUD (M10 x 76)
|
2 |
disc.
|
| 29 |
40114 |
NUT (M10 x 1.5)
|
2 |
|
| 3 |
32882 |
NUT (.875-14)
|
1 |
|
| 4 |
47525 |
NUT (.875-14)
|
1 |
|
| 5 |
32882 |
NUT (.875-14)
|
1 |
|
| 6 |
36103 |
WASHER (Steel, 1.75 Inch Outside Diameter)
|
1 |
|
| 7 |
32638 |
WASHER Rubber
|
1 |
|
| 8 |
82671317 |
NUT (.500-20)
|
1 |
|
| 9 |
36103 |
WASHER (Steel, 1.75 Inch Outside Diameter)
|
1 |
|
