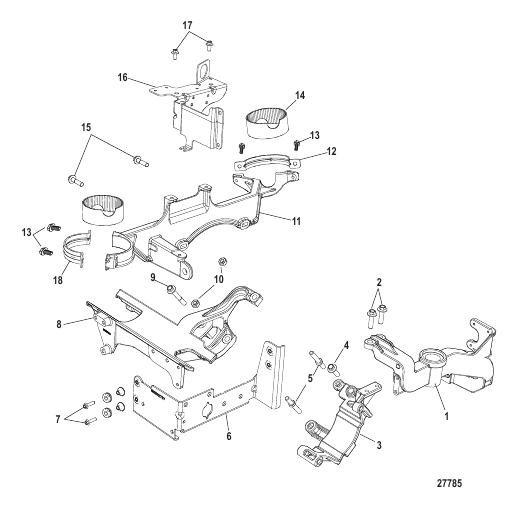

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
866578T01 |
BRACKET
|
1 |
disc.
|
| 10 |
40114 |
NUT (M10 x 1.5)
|
2 |
|
| 11 |
866819T01 |
BRACKET Exhaust Cross-Over
|
1 |
disc.
|
| 12 |
8M2001157 |
BRACKET
|
1 |
disc.
|
| 13 |
4010716 |
SCREW (M8 x 16)
|
4 |
|
| 14 |
8M2001799 |
PAD
|
2 |
disc.
|
| 15 |
4010840 |
SCREW (M10 x 40) Hex Flange - Stainless Steel
|
2 |
|
| 16 |
866349T |
BRACKET ECM
|
1 |
disc.
|
| 17 |
4010716 |
SCREW (M8 x 16)
|
3 |
|
| 18 |
8M2001156 |
BRACKET
|
1 |
disc.
|
| 2 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
2 |
|
| 3 |
866325T01 |
BRACKET Alternator
|
1 |
disc.
|
| 4 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
1 |
|
| 5 |
866693 |
STUD (M10 x 76)
|
2 |
disc.
|
| 6 |
8M2001737 |
BRACKET Circuit Breaker/Luber Bottle
|
1 |
disc.
|
| 7 |
4010725 |
SCREW (M8 x 25)
|
2 |
|
| 8 |
866593T01 |
BRACKET Heat Exchanger
|
1 |
disc.
|
| 9 |
4010870 |
SCREW (M10 x 70) Hex Flange - Stainless Steel
|
1 |
|
