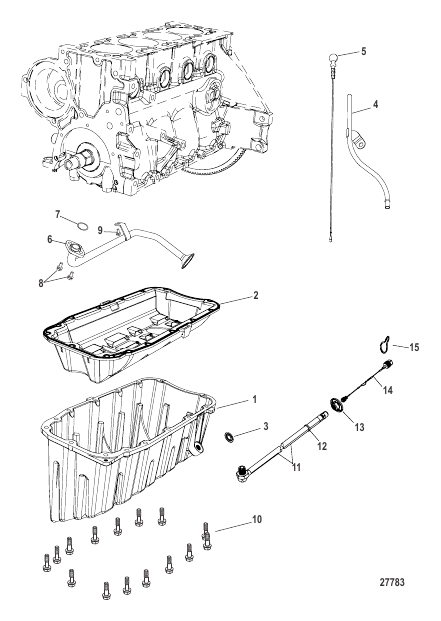

Cylinder Block Oil Pan
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 866600A02 |
ПОДДОН В СБОРЕ Масло PAN ASSEMBLY Oil |
1 | discontinued |
| 10 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
15 | |
| 11 | 865277 |
РУКАВ HOSE |
1 | |
| 12 | 863481 |
ЗАЖИМ CLAMP |
1 | |
| 13 | 862777 |
ФЛАНЕЦ FLANGE |
1 | |
| 14 | 862827 |
ТРОС В СБОРЕ TETHER ASSEMBLY |
1 | |
| 15 | 805524 |
ЗАЖИМ CLIP |
1 | |
| 2 | 8M2000607 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 3 | 49955 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 4 | 866603T |
ТРУБКА ИЗМЕРИТЕЛЬНОГО ЩУПА DIPSTICK TUBE |
1 | discontinued |
| 5 | 8M2004211 |
УКАЗАТЕЛЬ GAUGE |
1 | discontinued |
| 6 | 8M2004218 |
ТРУБА TUBE |
1 | discontinued |
| 7 | 8M2001868 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.612 x 0.103-114) O-RING (.612 x .103-114) |
1 | discontinued |
| 8 | 8M2001651 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | discontinued |
| 9 | 85593912 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
1 |
